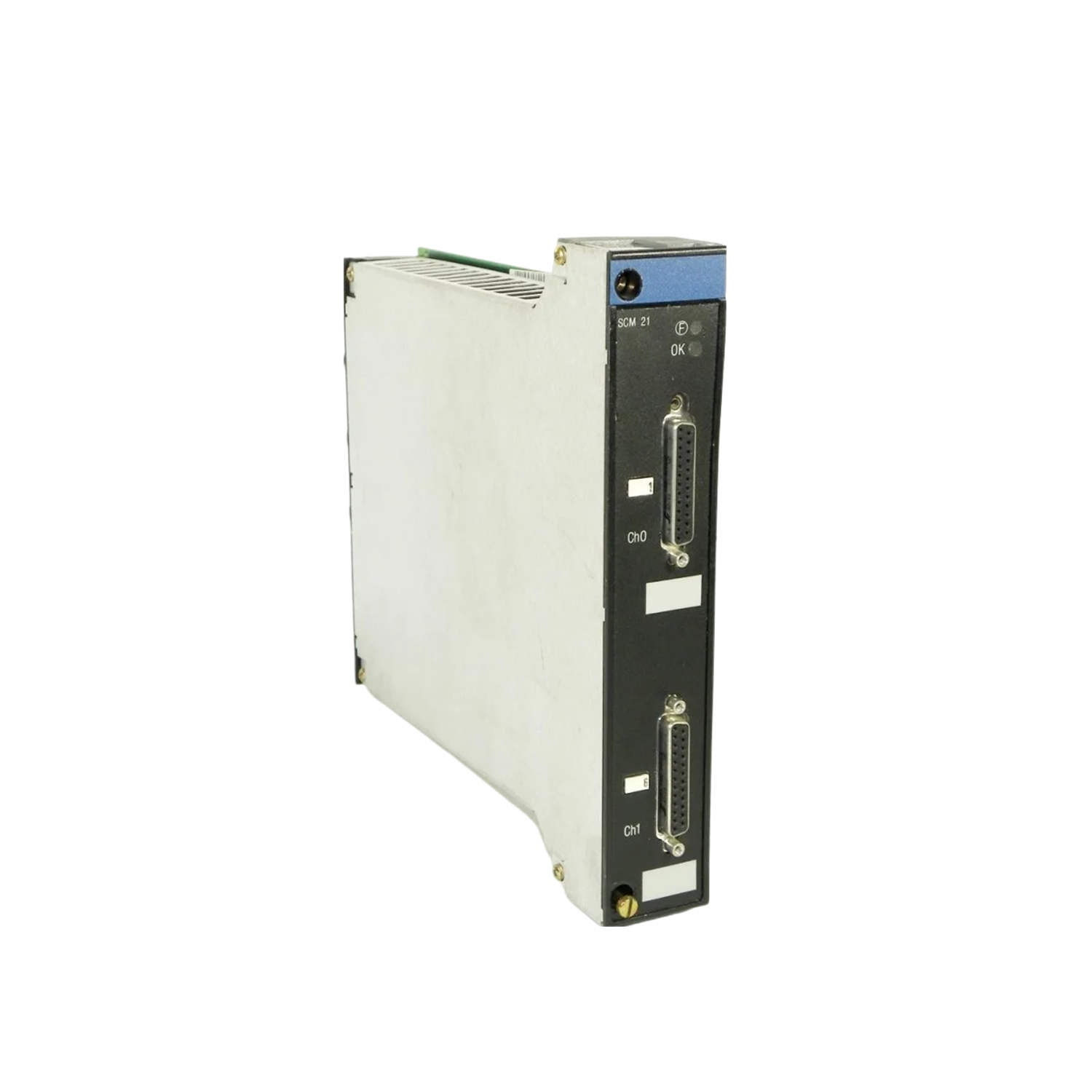

TSXSCM2116
Schneider Electric
Overview
The TSXSCM2116 is a Modicon in the Modicon range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a modicon, the TSXSCM2116 is intended for deployment in panel-based control cabinets and machine enclosures where the Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0 to 55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 55 °C); do not exceed it during commissioning or in enclosed panels without airflow. Avoid condensation — the rated humidity is 5 to 95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXSCM2116, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Check live stock, lead time and request a quote for TSXSCM2116 (opens in a new tab)
Frequently Asked Questions
What is the TSXSCM2116?
The TSXSCM2116 is a modicon in the Modicon range from Schneider Electric. It is described by the manufacturer as: Modicon.
What are the key technical ratings of the TSXSCM2116?
Its published highlights include operating temperature 0 to 55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXSCM2116 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXSCM2116 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXSCM2116?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXSCM2116 from Schneider Electric serves as a dedicated communication module, facilitating the integration and connectivity in Modicon systems. This module supports RS232 IS/UTWAY HD/UNITE communication protocols and is built for reliable performance across various environments.
Description
| Note | The TSXSCM2116 is a communication module developed by Schneider Electric, specifically designed for Modicon systems. This compact device measures 100 mm in width, 225 mm in height, and 235 mm in depth, translating to a physical size of about 4 inches by 8.9 inches by 9.2 inches, respectively. Weighing in at 1.162 kg (approximately 2.562 lbs), the module is built to provide robust performance throughout its operational life. This communication module utilizes RS232 IS/UTWAY HD/UNITE protocols, ensuring efficient data transfer and connectivity. Operating within a temperature range of 0 to 55 °C, the TSXSCM2116 ensures reliable performance in a variety of conditions. During transportation, it can endure temperatures from -40 °C to 70 °C, ensuring that it remains functional even in extreme conditions. When stored, the device can maintain integrity in temperatures ranging from -25 °C to 55 °C. The module is also designed to operate in environments with relative humidity levels between 5 and 95 %, provided there is no condensation present. This variety of environmental tolerances makes the TSXSCM2116 suitable for diverse industrial applications, supporting reliable communication within automated systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
