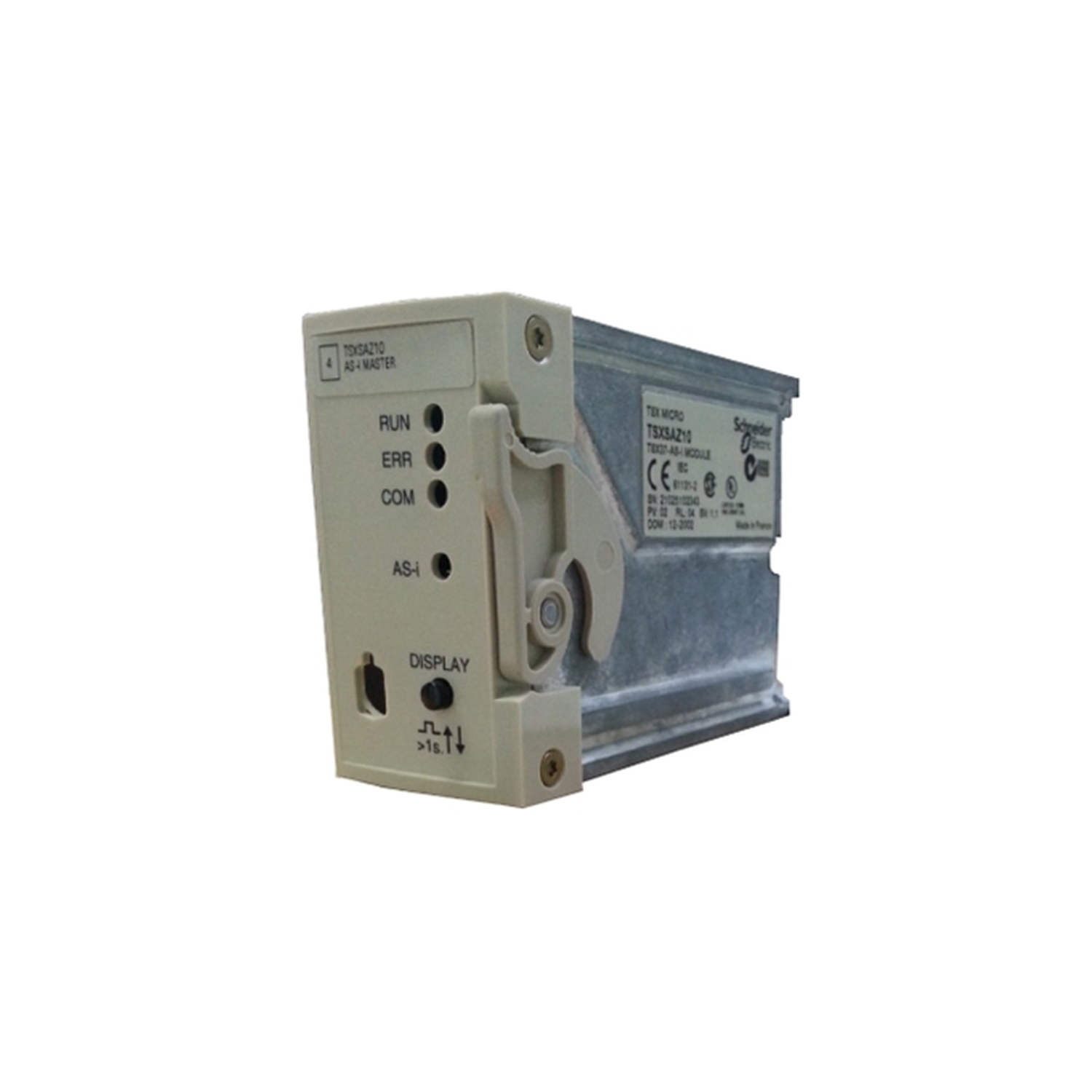

TSXSAZ10

Schneider Electric

AI-generated · verify with manufacturerLast reviewed 2026-09-28

Overview

The TSXSAZ10 is an AS-Interface master module in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.

Application & Technical Notes

As an as-interface master module, the TSXSAZ10 is intended for deployment in panel-based control cabinets and machine enclosures where the Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.

Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.

Maintenance & Diagnostics

Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 5% to 95%, non-condensing; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.

Sourcing & Procurement

When sourcing the TSXSAZ10, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.

Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.

Check live stock, lead time and request a quote for TSXSAZ10 (opens in a new tab)

Frequently Asked Questions

What is the TSXSAZ10?

The TSXSAZ10 is an as-interface master module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: AS-Interface master module.

What are the key technical ratings of the TSXSAZ10?

Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.

How is the TSXSAZ10 mounted or installed?

Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.

Is the TSXSAZ10 compatible with my controller?

It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.

What should I check before buying the TSXSAZ10?

Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.

Specifications

The Schneider Electric TSXSAZ10 is designed as an AS-Interface master module for integration within the TSX Micro PLCs series. With a capacity to manage up to 31 server devices, it enables seamless communication and control in automation setups. It handles a total of 4 discrete inputs and 4 discrete outputs, facilitating straightforward I/O management.

Complementary

Range Compatibility	AS-Interface cabling system Actuator sensor interface profile [AS-i] M2 AS-i version V1 Addressing Standard
Number of server device(s)	31, standard Type of connectable interfaces Discrete I/Os (4I/4O)
Electrical connection	Terminal block AS-Interface line
Supply	Via power supply integrated into the host platform of the module

Environment

Product Certifications	AS-Interface No 12001
Standards	IEC 60068-2-6, Fc tests IEC 60068-2-27, Ea tests IEC 61131-2
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
IP Degree of Protection	IP20

Ordering and shipping details

Category	US1PC1422556
Discount Schedule	PC14 GTIN 3389110738070
Returnability	No

Packing Units

Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	2.2 in (5.5 cm)
Package 1 Width	2.2 in (5.7 cm)
Package 1 Length	10.04 in (25.5 cm)
Package weight(Lbs)	11.4 oz (324.0 g)

Description

Note	The TSXSAZ10 from Schneider Electric acts as an AS-Interface master module in the TSX Micro PLCs series. It provides essential connectivity for automation systems utilizing the AS-Interface cabling framework. The module can address a maximum of 31 devices, making it effective for medium-sized setups. With 4 discrete inputs and 4 discrete outputs, it easily accommodates a range of control and signaling tasks. Designed with an IP20 rating, this unit is best suited for environments where direct exposure to dust and moisture is limited. It functions within an operating temperature spectrum of 0 to 60 degrees Celsius, ensuring stability in various conditions. In terms of storage, it withstands lower temperatures down to -25 degrees Celsius and can tolerate up to 70 degrees Celsius. The humidity range for operational effectiveness is generous, from 5% to 95% relative humidity, provided that conditions remain non-condensing. This module is powered from the host platform, streamlining installation and reducing the need for external power supplies, enhancing system integration and efficiency. Overall, the TSXSAZ10 serves as a reliable component in enhancing AS-Interface setups, combining flexibility and ease of use.

Note

The TSXSAZ10 from Schneider Electric acts as an AS-Interface master module in the TSX Micro PLCs series. It provides essential connectivity for automation systems utilizing the AS-Interface cabling framework. The module can address a maximum of 31 devices, making it effective for medium-sized setups. With 4 discrete inputs and 4 discrete outputs, it easily accommodates a range of control and signaling tasks. Designed with an IP20 rating, this unit is best suited for environments where direct exposure to dust and moisture is limited. It functions within an operating temperature spectrum of 0 to 60 degrees Celsius, ensuring stability in various conditions. In terms of storage, it withstands lower temperatures down to -25 degrees Celsius and can tolerate up to 70 degrees Celsius. The humidity range for operational effectiveness is generous, from 5% to 95% relative humidity, provided that conditions remain non-condensing. This module is powered from the host platform, streamlining installation and reducing the need for external power supplies, enhancing system integration and efficiency. Overall, the TSXSAZ10 serves as a reliable component in enhancing AS-Interface setups, combining flexibility and ease of use.

Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
