TSXRKY8EX
Schneider Electric
Overview

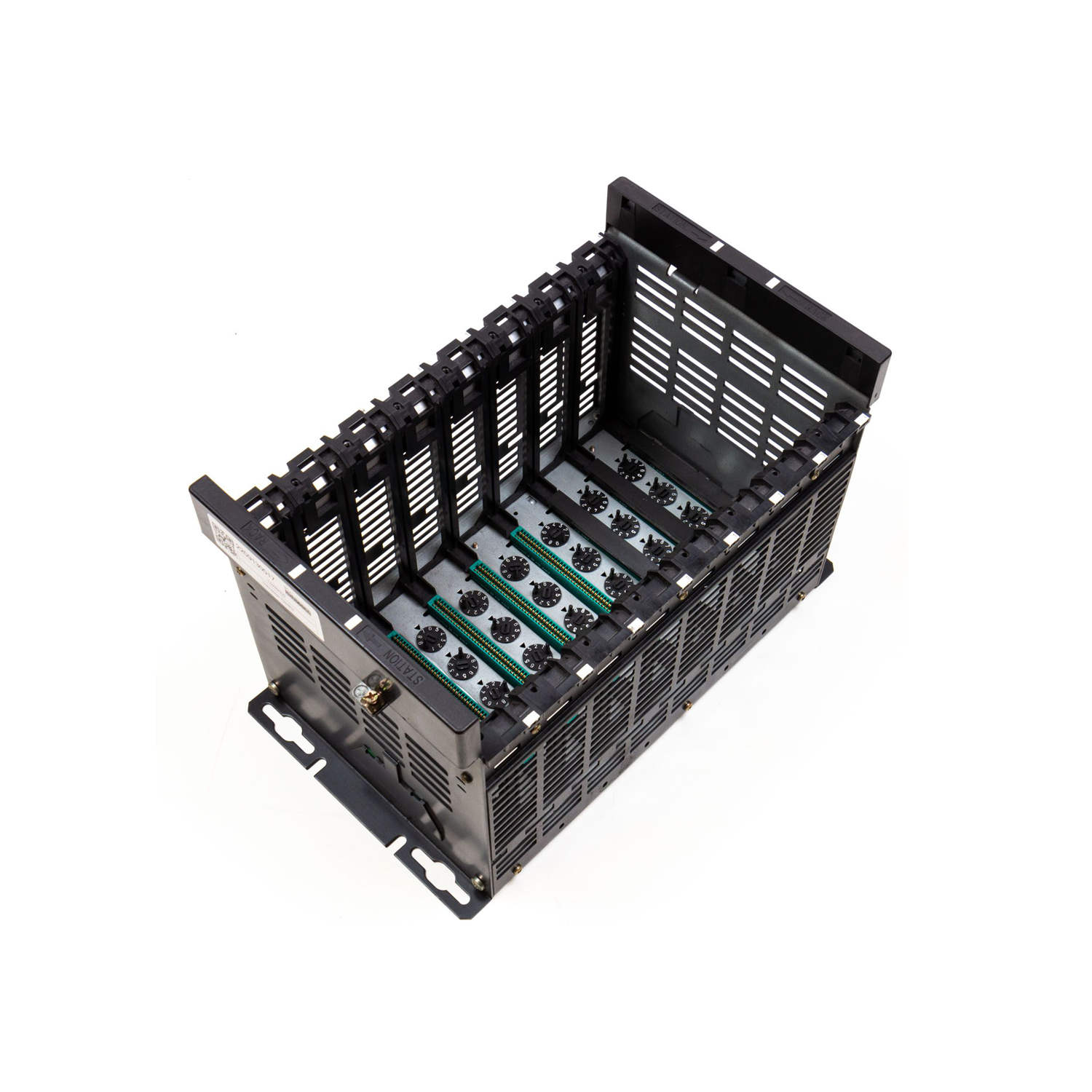

The TSXRKY8EX is an Extendable rack in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As an extendable rack, the TSXRKY8EX is intended for deployment in panel-based control cabinets and machine enclosures where the Modicon Premium / TSX equipment is installed. It mechanically and electrically unifies the controller, power supply and I/O modules, providing the backplane bus and mounting structure.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C), suitable for panel mounting mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Seat every module firmly on the backplane, observe module order where required, and check the bus connector integrity. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXRKY8EX, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Check live stock, lead time and request a quote for TSXRKY8EX (opens in a new tab)
Frequently Asked Questions
What is the TSXRKY8EX?
The TSXRKY8EX is an extendable rack in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Extendable rack.
What are the key technical ratings of the TSXRKY8EX?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXRKY8EX mounted or installed?
It uses Suitable for panel mounting. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the TSXRKY8EX compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXRKY8EX?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric TSXRKY8EX is an extendable rack tailored for industrial use. It offers 8 slots for various modules and is compatible with I/O devices, TSXP57 processors, and specific application modules.
Description
| Note | The TSXRKY8EX from Schneider Electric is an extendable rack built for specific industrial functionalities. With a design accommodating 8 slots, it serves as a platform for I/O modules, TSXP57 processors, and dedicated application modules, along with TSXPSY power supplies, ensuring versatile operational capabilities. This rack measures 335.3 mm wide, 151.5 mm high, and has a depth of 160 mm. Its weight is approximately 1.78 kg, making it manageable during installation and integration. For connectivity, it houses two female SUB-D 9 connectors, facilitating remote bus X connections. Given its IP20 protection rating, the TSXRKY8EX is designed for environments where access to electrical components is limited. The maintenance of typical operating temperatures aligns with industrial practices, whereas the rack's storage is advisable in controlled conditions to preserve functionality. Furthermore, this unit is suitable for panel mounting, promoting efficient space utilization. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Extendable rack Product Specific Application For multi-racks configuration |
Complementary
| Number of slots | 8 |
|---|---|
| Product Compatibility | I/O module Specific application module TSXP57 processor TSXPSY power supply |
| Electrical connection | 2 connectors female SUB-D 9 remote connection of bus X) |
| Fixing mode | By 4 M6 screws (panel) |
| By clips (35 mm symmetrical DIN rail) | N/A |
| Marking | CE |
| Net Weight | 3.92 lb(US) (1.78 kg) |
Environment
| Standards | 89/336/EEC 93/68/EEC 73/23/EEC |
|---|---|
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group C | UL 508 92/31/EEC |
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 213 Class I Division 2 Group B | IEC 61131-2 |
| CSA C22.2 No 213 Class I Division 2 Group D | N/A |
| Product Certifications | RMRS ABS RINA DNV GL BV LR |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110874631 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 8.3 in (21.0 cm) |
| Package 1 Length | 16.5 in (42.0 cm) |
| Package weight(Lbs) | 3.596 lb(US) (1.631 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
