TSXPSY5500M
Schneider Electric
Overview

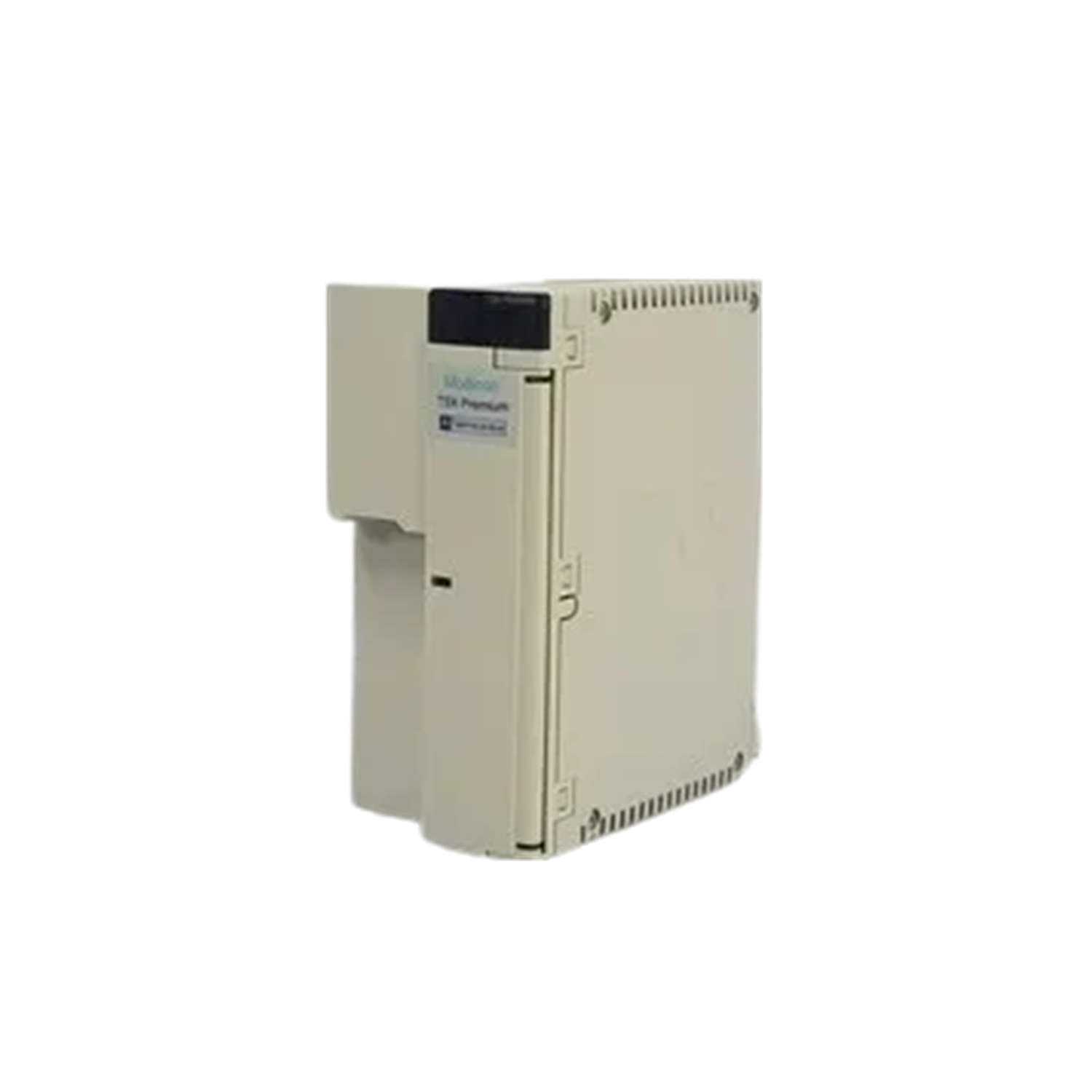

The TSXPSY5500M is a Power supply module in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a power supply module, the TSXPSY5500M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It conditions and distributes the low-voltage supply that powers the controller, I/O and communication modules on the same rack.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Ensure adequate ventilation and do not overload the supply beyond its published current budget; consider redundancy for critical racks. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXPSY5500M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the output voltage and current to the Modicon Premium / TSX load and allow headroom for future expansion. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXPSY5500M?
The TSXPSY5500M is a power supply module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Power supply module.
What are the key technical ratings of the TSXPSY5500M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXPSY5500M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXPSY5500M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXPSY5500M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXPSY5500M power supply module from Schneider Electric operates effectively in both 200-240 V AC and 100-120 V AC voltage ranges, proving versatile in power management applications. This module is built for a range of network frequencies, supporting operations at 50/60 Hz.
Description
| Note | The Schneider Electric TSXPSY5500M is a robust power supply module designed for use within the TSX Micro PLCs series. This module functions within an input voltage range of 200-240 V AC (with limits of 190-264 V) and handles a secondary input of 100-120 V AC (between 85-140 V). It accommodates network frequencies at a nominal frequency of 50/60 Hz and can accept variations within a 47-63 Hz range. This unit requires an input current of 500 mA at 240 V and 1700 mA at 100 V and can be employed at altitudes of up to 2000 meters above sea level. Humidity tolerance ranges from 10 to 95% during operation and 5 to 95% during storage, ensuring adaptability to various environments. The operating temperature falls within the range of 0 to 60 °C, while it can endure storage temperatures from -25 to 70 °C. Signaling capabilities are provided via three LEDs: one red LED indicates battery faults, while two green LEDs signal the presence of system voltages, including sensor voltage. The module can manage inrush currents of up to 38 A at both 240 V and 100 V. Total useful secondary power output reaches 50 W, with dedicated outputs of 35 W at 5 V DC for general use and 19 W at 24 V DC for additional components. The module can supply currents of 7 A at 5 V DC and 0.8 A at 24 V DC for both sensor and relay power supplies. Protection features include an internal time-delayed fuse rated at 4 A and additional safeguards for overloads, overvoltages, and short circuits, ensuring the reliability and safety of connected devices. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Power supply module |
Complementary
| Primary voltage | 100...120 V AC 85...140 V 200...240 V AC 190...264 V |
|---|---|
| Network Frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Input current | 1700 mA 100 V 500 mA 240 V |
| Inrush current | 38 A 100 V 38 A 240 V |
| I²t on activation | 2 A².s 240 V 4 A².s 100 V |
| It on activation | 0.11 A.s 100 V 0.11 A.s 240 V |
| Protection type | Internal fuse 4 A 5 x 20 mm time-delayed primary circuit |
| Overload protection secondary circuit | Overvoltage protection secondary circuit Short-circuit protection secondary circuit Total useful secondary power 50 W |
| Secondary power | 19 W 24 V DC 35 W 5 V DC |
| Current at secondary voltage | 0.8 A 24 V DC relay power supply 0.8 A 24 V DC sensor power supply 7 A 5 V DC Insulation resistance >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of sensor voltage (24V) 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT) |
| Module format | Double |
| Net Weight | 1.37 lb(US) (0.62 kg) |
Environment
| Immunity to microbreaks | 10 ms |
|---|---|
| Dielectric strength | 2000 V primary/earth 2000 V primary/secondary |
| Standards | 73/23/EEC |
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group C | 92/31/EEC UL 508 |
| CSA C22.2 No 213 Class I Division 2 Group D | N/A |
| CSA C22.2 No 213 Class I Division 2 Group B | N/A |
| CSA C22.2 No 213 Class I Division 2 Group A | IEC 61131-2 89/336/EEC 93/68/EEC |
| Product Certifications | RMRS LR ABS GL RINA DNV BV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | US1PC2222558 |
|---|---|
| Discount Schedule | PC22 GTIN 3389110725629 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.7 in (9.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 34.3 oz (971.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
