TSXPSY2600M
Schneider Electric
Overview

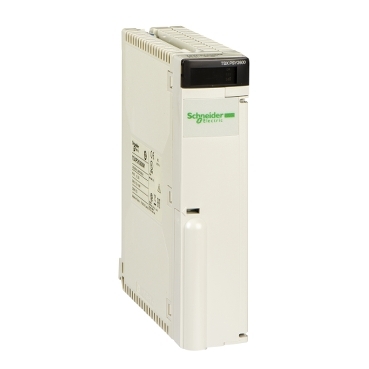

The TSXPSY2600M is a Power supply module in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a power supply module, the TSXPSY2600M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It conditions and distributes the low-voltage supply that powers the controller, I/O and communication modules on the same rack.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Ensure adequate ventilation and do not overload the supply beyond its published current budget; consider redundancy for critical racks. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXPSY2600M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the output voltage and current to the Modicon Premium / TSX load and allow headroom for future expansion. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXPSY2600M?
The TSXPSY2600M is a power supply module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Power supply module.
What are the key technical ratings of the TSXPSY2600M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXPSY2600M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXPSY2600M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXPSY2600M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXPSY2600M from Schneider Electric is a power supply module designed for TSX Micro PLCs. This unit supports primary voltage input of 24 V DC, with an operational capacity to handle inrush currents of up to 100 A at this voltage level.
Description
| Note | The Schneider Electric TSXPSY2600M is a power supply module tailored for the TSX Micro PLC series. It can effectively operate at an altitude of 0 to 2000 meters. This unit features an IP20 rating, making it suitable for areas without exposure to moisture or dust. Designed for robust performance, this device delivers a primary input voltage of 24 V DC, within a range of 19.2 to 30 V. The module outputs secondary power at 15 W for both 5 V DC and 24 V DC, cumulating to a total useful secondary power of 30 W. The TSXPSY2600M allows a secondary current of 0.6 A at 24 V DC and 3 A at 5 V DC. It can manage an inrush current of 100 A at 24 V. The input current is capped at 1500 mA at 24 V. For safety, this power supply module incorporates several protection features. It includes an internal time-delayed fuse rated at 3.5 A, overload protection, overvoltage prevention, and short-circuit protection to safeguard the connected equipment. Local signaling is facilitated by two LEDs, with a green LED indicating voltage presence and a red LED signaling battery faults. The module operates reliably within a temperature range of 0 to 60 °C and can be stored in temperatures between -25 and 70 °C. Additionally, it maintains functionality in relative humidity levels of 10 to 95% (without condensation for operation) and can be safely stored under conditions of 5 to 95% humidity (also without condensation). Overall, the TSXPSY2600M serves as a dependable power source for various applications. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Power supply module |
Complementary
| Primary voltage | 100...240 V AC 85...264 V |
|---|---|
| Network Frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Input current | 300 mA 240 V 500 mA 100 V |
| Inrush current | 37 A 100 V 75 A 240 V |
| I²t on activation | 0.63 A².s 100 V 2.6 A².s 240 V |
| It on activation | 0.034 A.s 100 V 0.067 A.s 240 V |
| Protection type | Internal fuse 4 A 5 x 20 mm time-delayed primary circuit |
| Overload protection secondary circuit | Overvoltage protection secondary circuit Short-circuit protection secondary circuit Total useful secondary power 26 W |
| Secondary power | 15 W 24 V DC 25 W 5 V DC |
| Current at secondary voltage | 0.5 A 24 V DC sensor power supply 0.6 A 24 V DC relay power supply 5 A 5 V DC Insulation resistance >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of sensor voltage (24V) 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT) |
| Module format | Standard |
| Net Weight | 1.12 lb(US) (0.51 kg) |
Environment
| Immunity to microbreaks | 10 ms |
|---|---|
| Dielectric strength | 2000 V primary/earth 2000 V primary/secondary |
| Standards | N/A |
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group A | IEC 61131-2 UL 508 89/336/EEC |
| CSA C22.2 No 213 Class I Division 2 Group B | 92/31/EEC 93/68/EEC |
| CSA C22.2 No 213 Class I Division 2 Group D | 73/23/EEC |
| CSA C22.2 No 213 Class I Division 2 Group C | N/A |
| Product Certifications | RMRS BV RINA GL ABS DNV LR |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | US1PC2222558 |
|---|---|
| Discount Schedule | PC22 GTIN 3389110725605 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.4 in (6.0 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 21.8 oz (619.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
