TSXPSY1610M
Schneider Electric
Overview

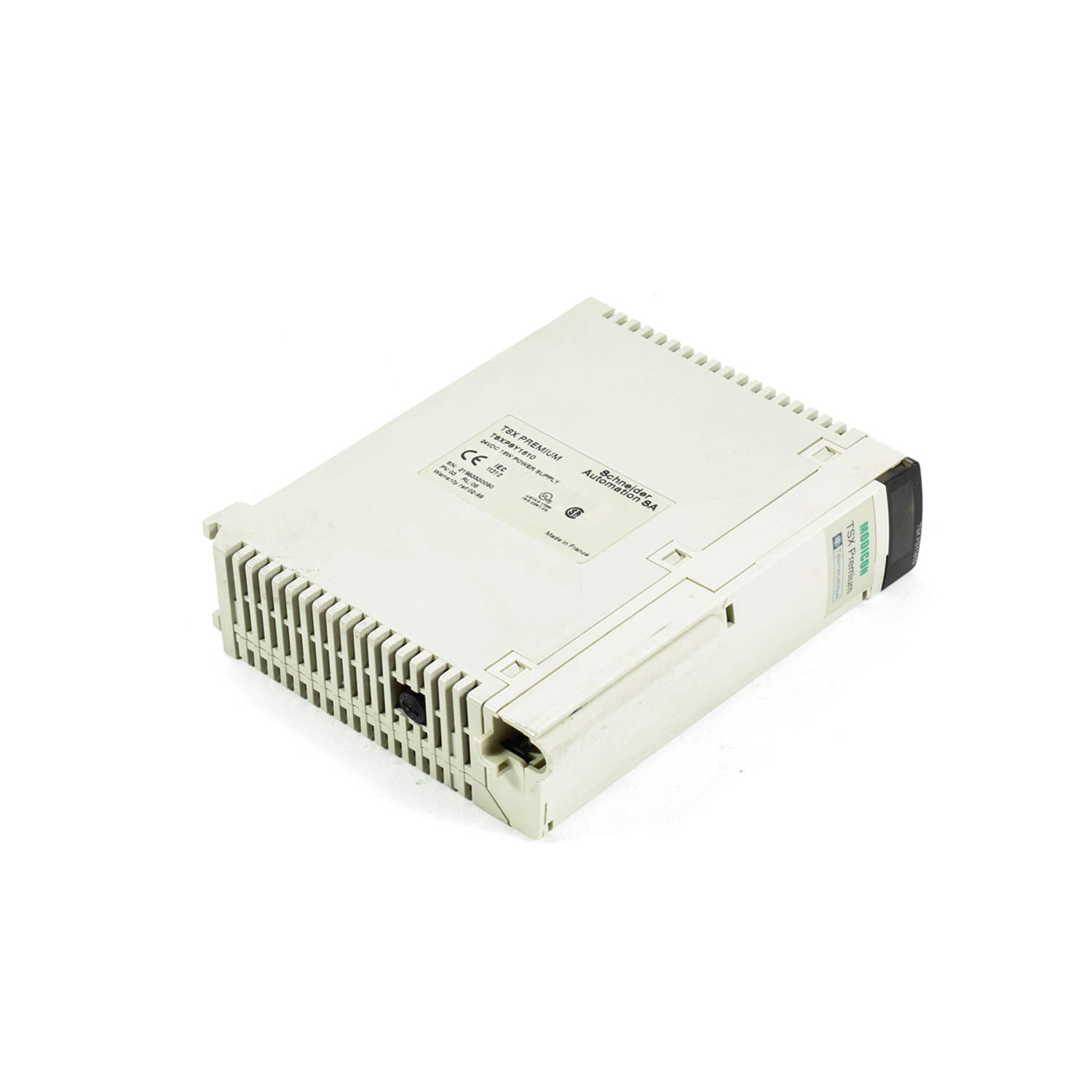

The TSXPSY1610M is a Power supply module in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a power supply module, the TSXPSY1610M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It conditions and distributes the low-voltage supply that powers the controller, I/O and communication modules on the same rack.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Ensure adequate ventilation and do not overload the supply beyond its published current budget; consider redundancy for critical racks. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXPSY1610M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the output voltage and current to the Modicon Premium / TSX load and allow headroom for future expansion. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXPSY1610M?
The TSXPSY1610M is a power supply module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Power supply module.
What are the key technical ratings of the TSXPSY1610M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXPSY1610M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXPSY1610M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXPSY1610M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXPSY1610M from Schneider Electric is a power supply module designed for TSX Micro PLCs. It features both relay and secondary voltages with a maximum output of 30 watts, making it suitable for various applications.
Description
| Note | The Schneider Electric TSXPSY1610M is a dedicated power supply module tailored for TSX Micro PLCs. This unit operates at a primary voltage of 24 V DC, specifically within a range of 19.2 to 30 V. It supplies a secondary voltage of 0.6 A at 24 V DC for relay applications and 3 A at 5 V DC for other critical tasks, yielding a total useful secondary power output of 30 watts. The input current remains capped at 1500 mA for 24 V usage. Safety and protection are paramount in the design of the TSXPSY1610M, featuring an internal fuse rated at 3.5 A (5 x 20 mm) that is time-delayed. In addition, the module offers overload, overvoltage, and short-circuit protection to enhance reliability. Local signaling incorporates a green LED that indicates voltage presence, while a red LED signals a battery fault. The device is fit for diverse environments, functioning within an ambient temperature range of 0 to 60 °C and withstanding storage temperatures between -25 and 70 °C. Relative humidity levels for operation can reach 10 to 95% without condensation, further broadening potential application scenarios. Its operational altitude can extend up to 2000 meters. With a protective treatment specification of TC and an IP20 degree of protection from external objects, the TSXPSY1610M is a robust option suited for a range of industrial applications. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Power supply module |
Complementary
| Primary voltage | 24 V DC 19.2...30 V |
|---|---|
| Input current | <= 1500 mA 24 V |
| Inrush current | 100 A 24 V |
| I²t on activation | 12.5 A².s |
| It on activation | 0.2 A.s |
| Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit |
| Overload protection secondary circuit | Overvoltage protection secondary circuit Short-circuit protection secondary circuit Total useful secondary power 30 W |
| Secondary power | 15 W 24 V DC 15 W 5 V DC |
| Current at secondary voltage | 0.6 A 24 V DC relay power supply 3 A 5 V DC |
| Marking | CE |
| Local signalling | 1 LED (green) for presence of voltages (OK) 1 LED (red) for battery fault (BAT) |
| Module format | Standard |
| Net Weight | 1.19 lb(US) (0.54 kg) |
Environment
| Immunity to microbreaks | 1 ms |
|---|---|
| Dielectric strength | 2000 V primary/earth 2000 V primary/secondary |
| Standards | 93/68/EEC |
| CSA C22.2 No 213 Class I Division 2 Group B | N/A |
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group C | IEC 61131-2 UL 508 |
| CSA C22.2 No 213 Class I Division 2 Group A | 92/31/EEC 73/23/EEC |
| CSA C22.2 No 213 Class I Division 2 Group D | 89/336/EEC |
| Product Certifications | RMRS LR ABS RINA BV GL DNV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110725599 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 21.8 oz (619.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
