TSXPBY10
Schneider Electric
Overview
The TSXPBY10 is a TSX Micro PLCs in the TSX Micro PLCs range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a tsx micro plcs, the TSXPBY10 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0 °C to +60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 °C to +60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25 °C to +70 °C. Avoid condensation — the rated humidity is 30% to 95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXPBY10, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXPBY10?
The TSXPBY10 is a tsx micro plcs in the TSX Micro PLCs range from Schneider Electric. It is described by the manufacturer as: TSX Micro PLCs.
What are the key technical ratings of the TSXPBY10?
Its published highlights include operating temperature 0 °C to +60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXPBY10 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXPBY10 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXPBY10?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

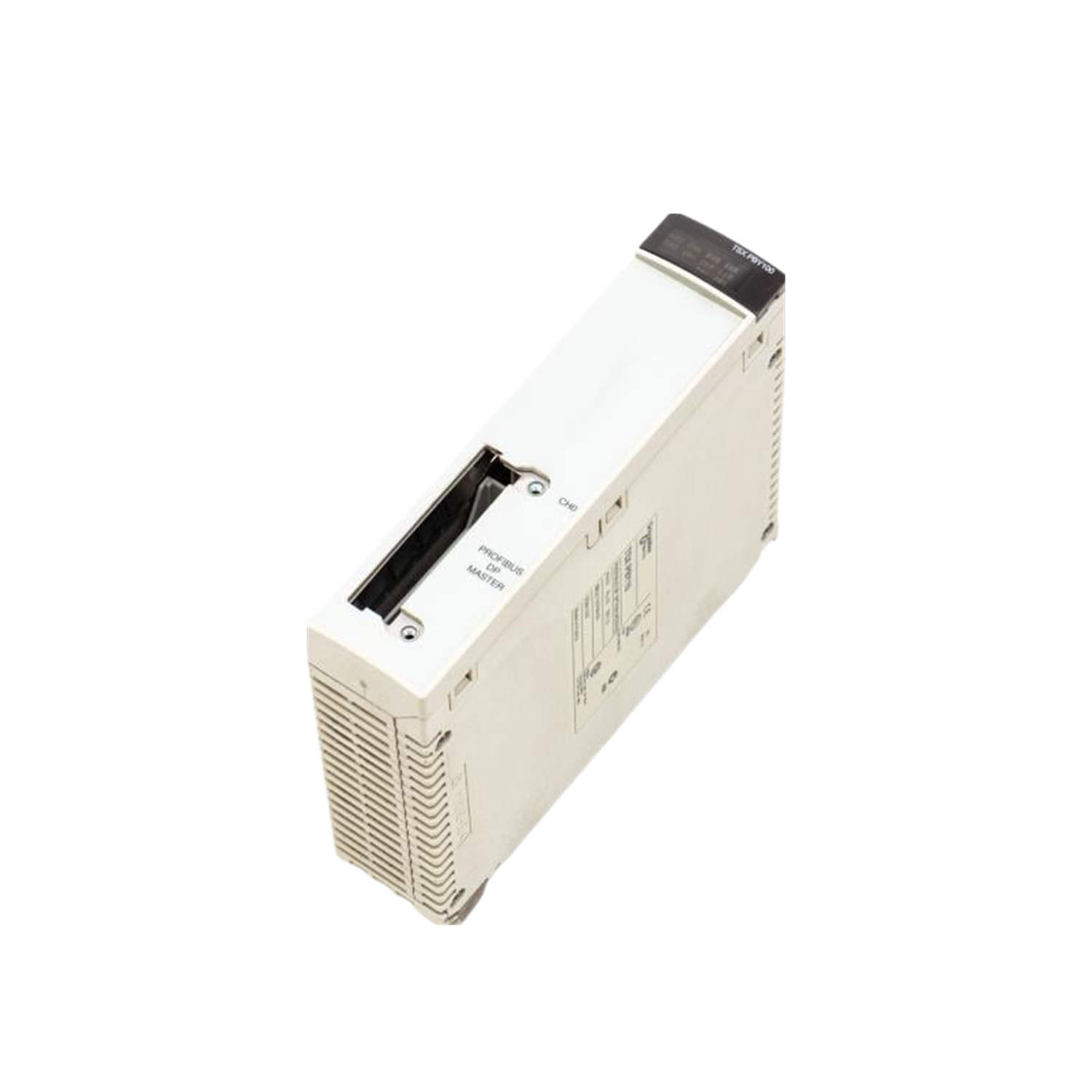

The Schneider Electric TSXPBY10 module is a Profibus-DP Option Module designed for integration with Modicon Premium PLCs. This component supports transmission rates, ranging from 9.6 Kbit/s to 12 Mbit/s, maximizing data handling capabilities.
Description
| Note | The Schneider Electric TSXPBY10 Profibus-DP Option Module is crafted for seamless compatibility with Modicon Premium PLCs. It operates within a versatile transmission range of 9.6 Kbit/s to 12 Mbit/s, enabling efficient communication across your network. When configured, this module can support a maximum segment length of 1200 meters at the lower transmission rate of 9.6 Kbit/s, facilitating expansive installation flexibility. When implemented, repeaters can serve up to 124 slave devices, enhancing control over a larger array of equipment. The TSXPBY10 is well-suited for demanding automation tasks. Its input/output data size capacity is 4096 inputs and 4096 outputs, and it performs reliably across operational temperatures from 0 °C to +60 °C and can endure storage conditions ranging from -25 °C to +70 °C. Furthermore, it operates efficiently in environments with a humidity level between 30% and 95% without condensation, ensuring functionality under various conditions. Engineered for high-performance applications, this module can withstand altitudes of up to 2000 meters. Its resilience is underscored by its compliance with IEC standards for vibration (IEC 68-2-6), shock (IEC 68-2-27), and electrostatic discharge (IEC 1000-4-2). The module draws a 5 V DC power supply sourced from the rack power supply, with a current consumption of 400 mA, making it straightforward to integrate into existing systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
