TSXP575634M
Schneider Electric
Overview

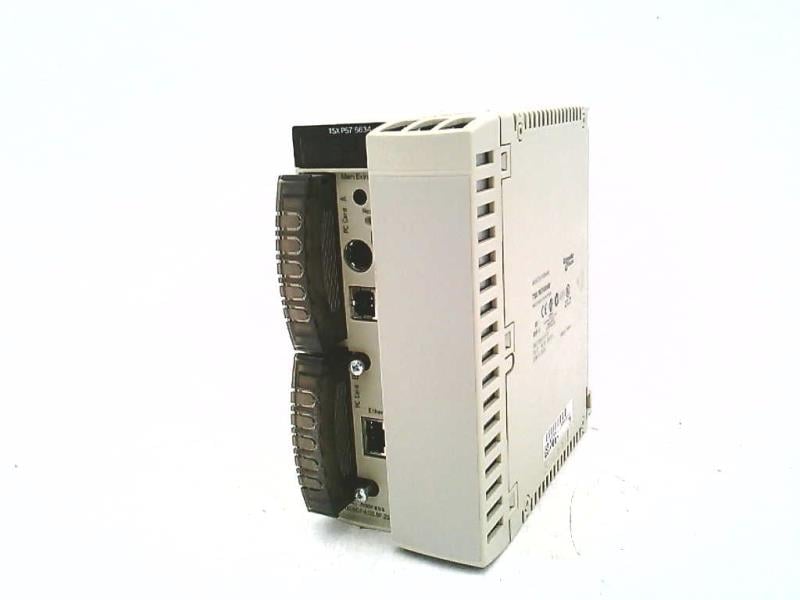

The TSXP575634M is an Unity processor in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As an unity processor, the TSXP575634M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP575634M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP575634M?
The TSXP575634M is an unity processor in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Unity processor.
What are the key technical ratings of the TSXP575634M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXP575634M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP575634M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP575634M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXP575634M from Schneider Electric is part of the TSX Micro PLCs series and features robust internal memory options. With an internal RAM of 32 K words for data and programs, this module can be enhanced using a PCMCIA card for extra data capacity.
Description
| Note | The Schneider Electric TSXP575634M is a versatile controller module designed for use in the TSX Micro PLC series. Its standard internal memory is 32 Kwords, allocated for programs and operational data. Users can augment this capability with a PCMCIA card, adding 128 Kwords for data storage and 64 Kwords for program memory. This module is efficient, with an execution time of 0.5 µs per Boolean instruction when not using a PCMCIA card. With the card in place, the execution time increases slightly to 0.6 µs. While executing instructions, the module achieves a throughput of 1.05 Kinst/ms without the PCMCIA card and a slightly lower throughput of 0.85 Kinst/ms with the additional card. Seven local signaling LEDs are included for operational feedback: a green LED indicates the processor is running, while a red LED alerts to I/O module issues or configuration faults. Another red LED signals processor or system errors and a yellow LED indicates activity on the terminal port. The module's current consumption is 440 mA at a voltage of 5 V DC. Weighing 0.84 lbs. (or 0.38 kg), it supports inrush currents of 38 A for 240 V and 100 V systems. It can accommodate two racks of 12 slots or four racks with 4, 6, or 8 slots configuration options. For I/O capacity, this controller can handle 512 discrete I/O connections alongside 24 analog I/O connections. For connections, the module features an integrated and non-isolated serial communication link with two female mini-DIN ports operating at 19.2 kbit/s, allowing seamless integration into existing systems. Furthermore, the communication module processor can support one network module, two AS-Interface bus modules, and one CANopen, enhancing its versatility in various applications. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Unity processor |
| Software Designation | Unity Pro |
Complementary
| Note | Concept Transparent Ready |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 64 128 96 |
| Discrete I/O processor capacity | 2040 I/O |
| Analogue I/O processor capacity | 512 I/O |
| Number of application specific channel | 64 |
| Number of process control channel | 30 up to 90 simple loops |
| Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s) |
| Ethernet TCP/IP RJ45 | USB port12 Mbit/s) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 1 3 8 5 |
| Memory description | Internal RAM (with PCMCIA card) 1024 kB data Internal RAM (with PCMCIA card) 7168 kB program Internal RAM (without PCMCIA card) 1024 kB program and data |
| PCMCIA card 16384 kB additional data storage | N/A |
| Maximum size of object areas | 128 %MWi internal words located internal data 32768 %Mi located internal bits 64 %KWi constant words located internal data Unlimited (DFB and EFB function blocks) unlocated internal data Unlimited (elementary and derived data) unlocated internal data |
| Application structure | 1 master task 128 event tasks 32 timers 1 fast task 4 auxiliary tasks |
| Execution time per instruction | 0.0375...0.045 µs Boolean with PCMCIA card 0.0375...0.045 µs Boolean without PCMCIA card 0.045...0.06 µs word or fixed-point arithmetic with PCMCIA card 0.045...0.06 µs word or fixed-point arithmetic without PCMCIA card 0.48...0.56 µs floating points with PCMCIA card 0.48...0.56 µs floating points without PCMCIA card |
| Number of instructions per ms | 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 20.26 Kinst/ms 100 % Boolean with PCMCIA card 20.26 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.07 ms fast task 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1680 mA 5 V DC |
| Module format | Double |
| Net Weight | 1.34 lb(US) (0.61 kg) |
Environment
| Standards | N/A |
|---|---|
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group D | N/A |
| CSA C22.2 No 213 Class I Division 2 Group B | 73/23/EEC 93/68/EEC 89/336/EEC |
| CSA C22.2 No 213 Class I Division 2 Group C | IEC 61131-2 UL 508 92/31/EEC |
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| Product Certifications | BV DNV RMRS GL ABS RINA LR |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | US1000I22000 |
|---|---|
| Discount Schedule | 000I GTIN 3595862066501 |
| Returnability | Yes |
| Country of origin | FR |
