TSXP573623M
Schneider Electric
Overview
The TSXP573623M is a TSX Micro PLCs in the TSX Micro PLCs range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a tsx micro plcs, the TSXP573623M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP573623M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP573623M?
The TSXP573623M is a tsx micro plcs in the TSX Micro PLCs range from Schneider Electric. It is described by the manufacturer as: TSX Micro PLCs.
What are the key technical ratings of the TSXP573623M?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TSXP573623M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP573623M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP573623M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXP573623M is a versatile PLC from Schneider Electric's TSX Micro PLCs series. It features a significant discrete I/O processor capacity of 1024 I/O, complemented by a robust analog I/O processor capacity of 128 I/O, making it suitable for various automation tasks.
Description

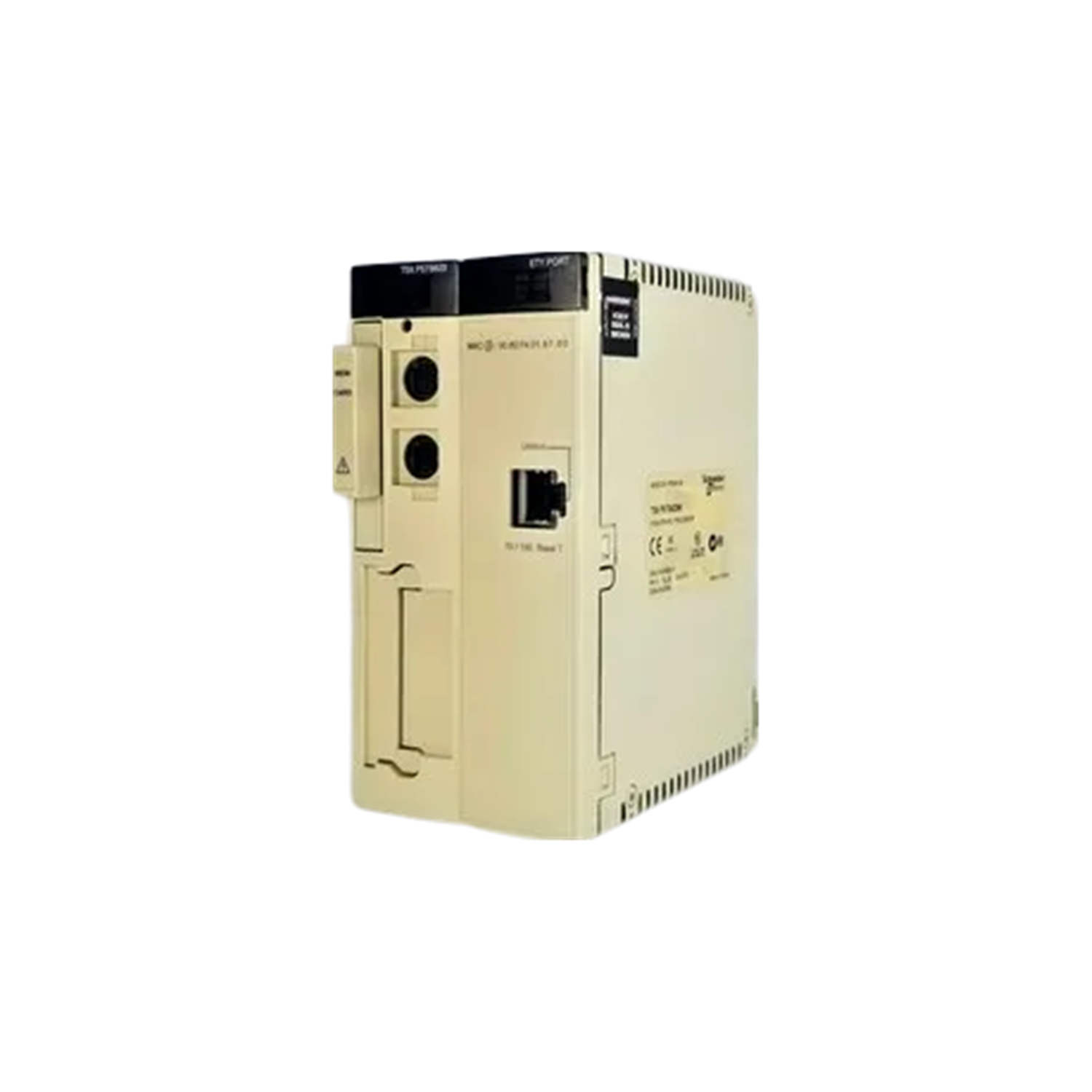

| Note | Schneider Electric’s TSXP573623M PLC is engineered for effective control and automation. It can support up to 1024 discrete inputs and outputs alongside 128 analog I/O units, catering to diverse application needs. This device can handle significant memory with 64 Kwords for program and data storage without a PCMCIA card. When coupled with the PCMCIA card, the internal RAM expands to 80 Kwords, with the card capable of providing an extra 2688 Kwords of data storage. Furthermore, this PLC processes instructions with an execution time of just 0.12 µs for Boolean operations without the PCMCIA card and 0.17 µs when the card is present. It has two PCMCIA slots for memory extensions or communication expansion. The TSXP573623M also boasts an extensive structure for handling tasks, with one master task, one fast task, and up to 64 event-driven tasks, ensuring efficient operation in complex scenarios. Additionally, up to 16 racks can be accommodated by the system, extending its capabilities for larger operations. It provides integrated Ethernet TCP/IP options and a non-isolated serial link for connectivity. The communication module can manage two fieldbus modules or eight AS-Interface bus modules, adaptable to numerous configurations. The unit also has a convenient RESET button for initiating a cold start, a feature designed for ease of use. Overall, this PLC combines advanced processing capabilities with flexible connectivity and is suitable for many industrial automation applications. |
|---|
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.0 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 763.0 g |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
