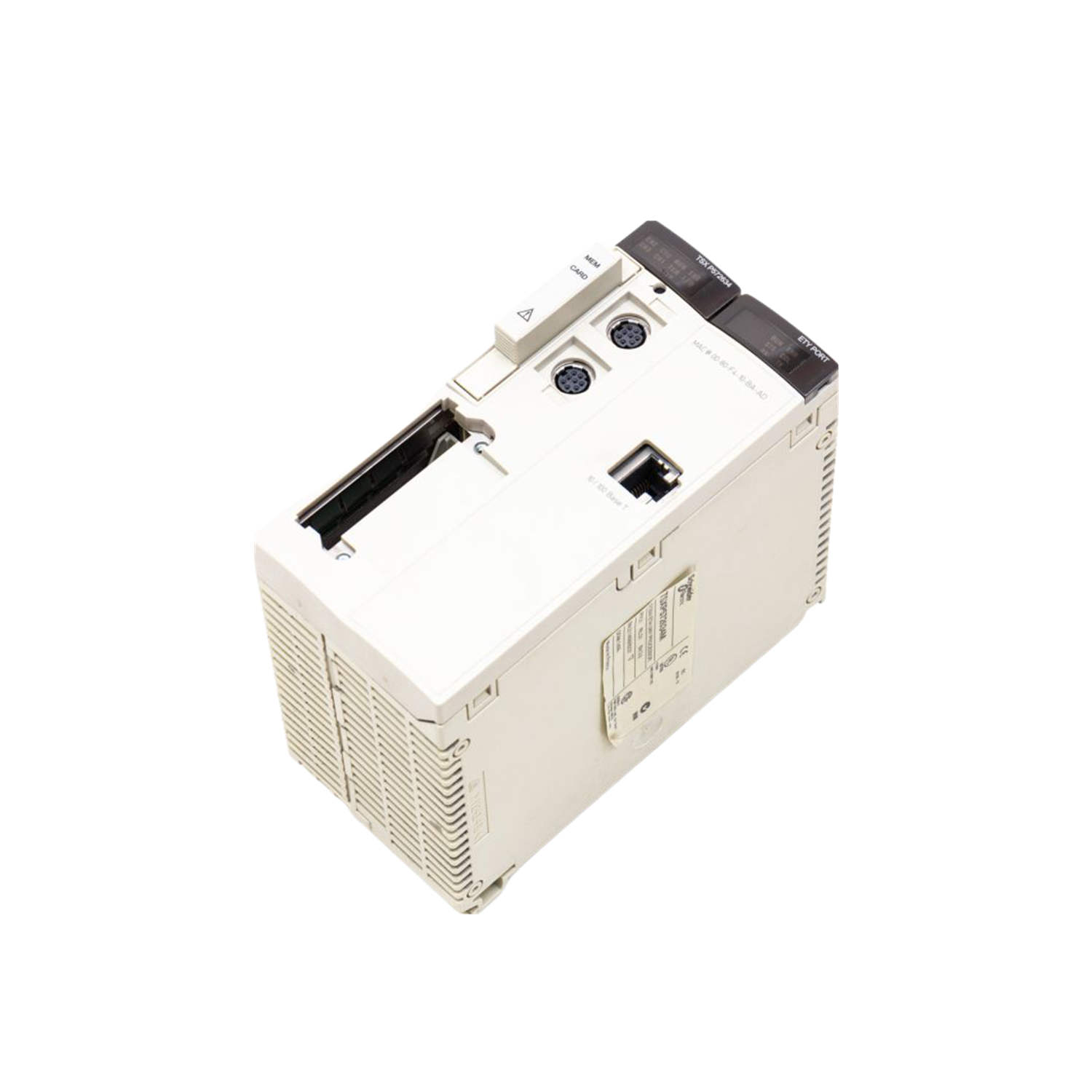

TSXP572634M
Schneider Electric
Overview
The TSXP572634M is an Unity processor in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As an unity processor, the TSXP572634M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP572634M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP572634M?
The TSXP572634M is an unity processor in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Unity processor.
What are the key technical ratings of the TSXP572634M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXP572634M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP572634M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP572634M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXP572634M from Schneider Electric's TSX Micro PLCs series is tailored for sophisticated control tasks. It is equipped to manage both analog and discrete I/O with a capacity of up to 80 analog inputs and outputs and 1024 discrete I/O points, enabling a wide range of automation solutions.
Description
| Note | The Schneider Electric TSXP572634M is part of the TSX Micro PLCs line, designed for flexibility and efficiency in automation processes. The unit features an analog I/O processor capable of handling 80 I/O channels alongside a discrete I/O processor with a 1024 I/O capacity. It supports various connection types, including a non-isolated serial link with dual female mini-DIN connectors operating at 19.2 kbit/s and Ethernet TCP/IP via RJ45, facilitating seamless communication within industrial networks. For memory expansion, the TSXP572634M includes two PCMCIA slots, one designated for a memory extension card and the other for a communication card or an optional 4 Mb SRAM card. The communication module can accommodate one fieldbus module—though if using CANopen, this module is not applicable, as well as four AS-Interface bus modules and one CANopen interface. Regarding processing speed, the execution time for instructions is quick, registered at 0.19 µs for Boolean operations without a PCMCIA card and 0.21 µs with one installed. The application structure is adaptable, featuring one master task, one fast task, and a configuration that supports 64 event tasks. The controller's RAM configuration allows 48 Kwords of memory for both program and data (without PCMCIA). At the same time, with a PCMCIA card, the capacity extends to 48 Kwords for data and a program size of 160 Kwords. Additionally, the controller can support up to 16 racks and includes a RESET button that triggers a cold start when engaged. Status monitoring is easily handled with a display block containing five LEDs on the front panel, enhancing the operator's ability to manage system performance. The TSXP572634M is designed to provide efficient and reliable control for various applications. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Unity processor |
| Software Designation | Unity Pro |
Complementary
| Note | Concept Transparent Ready |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 128 96 64 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN RS485)19.2 kbit/s) |
| Ethernet TCP/IP RJ45 | N/A |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 4 1 |
| Memory description | Internal RAM (with PCMCIA card) 160 kB data Internal RAM (with PCMCIA card) 768 kB program Internal RAM (without PCMCIA card) 160 kB program and data |
| PCMCIA card 16384 kB additional data storage | N/A |
| Maximum size of object areas | 64 %KWi constant words located internal data 64 %MWi internal words located internal data 64 kB (DFB and EFB function blocks) unlocated internal data 64 kB (elementary and derived data) unlocated internal data 8132 %Mi located internal bits |
| Application structure | 64 event tasks 1 master task 1 fast task |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card 0.25 µs word or fixed-point arithmetic without PCMCIA card 1.75...2.6 µs floating points with PCMCIA card 1.75...2.6 µs floating points without PCMCIA card 0.21 µs Boolean with PCMCIA card 0.42 µs word or fixed-point arithmetic with PCMCIA card |
| Number of instructions per ms | 2.53 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 3.7 Kinst/ms 100 % Boolean with PCMCIA card 3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.3 ms fast task 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1650 mA 5 V DC |
| Module format | Double |
| Net Weight | 0.093 lb(US) (0.042 kg) |
Environment
| Standards | N/A |
|---|---|
| CSA C22.2 No 213 Class I Division 2 Group B | IEC 61131-2 93/68/EEC 89/336/EEC UL 508 92/31/EEC |
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group D | N/A |
| CSA C22.2 No 213 Class I Division 2 Group C | 73/23/EEC |
| Product Certifications | LR BV RMRS GL RINA DNV ABS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
