TSXP572634
Schneider Electric
Overview
The TSXP572634 is a Modicon in the Modicon range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a modicon, the TSXP572634 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0 to 60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25 to 70 °C. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP572634, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP572634?
The TSXP572634 is a modicon in the Modicon range from Schneider Electric. It is described by the manufacturer as: Modicon.
What are the key technical ratings of the TSXP572634?
Its published highlights include operating temperature 0 to 60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXP572634 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP572634 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP572634?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

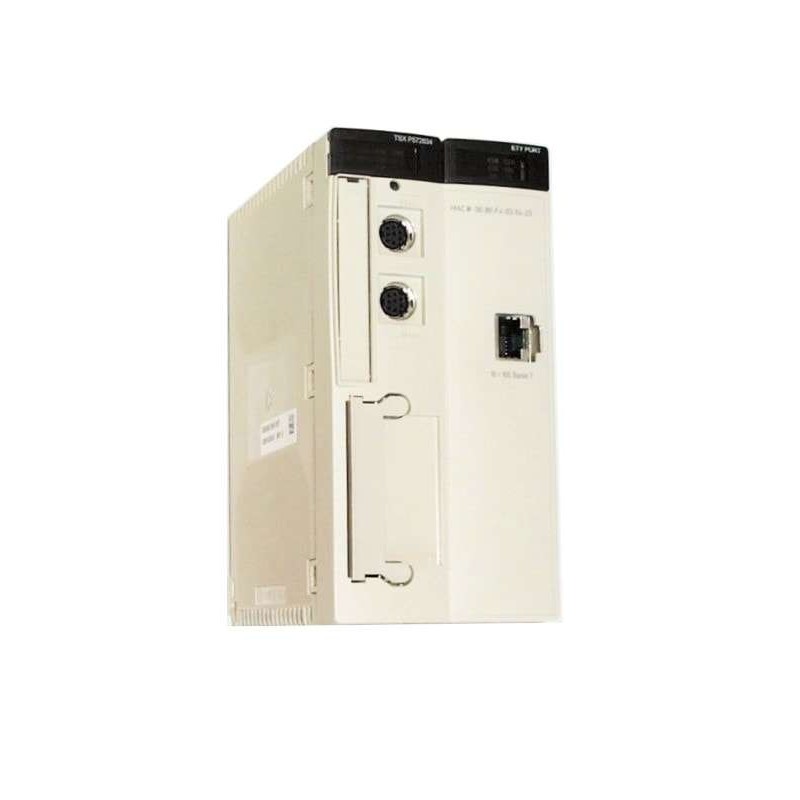

The Schneider Electric TSXP572634 is a Unity processor designed for versatile automation applications. It supports a substantial capacity for discrete I/O of up to 1024 and can handle 80 analogue I/O inputs and outputs as well.
Description
| Note | The TSXP572634 from Schneider Electric is a Unity processor used in advanced control systems. This unit accommodates a significant parameter for discrete I/O, allowing connections for up to 1024 discrete inputs and outputs. It also caters to 80 analogue I/O points, making it suitable for diverse instrumentation tasks. The module features Ethernet connectivity with both 10BASE-T and 100BASE-TX options, ensuring reliable data transmission. With a current consumption requirement of 1650 mA at 5 V DC, it provides a robust power profile for intensive applications. This processor is configured in a double module format, which optimizes its space and connectivity in a rack. Weighing only 0.042 kg, it is lightweight, facilitating ease of installation. Operationally, the TSXP572634 functions efficiently in ambient temperatures ranging from 0 to 60 °C. For storage, it can withstand conditions between -25 to 70 °C, ensuring durability in various environments. The device is assigned an IP20 degree of protection, suitable for indoor use. The processor supports a flexible system design, capable of managing up to 8 racks with 12 slots each or 16 racks in configurations featuring 4, 6, or 8 slots. In total, it can accommodate up to 128 slots, giving users extensive scalability for their automation needs. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
