TSXP572623M
Schneider Electric
Overview

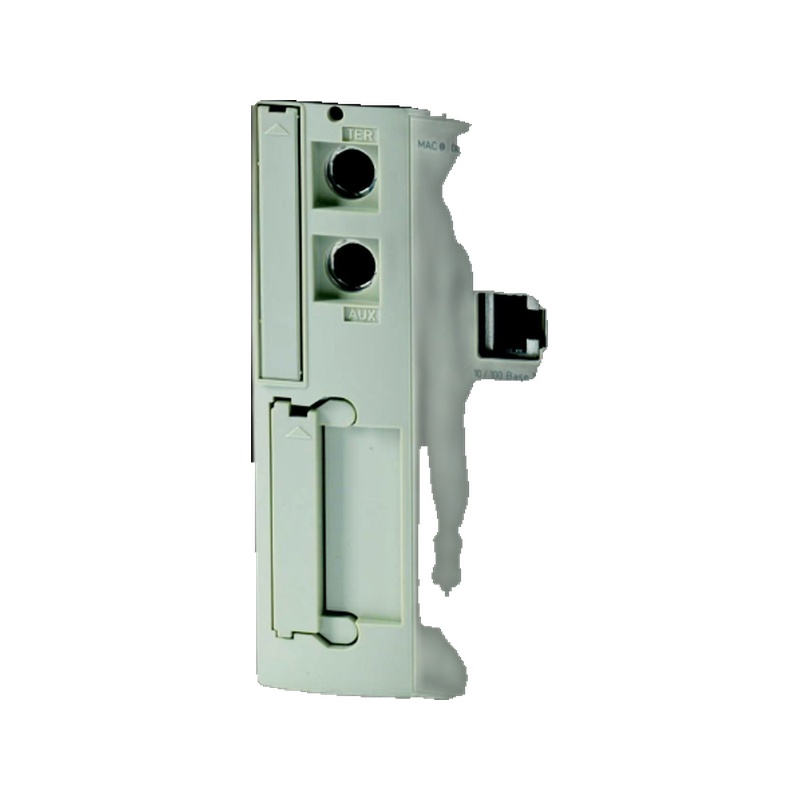

The TSXP572623M is a Double-format PL7 processor in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a double-format pl7 processor, the TSXP572623M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP572623M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP572623M?
The TSXP572623M is a double-format pl7 processor in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Double-format PL7 processor.
What are the key technical ratings of the TSXP572623M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXP572623M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP572623M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP572623M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXP572623M from Schneider Electric is part of the TSX Micro PLC series. It can handle up to 30 simple process control loops and offers robust functionality for a variety of automation tasks.
Description
| Note | Schneider Electric's TSXP572623M is a compact yet powerful micro PLC belonging to the TSX series. It supports a wide range of process control applications and can manage up to 30 simple loops. This device includes a RESET button that, when activated, causes the PLC to cold start, ensuring a fresh start when needed. The internal memory architecture comprises 48 Kwords allocated for program and data storage. If a PCMCIA card is utilized, the memory capacity can expand to accommodate 160 Kwords for program storage and 2688 Kwords for data. The PLC supports up to 16 racks, making it suitable for scalable automation systems. Discrete I/O processing is substantial, with a capacity to manage 1024 I/O points and 80 points for analog I/O processing. Communication capabilities are extensive, featuring a non-isolated serial link (with 2 female mini-DIN connectors at a rate of 19.2 kbit/s) and Ethernet TCP/IP support (using an RJ45 connector at 10/100 Mbit/s). The device offers two PCMCIA slots—one designated for memory expansion and another for either a communication card or a 4 MB SRAM memory extension card. For field communication, the TSXP572623M supports one fieldbus module (except when CANopen is implemented), and it can connect with up to 4 AS-Interface bus modules and 1 CANopen module for versatile networking options. The execution time is efficient, with 0.19 µs per instruction for Boolean logic without the PCMCIA card and 0.21 µs when this card is present. In terms of operational structure, the PLC consists of 1 master task, 1 fast task, and up to 64 event-driven tasks, facilitating complex automation scenarios. Object area sizes may reach up to 30.5% for MWi internal words, 32% for KWi constant words, and 8132% for internal bits. Additionally, the front panel of this PLC is equipped with a display block featuring 5 LEDs, providing clear operational status indicators. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Double-format PL7 processor |
| Software Designation | PL7 Junior/Pro |
Complementary
| Note | Concept Transparent Ready |
|---|---|
| Number of racks | 16 4/6/8 slots 8 12 slots |
| Number of slots | 64 96 128 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN19.2 kbit/s) Ethernet TCP/IP RJ4510/100 Mbit/s) |
| Communication module processor capacity | 1 fieldbus module (none if CANopen used) 4 AS-Interface bus modules 1 CANopen |
| Memory description | Internal RAM (with PCMCIA card) 48 Kwords data Internal RAM (without PCMCIA card) 48 Kwords program and data PCMCIA card 160 Kwords program PCMCIA card 2688 Kwords additional data storage |
| Maximum size of object areas | 30.5 %MWi internal words located internal data 32 %KWi constant words located internal data 8132 %Mi located internal bits |
| Application structure | 1 master task 1 fast task 64 event tasks |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card 0.21 µs Boolean with PCMCIA card 0.25 µs word or fixed-point arithmetic without PCMCIA card 0.42 µs word or fixed-point arithmetic with PCMCIA card 2.6 µs floating points with PCMCIA card 2.6 µs floating points without PCMCIA card |
| Number of instructions per ms | 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 3.7 Kinst/ms 100 % Boolean with PCMCIA card 4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms fast task 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on the terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1110 mA 5 V DC |
| Module format | Double |
| Net Weight | 1.68 lb(US) (0.76 kg) |
Environment
| Standards | N/A |
|---|---|
| CSA C22.2 No 142 | IEC 61131-2 |
| CSA C22.2 No 213 Class I Division 2 Group D | 73/23/EEC |
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 213 Class I Division 2 Group B | 93/68/EEC 92/31/EEC UL 508 89/336/EEC |
| CSA C22.2 No 213 Class I Division 2 Group C | N/A |
| Product Certifications | BV DNV RMRS ABS GL LR RINA |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3595862058469 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.7 in (9.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 26.8 oz (759.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
