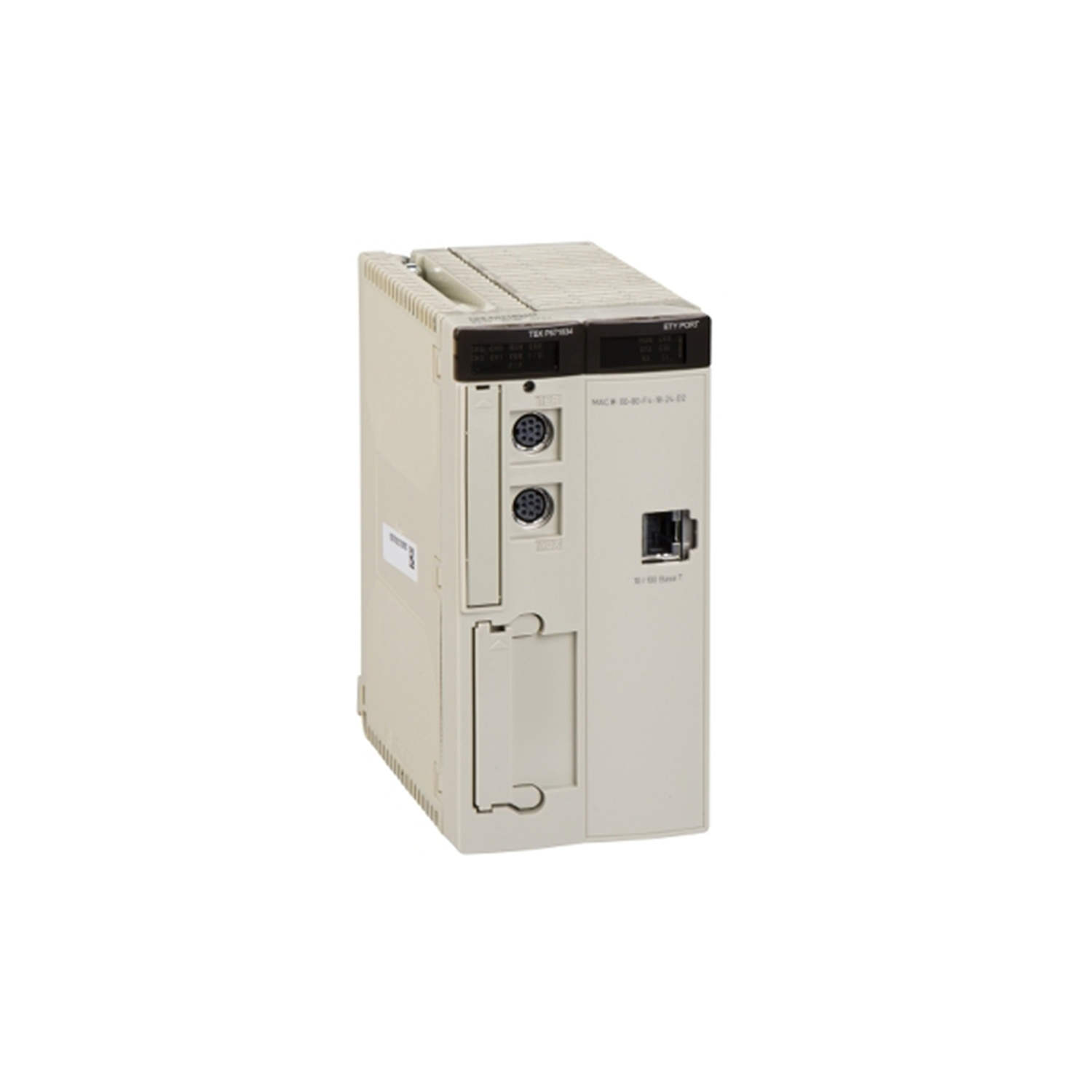

TSXP571634
Schneider Electric
Overview
The TSXP571634 is a Modicon in the Modicon range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a modicon, the TSXP571634 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 5VDC rating, an operating temperature range of 0 to 60 degrees Celsius. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0 to 60 degrees Celsius); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25 to 70 degrees Celsius. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP571634, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP571634?
The TSXP571634 is a modicon in the Modicon range from Schneider Electric. It is described by the manufacturer as: Modicon.
What are the key technical ratings of the TSXP571634?
Its published highlights include 5VDC, operating temperature 0 to 60 degrees Celsius. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXP571634 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP571634 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP571634?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric TSXP571634 is a Unity Processor designed for robust automation tasks. It features the ability to handle up to 512 discrete I/O and 24 analogue I/O, enabling substantial data processing and control capabilities.
Description
| Note | The TSXP571634, belonging to Schneider Electric's Modicon series, serves as a powerful Unity Processor intended for automation control. This unit supports an extensive discrete I/O capacity, rated at 512 points, alongside 24 analogue I/O inputs. Such capacities make it suitable for a wide array of applications requiring extensive data interaction. In terms of channel support, this processor includes eight application-specific channels to facilitate targeted operations. Memory resources are adequately provisioned, with internal RAM allowing up to 224 kB for program storage when utilizing a PCMCIA card. Additionally, it allocates 96 kB for data. If the PCMCIA card is not in use, the processor still provides 96 kB for both program and data requirements, ensuring the necessary space for vital operations. This device operates with a current draw of 1650 mA and requires a 5V DC power supply, making it energy efficient while maintaining effective performance standards. Weighing 0.74 kg, it is compact and relatively lightweight for its capabilities. The TSXP571634 is constructed with an IP20 protection class, suitable for environments where protection from solid objects is essential. In terms of operational altitude, it is rated for use up to 2000 meters. For ambient conditions, the processor can function reliably over a temperature range of 0 to 60 degrees Celsius, while it can safely be stored in temperatures between -25 and 70 degrees Celsius. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
