TSXP57103M
Schneider Electric
Overview

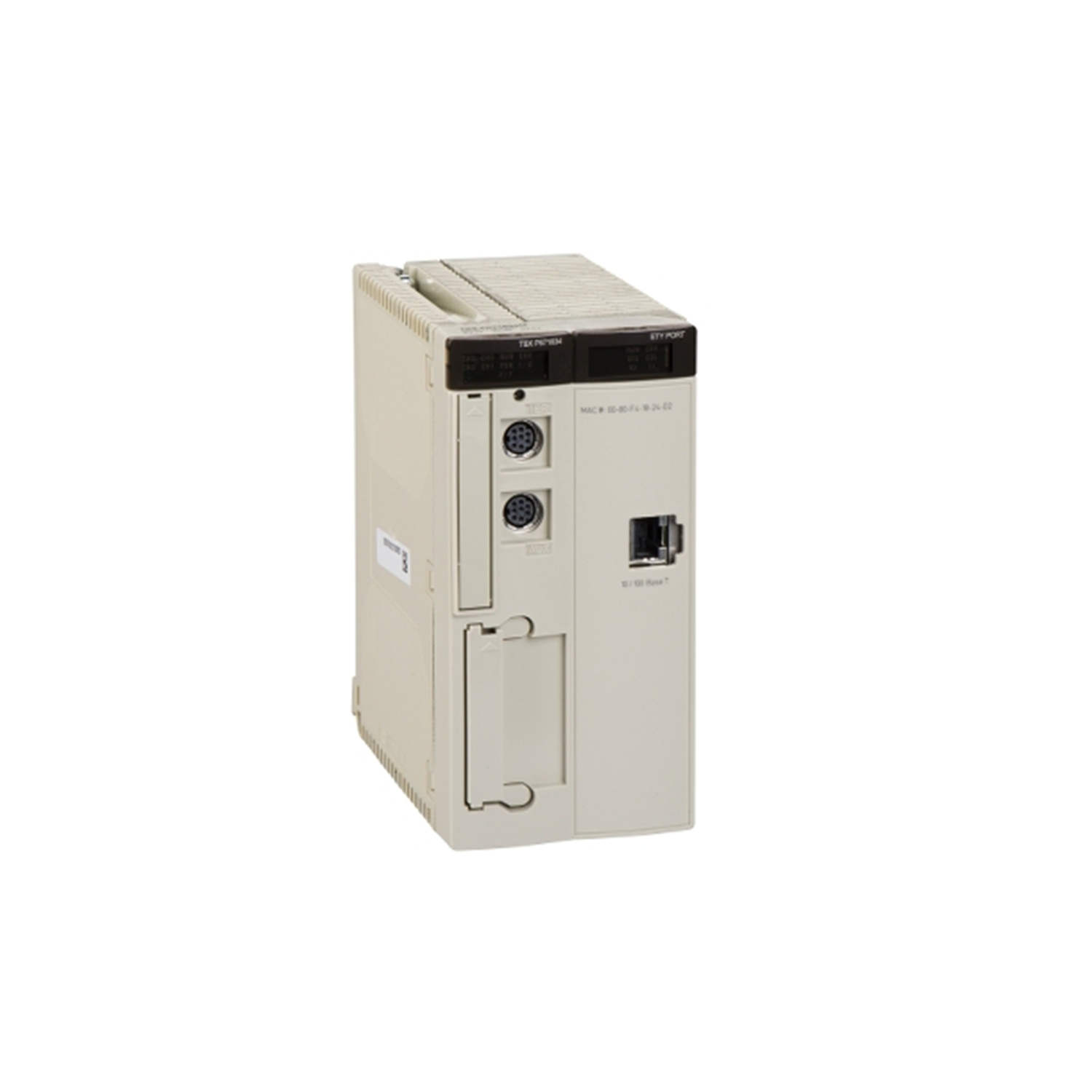

The TSXP57103M is a Single-format PL7 processor in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a single-format pl7 processor, the TSXP57103M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXP57103M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXP57103M?
The TSXP57103M is a single-format pl7 processor in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Single-format PL7 processor.
What are the key technical ratings of the TSXP57103M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXP57103M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXP57103M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXP57103M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric TSXP57103M is a micro PLC that incorporates an internal RAM of 32 Kwords specifically designated for data processing. This module offers efficient inrush current capabilities, handling 38 A at both 240 V and 100 V. Designed with flexibility in mind, it can accommodate up to two racks supporting 12 slots or four racks with up to eight slots, making it suitable for various configurations.
Complementary
| Number of racks | 2 12 slots 4 4/6/8 slots |
|---|---|
| Number of slots | 16 32 24 |
| Discrete I/O processor capacity | 512 I/O |
| Analogue I/O processor capacity | 24 I/O |
| Number of application specific channel | 8 |
| Integrated connection type | Non isolated serial link 2 female mini DIN19.2 kbit/s) |
| Communication module processor capacity | 1 network module 2 AS-Interface bus modules 1 CANopen |
| Memory description | Internal RAM (with PCMCIA card) 32 Kwords data Internal RAM (without PCMCIA card) 32 Kwords program and data PCMCIA card 128 Kwords additional data storage PCMCIA card 64 Kwords program |
| Maximum size of object areas | 30.5 %MWi internal words located internal data 32 %KWi constant words located internal data 4096 %Mi located internal bits |
| Application structure | 1 master task 1 fast task 32 event tasks |
| Execution time per instruction | 0.5 µs Boolean without PCMCIA card 0.6 µs Boolean with PCMCIA card 0.62 µs word or fixed-point arithmetic without PCMCIA card 0.87 µs word or fixed-point arithmetic with PCMCIA card 44 µs floating points with PCMCIA card 44 µs floating points without PCMCIA card |
| Number of instructions per ms | 0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 1.18 Kinst/ms 100 % Boolean with PCMCIA card 1.52 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.8 ms fast task 1.5 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 440 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.84 lb(US) (0.38 kg) |
Environment
| Standards | N/A |
|---|---|
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 142 | 89/336/EEC UL 508 73/23/EEC |
| CSA C22.2 No 213 Class I Division 2 Group C | 92/31/EEC 93/68/EEC |
| CSA C22.2 No 213 Class I Division 2 Group B | IEC 61131-2 |
| CSA C22.2 No 213 Class I Division 2 Group D | N/A |
| Product Certifications | DNV GL RMRS BV ABS LR RINA |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3595862023825 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 17.9 oz (508.0 g) |
Description
| Note | The TSXP57103M from Schneider Electric is an advanced micro PLC designed for efficient automation. This module possesses an internal RAM of 32 Kwords for data storage and processing. It supports high inrush currents of 38 A at 240 V and 100 V, ensuring robust performance under various electrical conditions. Users can take advantage of the flexible rack option, which allows them to use either 12 slots across two racks or up to eight slots over four racks. For processing, it features 512 I/O for discrete inputs/outputs and an additional 24 I/O for analog applications. The module communicates using a non-isolated serial link supported by two female mini-DIN connectors, reaching speeds of 19.2 kbit/s. The communication capabilities extend to managing one network module, two AS-Interface bus modules, and a single CANopen, making it adaptable for multiple networking requirements. Memory management supports up to 32 Kwords of program and data without a PCMCIA card. However, with a PCMCIA card, it can expand to an additional 128 Kwords for data storage and 64 Kwords for programming. Instructions are executed promptly, with times of 0.5 µs per Boolean instruction without the PCMCIA card and 0.6 µs with it. This allows for efficient processing rates of 0.85 Kinst/ms and 1.05 Kinst/ms, respectively. LEDs provide a local indication, signaling processor activity, I/O status, error states, and terminal activity. The TSXP57103M consumes 440 mA at 5 V DC. It is housed in a standard module format that weighs approximately 0.84 lbs. (0.38 kg), making it a robust choice for compact installations within control systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
