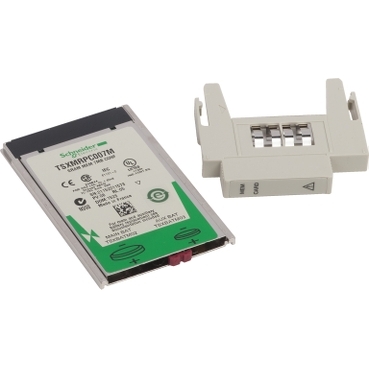

TSXMRPC007M
Schneider Electric
Overview
The TSXMRPC007M is a SRAM memory in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a sram memory, the TSXMRPC007M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include an operating temperature range of 0°C to 60°C, din rail mounting mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0°C to 60°C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within Range -25°C to 70°C. Avoid condensation — the rated humidity is 5% to 95% non-condensing; store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXMRPC007M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXMRPC007M?
The TSXMRPC007M is a sram memory in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: SRAM memory.
What are the key technical ratings of the TSXMRPC007M?
Its published highlights include operating temperature 0°C to 60°C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXMRPC007M mounted or installed?
It uses DIN rail mounting. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the TSXMRPC007M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXMRPC007M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXMRPC007M from Schneider Electric is a compact and reliable memory module designed for the TSX Micro PLCs. A flash memory capacity of 512 KB ensures efficient storage while retaining data for up to 10 years.
Description
| Note | The Schneider Electric TSXMRPC007M is a flash memory expansion module crafted with TSX Micro PLCs. It offers a generous memory capacity of 512 KB to support various automation tasks. Operating temperatures range from 0°C to 60°C, while storage temperatures can drop to -25°C and reach up to 70°C. Designed to withstand specific environmental challenges, this module features a humidity tolerance of 5% to 95%, maintaining function in non-condensing conditions. It ensures durability through shock resistance rated at 15 g for 11 milliseconds and can tolerate vibrations with a peak-to-peak movement of 1.5 mm from 3 Hz to 13 Hz. Measuring a compact size of 35 mm x 90 mm x 60 mm, this module is lightweight at only 0.1 kg, making it suitable for applications with space constraints. The TSXMRPC007M employs DIN rail mounting, enabling straightforward installation within control panels. Its low power consumption of just 0.5 watts enhances its efficiency in various setups. This module's data retention spans up to 10 years. With a write endurance rated for 100,000 cycles, it ensures reliability for frequent data updates. Additionally, it meets several industry certifications, including CE, UL, and CSA, confirming its adherence to rigorous standards. |
|---|---|
| Range of Product | Modicon Premium Automation platform Accessory / separate part designation Configurable SRAM application/file memory extension Accessory / Separate Part Type Memory extension Product or Component Type SRAM memory |
| Accessory / separate part category | Separate parts Accessory / separate part destination Processor |
Complementary
| Product Compatibility | TSX57C. TSX570. to TSX576. TSXPCI572./3. Memory type SRAM |
|---|---|
| Memory capacity | 192...7168 kB application 6976...0 kB data storage Slot Slot 0 |
| Net Weight | 0.168 lb(US) (0.076 kg) |
Ordering and shipping details
| Category | US1PC2222558 |
|---|---|
| Discount Schedule | PC22 GTIN 3595862064552 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.0 in (2.5 cm) |
| Package 1 Width | 3.5 in (9.0 cm) |
| Package 1 Length | 5.1 in (13.0 cm) |
| Package weight(Lbs) | 3.0 oz (85.0 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
