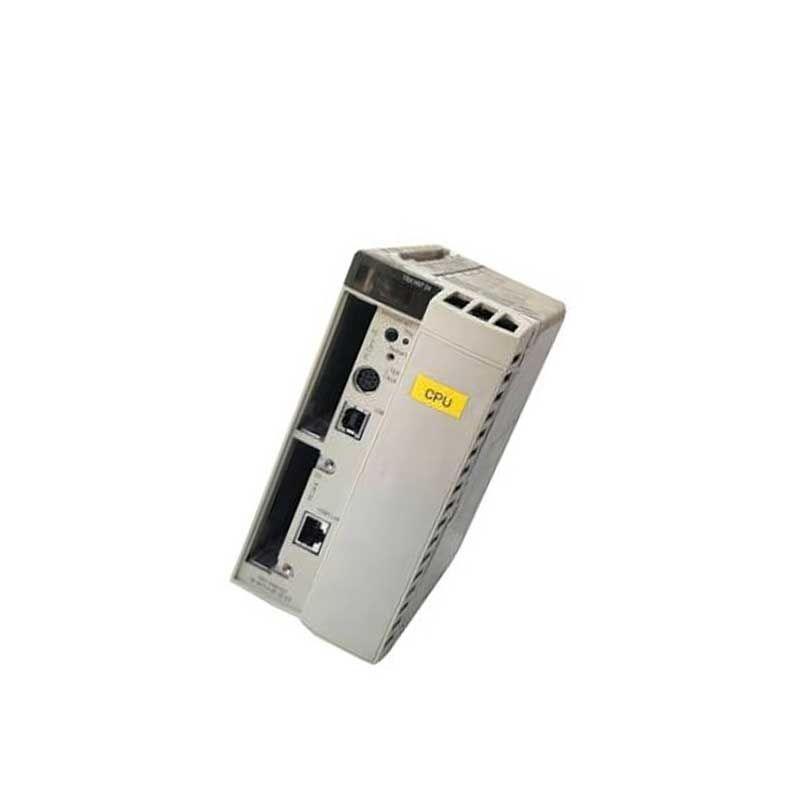

TSXH5724M
Schneider Electric
Overview
The TSXH5724M is an Unity Hot Standby processor in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As an unity hot standby processor, the TSXH5724M is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXH5724M, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXH5724M?
The TSXH5724M is an unity hot standby processor in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Unity Hot Standby processor.
What are the key technical ratings of the TSXH5724M?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXH5724M mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXH5724M compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXH5724M?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXH5724M from Schneider Electric represents a highly capable micro PLC from the TSX Micro PLCs series. Designed for various automation tasks, it supports significant I/O capacities and multiple integrated connection options.
Complementary
| Number of racks | 1 6/8/12 slots |
|---|---|
| Number of slots | 6 8 12 |
| Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s) |
| Ethernet TCP/IP RJ45 | USB port USB type A12 Mbit/s) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication module processor capacity | 2 |
| Memory description | Internal RAM (with PCMCIA card) 192 kB data Internal RAM (with PCMCIA card) 768 kB program Internal RAM (without PCMCIA card) 192 kB program and data |
| PCMCIA card 16384 kB additional data storage | N/A |
| Maximum size of object areas | 192 kB data exchanged via CPU Sync link 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data 8056 %Mi located internal bits Unlimited (DFB and EFB function blocks) unlocated internal data Unlimited (elementary and derived data) unlocated internal data |
| Application structure | 1 master task |
| Execution time per instruction | 0.039...0.057 µs Boolean without PCMCIA card 0.048...0.057 µs Boolean with PCMCIA card 0.054...0.073 µs word or fixed-point arithmetic with PCMCIA card 0.054...0.073 µs word or fixed-point arithmetic without PCMCIA card 0.055...0.063 µs floating points with PCMCIA card 0.055...0.063 µs floating points without PCMCIA card |
| Number of instructions per ms | 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 15.75 Kinst/ms 100 % Boolean with PCMCIA card 15.75 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 1 ms master task |
| Marking | CE |
| Local signalling | 1 LED (green) for Ethernet TCP/IP port ready (RUN) 1 LED (green) for processor running (RUN) 1 LED (red) for collision detection (COL) 1 LED (red) for Ethernet TCP/IP port fault (ERR) 1 LED (red) for I/O module or configuration fault (I/O) 1 LED (red) for processor or system fault (ERR) 1 LED (yellow) for activity on TER or AUX terminal port (TER) 1 LED (yellow) for Ethernet link diagnostics (STS) 1 LED (yellow) for reception activity (RX) 1 LED (yellow) for transmission activity (TX) |
| Current consumption | 1880 mA 5 V DC |
| Module format | Double |
| Net Weight | 1.23 lb(US) (0.56 kg) |
Environment
| Standards | N/A |
|---|---|
| CSA C22.2 No 213 Class I Division 2 Group D | 92/31/EEC |
| CSA C22.2 No 213 Class I Division 2 Group B | UL 508 89/336/EEC 93/68/EEC |
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 142 | 73/23/EEC IEC 61131-2 |
| CSA C22.2 No 213 Class I Division 2 Group C | N/A |
| Product Certifications | RINA ABS LR RMRS DNV GL BV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3595863921243 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.7 in (9.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 2.38 lb(US) (1.08 kg) |
Description
| Note | The Schneider Electric TSXH5724M is a powerful micro PLC that meets diverse industrial automation needs. This compact controller supports a single rack configuration that holds between 6 and 12 slots, accommodating varied setup requirements. With a discrete I/O processing limit of 1024 I/O and an additional capacity for 80 analog I/O points, the TSXH5724M facilitates substantial input and output capabilities. Regarding functional versatility, the unit houses up to 24 application-specific channels and provides up to 10 process control channels to manage as many as 30 straightforward loops. Communication is streamlined via integrated connection types, including Ethernet TCP/IP (RJ45), a USB port for fast data exchange, and a serial link (female mini-DIN RS485) supporting 19.2 kbit/s. Memory management is further enhanced with a PCMCIA card that allows for an additional 16384 kB of data storage. When a PCMCIA card is installed, internal RAM runs at 768 kB for programs and 192 kB for data. Without a PCMCIA card, the RAM limits include 192 kB split equally between programs and data. Performance-wise, the execution times for various instruction types range from 0.039 µs to 0.073 µs, depending on whether a PCMCIA card is present. The controller can handle 11.4 Kinst/ms for combined Boolean and fixed arithmetic operations or 15.75 Kinst/ms for pure Boolean operations. The system overhead is maintained at a master task duration of 1 millisecond. CE certification markings indicate compliance with applicable standards, and the controller supports Ethernet connection options at 10BASE-T/100BASE-TX speeds. For object area exchanges, a maximum size of 192 kB is specified via the CPU Sync link, while the device has a protective treatment classified as TC. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
