TSXFPC10
Schneider Electric
Overview
The TSXFPC10 is a FIPWAY/FIPIO Interface Board in the TSX Micro PLCs range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a fipway/fipio interface board, the TSXFPC10 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is Range 10% to 90% non-condensing; store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXFPC10, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXFPC10?
The TSXFPC10 is a fipway/fipio interface board in the TSX Micro PLCs range from Schneider Electric. It is described by the manufacturer as: FIPWAY/FIPIO Interface Board.
What are the key technical ratings of the TSXFPC10?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TSXFPC10 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXFPC10 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXFPC10?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXFPC10 is a specialized interface board designed for FIPWAY and FIPIO connectivity. This board operates within an ISA bus framework and is appropriate for handling a wide range of addresses.
Description

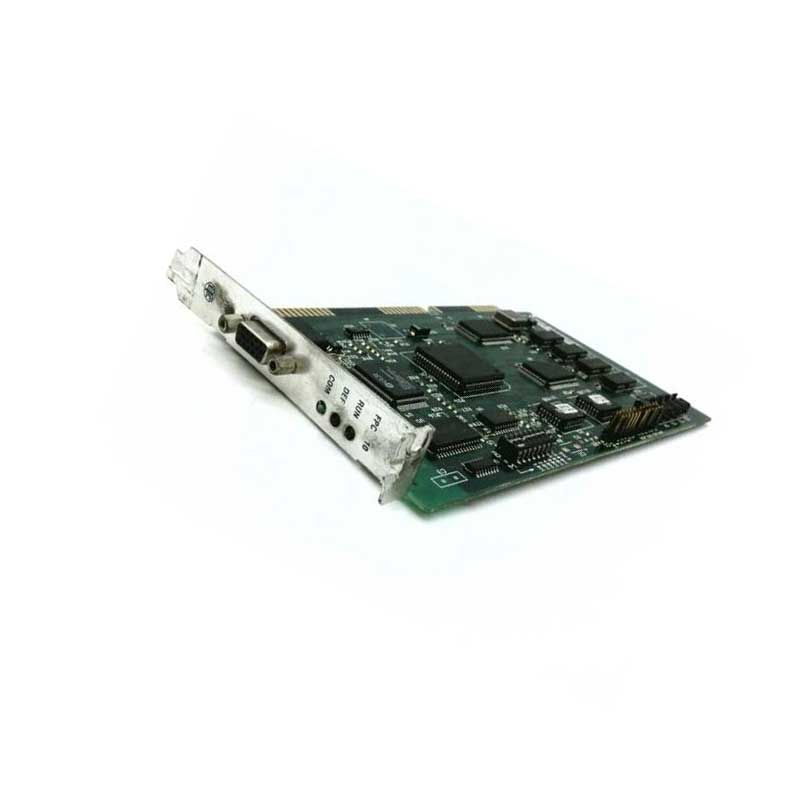

| Note | The TSXFPC10 interface board by Schneider Electric is crafted specifically for FIPWAY and FIPIO networks. Utilizing the ISA (Industry Standard Architecture) bus type, it allows integration into established systems seamlessly. The network address range spans from 0 to 127, enabling extensive communication capabilities. Additionally, it supports a station address range of 0 to 63. Configuration options are a key feature, with the ability to adjust I/O address ranges, IRQ levels, and DMA channels to fit specific application needs. This flexibility ensures that the board can adapt to various operational requirements. Operating temperatures should be maintained between 0°C and 60°C, ensuring optimal functionality, while the humidity range allows operation in conditions from 10% up to 90% without condensation. Physical dimensions are compact at 80.96 mm x 106.68 mm x 12.7 mm, making the TSXFPC10 easy to integrate into existing setups. Power is supplied through the ISA bus with a 5V DC requirement. The presence of status LEDs facilitates monitoring of both communication and power status, adding to the usability of the board. Additionally, the TSXFPC10 complies with CE, UL, and CSA standards, affirming its reliability and safety for use in various environments. |
|---|
