TSXDSZ32T2
Schneider Electric
Overview

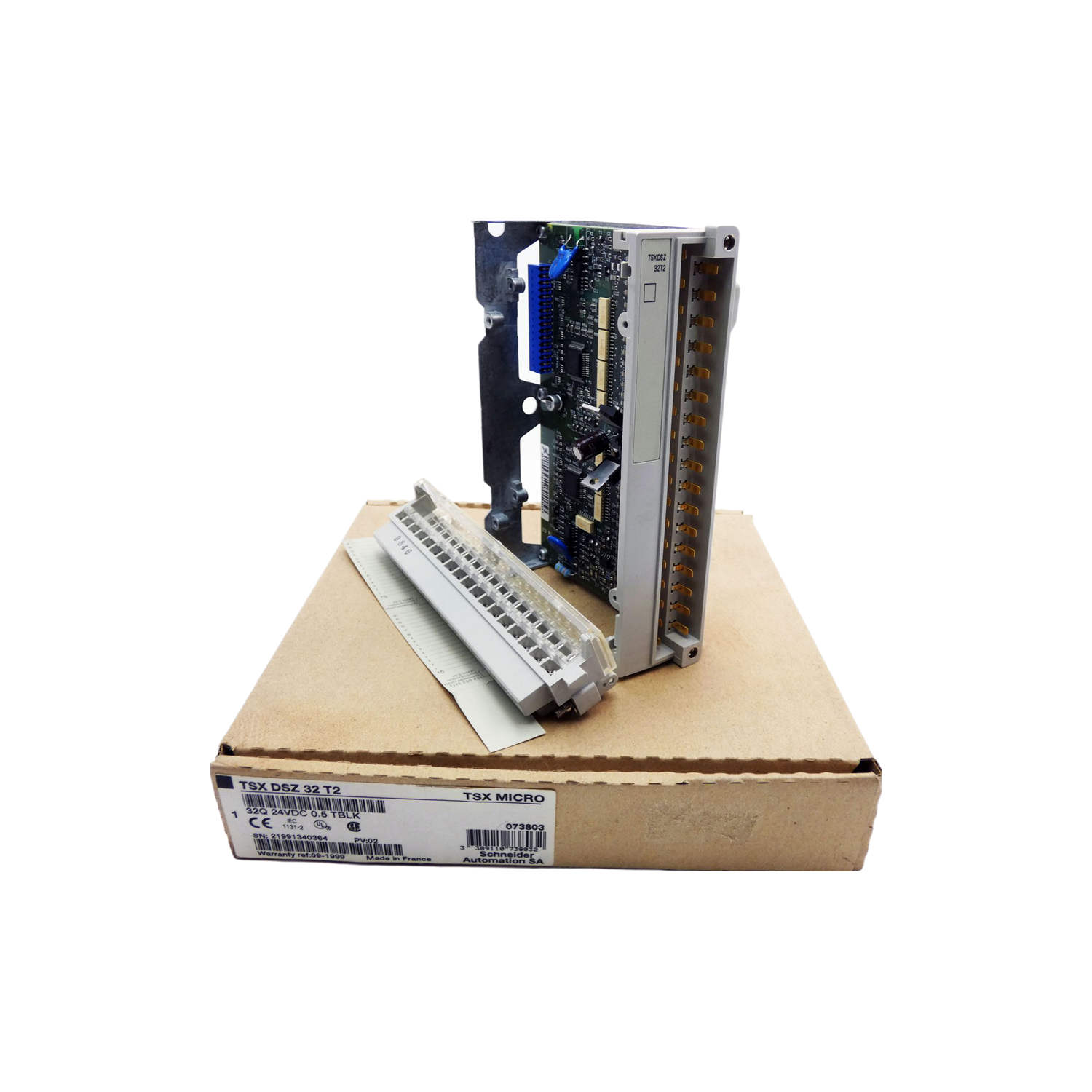

The TSXDSZ32T2 is a Discrete output module in the Modicon TSX Micro automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a discrete output module, the TSXDSZ32T2 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include discrete signal handling, a 24 VDC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXDSZ32T2, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXDSZ32T2?
The TSXDSZ32T2 is a discrete output module in the Modicon TSX Micro automation platform range from Schneider Electric. It is described by the manufacturer as: Discrete output module.
What are the key technical ratings of the TSXDSZ32T2?
Its published highlights include 24 VDC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXDSZ32T2 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXDSZ32T2 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXDSZ32T2?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXDSZ32T2 from Schneider Electric functions as a discrete output module within the TSX Micro PLC series. Designed to manage relay outputs, it provides a robust interface with 32 outputs that operate at 24 VDC.
Complementary
| Output voltage limits | 19...30 V Output current limits 0.625 A |
|---|---|
| Maximum leakage current | 0.5 mA at state 0 [Ures] residual voltage 0.3 V |
| Load impedance ohmic | 48 Ohm |
| Response time | < 0.5 ms at state 1 < 0.5 ms at state 0 |
| Switching frequency | < 0.6/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | Thermal circuit breaker Current limiter |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum |
| Current consumption | 94 mA |
| Power dissipation in W | 0.15 W by channel 3.2 W by module |
| Isolation voltage | 1500 V for 1 s |
| Net weight | 0.42 kg |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.7 cm |
| Package 1 Width | 18.2 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 552.0 g |
Description
| Note | The TSXDSZ32T2 output module from Schneider Electric's TSX Micro PLC lineup is engineered for discrete signal management with up to 32 relay-based outputs. Each output operates at a standard voltage of 24 VDC, with a defined current of 0.5 mA per channel. The unit supports an acceptable voltage range between 19 and 30 VDC, allowing for flexibility in various applications. A maximum output current limit of 0.625 mA ensures that operational parameters are maintained within safety thresholds. For enhanced durability, the TSXDSZ32T2 incorporates a Zener diode, providing over-voltage protection to safeguard the module against power fluctuations. The output short circuit protection is managed via a thermal circuit breaker and current limiter, ensuring critical safeguards during operation. In terms of leakage, the maximum leakage current at a state of 0 is limited to 0.5 mA, maintaining system integrity. Connections are facilitated via screw terminal blocks, making installation straightforward. Furthermore, the module allows for the paralleling of outputs, accommodating a maximum of two outputs if required. With a current consumption of 94 mA, the power dissipation per channel is minimal at 0.15W, resulting in an overall module power dissipation of 3.2W. This output module is thus well-suited for efficient and reliable operation in controlling processes across a variety of automated systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
