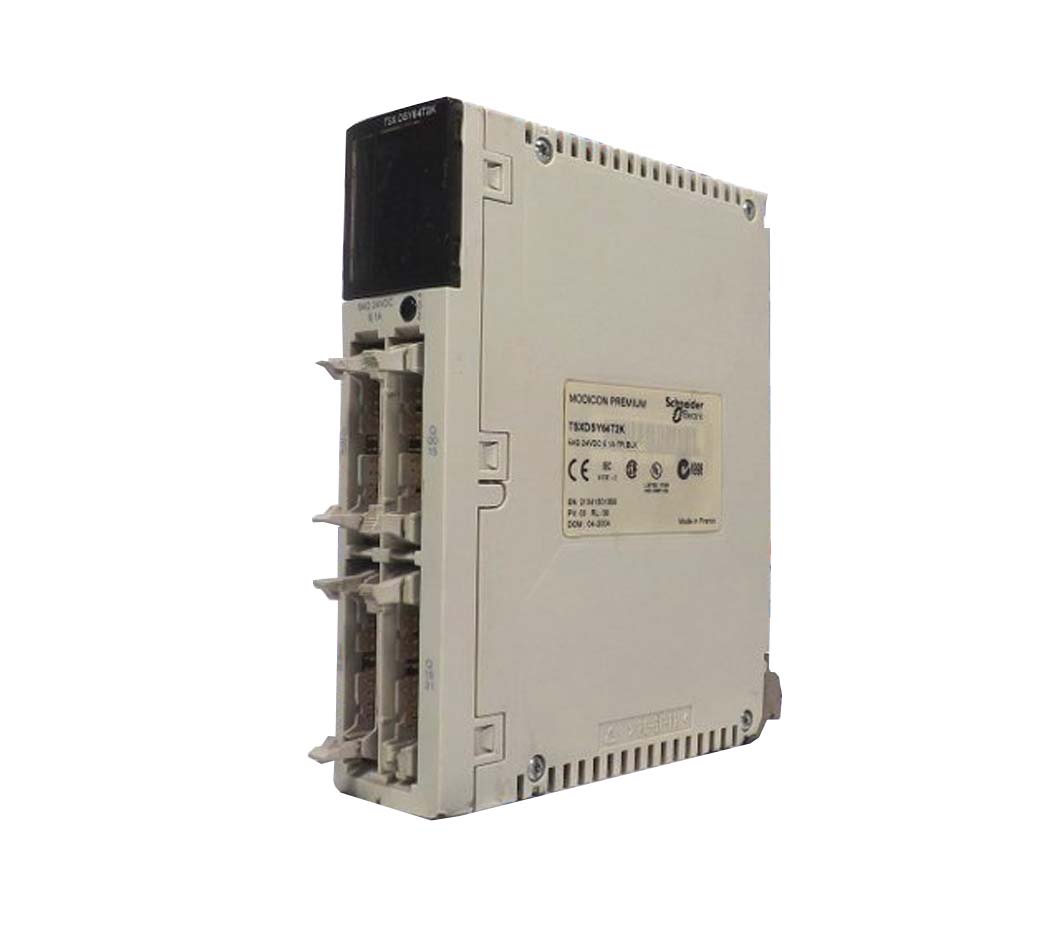

TSXDSY64T2K
Schneider Electric
Overview
The TSXDSY64T2K is a Discrete output module in the Modicon Premium Automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a discrete output module, the TSXDSY64T2K is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXDSY64T2K, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXDSY64T2K?
The TSXDSY64T2K is a discrete output module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Discrete output module.
What are the key technical ratings of the TSXDSY64T2K?
Its published highlights include operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXDSY64T2K mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXDSY64T2K compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXDSY64T2K?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXDSY64T2K is a solid-state protected module with 64 discrete outputs, specifically designed for 24 V DC positive systems within the Schneider Electric TSX Micro PLC range. It offers comprehensive protection features, including short-circuit, overload, and reverse polarity safeguards.
Description
| Note | The Schneider Electric TSXDSY64T2K module is a flexible solution for applications requiring multiple discrete outputs. Specifically designed for 24 V DC systems, it comprises 64 solid-state outputs, enabling precise control in various automation scenarios. With a maximum current rating of 0.1 A per output channel and an aggregate capacity of up to 5 A across the module, it is suitable for diverse operational requirements. Each output keeps leakage current below 0.1 mA at 30 V, ensuring efficient power usage. Maneuvering through switching demands, the module activates with a swift response time of 1.2 ms, maintaining operational integrity. Protection mechanisms enhance the TSXDSY64T2K's reliability. It features transit diodes for output overvoltage protection and includes reverse polarity safeguards through reverse-mounted diodes. Furthermore, short-circuit and overload situations trigger automatic trip mechanisms, ensuring safety and preventing damage to connected devices. In addition, the module supports paralleled outputs, allowing up to three outputs to work in unison, thus enhancing versatility in system design. It accommodates a maximum load of 1.2 W for applications requiring tungsten loads and ensures appropriate load impedance above 220 W. The residual voltage is kept under 1.5 V, ensuring minimal residual energy is present after switching. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Discrete output module |
| Discrete output number | 64 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive EN/IEC 61131-2 19...30 V |
Complementary
| Current per channel | 0.1 A |
|---|---|
| Maximum current per module | 5 A |
| Maximum leakage current | 0.1 mA 30 V |
| Maximum tungsten load | 1.2 W [Ures] residual voltage 1.5 V |
| Response time | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Automatic trip |
| Short-circuit protection | Automatic trip Minimum load impedance 220 W at state 1 isalotion resistance > 10 MOhm 500 V |
| Power dissipation | (2.4 W + 0.1 W x No of outputs) |
| Product Compatibility | Dial and Power |
| Marking | CE |
| Electrical connection | 4 connectors HE-10 |
| Current consumption | 155 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.79 lb(US) (0.36 kg) |
Environment
| Dielectric strength | 1500 V 50/60 Hz 60 s |
|---|---|
| Standards | UL 508 |
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 213 Class I Division 2 Group C | 93/68/EEC 89/336/EEC IEC 61131-2 |
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 Class I Division 2 Group B | 92/31/EEC |
| CSA C22.2 No 213 Class I Division 2 Group D | 73/23/EEC |
| Product Certifications | RINA DNV BV ABS GL RMRS LR |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | US1PC2222558 |
|---|---|
| Discount Schedule | PC22 GTIN 3389110725582 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 17.7 oz (503.0 g) |
