TSXDEY16D2
Schneider Electric
Overview

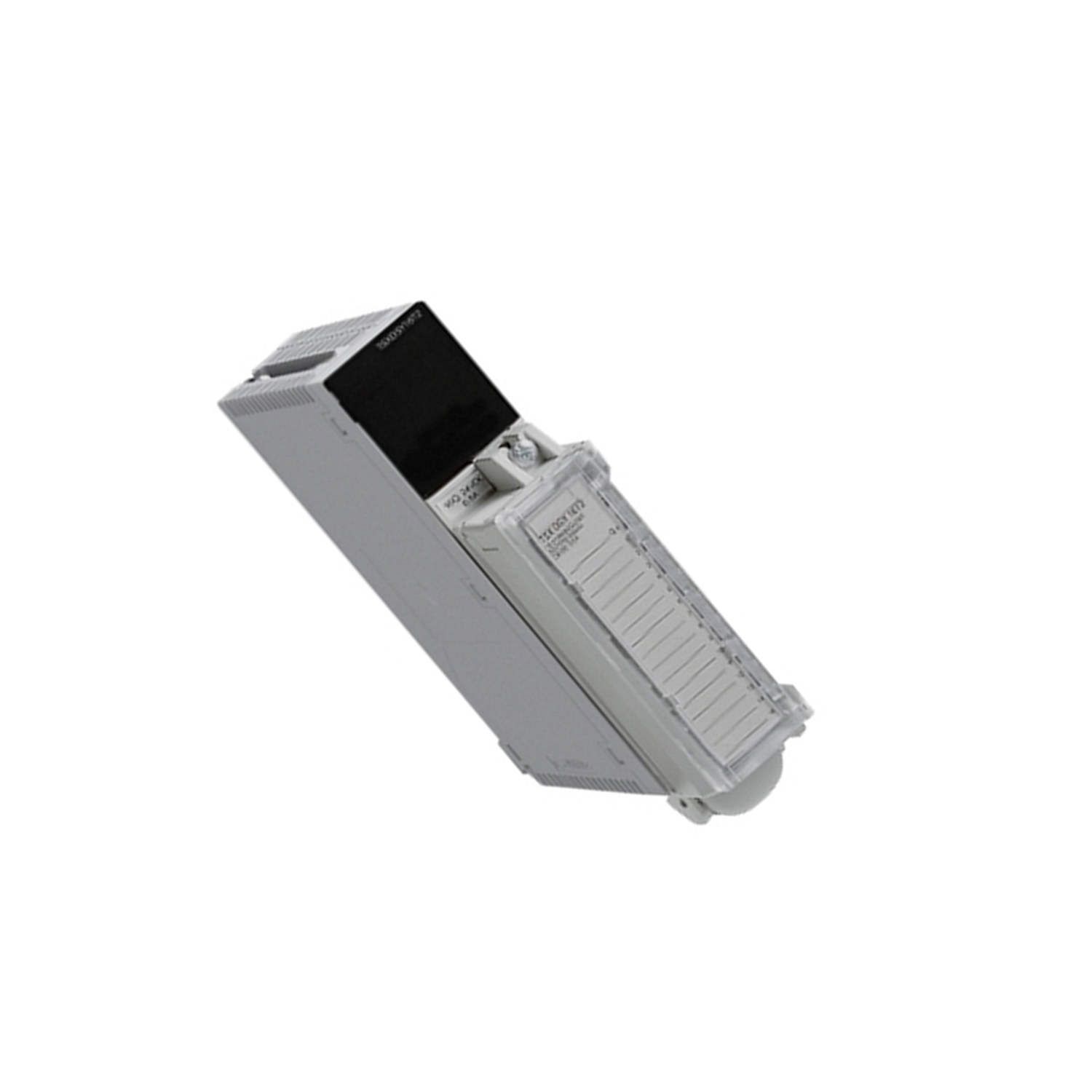

The TSXDEY16D2 is an automation component in the Modicon Premium / TSX range from Schneider Electric. Discrete Input Module Modicon Premium 16-point DC 24V.
Application & Technical Notes
As a modicon premium / tsx device, the TSXDEY16D2 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 24 V DC (field) + 5 V DC (backplane) rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXDEY16D2, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXDEY16D2?
The TSXDEY16D2 is a modicon premium / tsx device in the Modicon Premium / TSX range from Schneider Electric. It belongs to the Modicon Premium / TSX automation family.
What are the key technical ratings of the TSXDEY16D2?
Its published highlights include 24 V DC (field) + 5 V DC (backplane). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXDEY16D2 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXDEY16D2 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXDEY16D2?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Discrete Input Module Modicon Premium 16-point DC 24V
I/O Specifications
| Channels | 16 points (2 groups × 8) |
|---|---|
| Signal type | DC input, sink (negative logic) |
| Voltage range | 24 V DC |
| Input current | 7 mA (state 1 per channel) |
| Isolation | Channel-to-bus: 1500 V AC dielectric; isolation resistance >10 MΩ @ 500 V |
| Response time | 4 ms (typical) |
| Slots required | 1 |
Electrical
| Supply voltage | 24 V DC (field) + 5 V DC (backplane) |
|---|---|
| Bus current | 80 mA @ 5 V DC |
| Power consumption | 0.97 W |
Environmental
| Operating temperature | Not available |
|---|---|
| Storage temperature | Not available |
| Relative humidity | Not available |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 140 × 35 × 80 mm |
|---|---|
| Weight | 0.15 kg |
Lifecycle
| Discontinued (Last verified | 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
