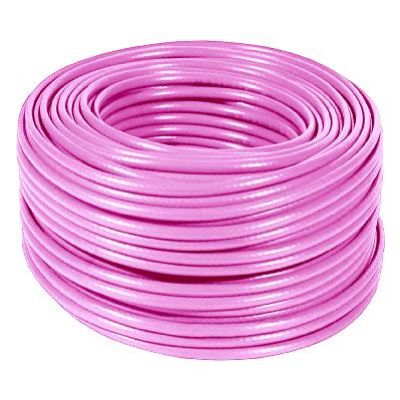

TSXCANCA300
Schneider Electric
Overview
The TSXCANCA300 is a CANopen cable in the CANopen range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a canopen cable, the TSXCANCA300 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXCANCA300, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXCANCA300?
The TSXCANCA300 is a canopen cable in the CANopen range from Schneider Electric. It is described by the manufacturer as: CANopen cable.
What are the key technical ratings of the TSXCANCA300?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TSXCANCA300 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXCANCA300 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXCANCA300?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
CANopen standard cable - IP20 - IEC 60332-1 - 300 m
Main
| Range of Product | CANopen Bus type CANopen Product or Component Type CANopen cable |
|---|---|
| Accessory / separate part category | Connection accessories Accessory / Separate Part Type Connecting cable Accessory / separate part destination CANopen bus Cable length 984.3 ft (300 m) |
Complementary
| Marking | CE |
|---|---|
| Product Weight | 54.15 lb(US) (24.56 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|
Ordering and shipping details
| Category | US1PC1222531 |
|---|---|
| Discount Schedule | PC12 GTIN 3595862011914 |
| Returnability | No |
| Country of origin | IT |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 13.189 in (33.500 cm) |
| Package 1 Width | 15.551 in (39.500 cm) |
| Package 1 Length | 15.551 in (39.500 cm) |
| Package weight(Lbs) | 54.146 lb(US) (24.560 kg) |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 44.488 in (113.000 cm) |
| Package 2 Width | 31.496 in (80.000 cm) |
| Package 2 Length | 47.244 in (120.000 cm) |
| Package 2 Weight | 1000.899 lb(US) (454.000 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
