TSXASZ401
Schneider Electric
Overview

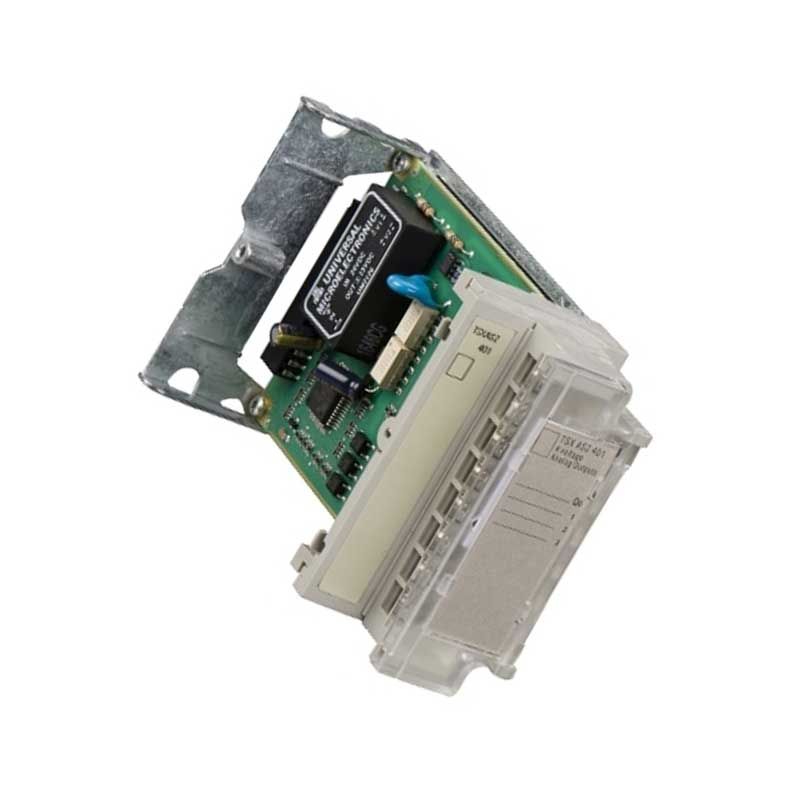

The TSXASZ401 is an Analog output module in the Modicon TSX Micro automation platform range from Schneider Electric. It provides 4 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog output module, the TSXASZ401 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include 4 channels. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXASZ401, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXASZ401?
The TSXASZ401 is an analog output module in the Modicon TSX Micro automation platform range from Schneider Electric. It is described by the manufacturer as: Analog output module.
What are the key technical ratings of the TSXASZ401?
Its published highlights include 4 channels. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXASZ401 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXASZ401 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXASZ401?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXASZ401 from Schneider Electric is an analog output module designed for use in the TSX Micro PLCs series. This module provides four channels for output, supports a response time of 400 microseconds, and functions with an output type of 0 to 10 V or +/- 10 V.
Main
| Range of product | Modicon TSX Micro automation platform Product or component type Analog output module Number of channels 4 |
|---|---|
| Analogue output type | +/- 10 V 0...10 V |
Complementary
| Note | Analog/digital conversion 11 bits 0...10 V 11 bits + sign +/- 10 V |
|---|---|
| Response time | 400 µs Output load >= 2 Ohm |
| Protection type | Short-circuit Temperature drift 0.096 %/10 °C |
| Current consumption | 90 mA |
| Isolation voltage | 1000 V AC |
| Net weight | 0.2 kg |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 636.0 g |
Description
| Note | The Schneider Electric TSXASZ401 analog output module is designed for precision control in automation environments. This compact module, weighing in at 0.2 kg, offers four distinct channels for output configuration. With a response time of just 400 microseconds, it is well-suited for applications needing prompt signal processing. The output capabilities of the TSXASZ401 include both 0 to 10 V and +/- 10 V options, catering to various control systems. The minimum output load requirement of 2 Ohms enhances its compatibility with a broad range of devices. This module adheres to RoHS standards, assuring compliance with environmental regulations. In terms of signal clarity, the analog output conversion is provided with an 11-bit resolution, applicable to both output types. Protection against short circuits is integrated into the design, providing an added layer of safety during operation. Temperature stability is assured with a drift of 0.096% for every 10 °C change. Current consumption is measured at 90 mA, keeping power usage efficient. Additionally, the module features an impressive isolation voltage of 1000 V AC, supporting its use in various demanding applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
