TSXASY800
Schneider Electric
Overview

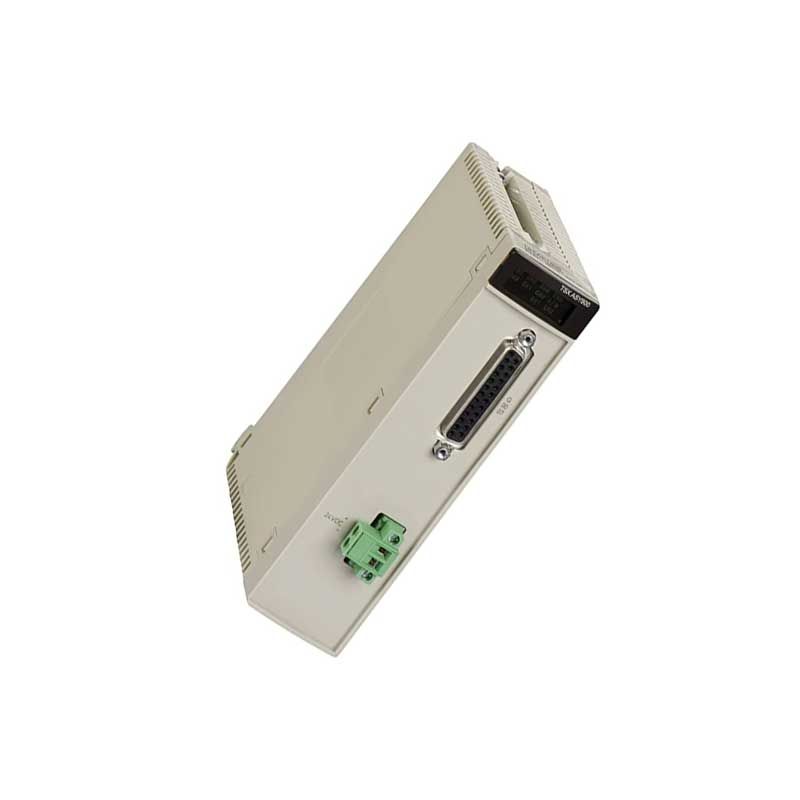

The TSXASY800 is an Analog output module in the Modicon Premium Automation platform range from Schneider Electric. It provides 8 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog output module, the TSXASY800 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include 8 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXASY800, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXASY800?
The TSXASY800 is an analog output module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Analog output module.
What are the key technical ratings of the TSXASY800?
Its published highlights include 8 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXASY800 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXASY800 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXASY800?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric TSXASY800 is part of the TSX Micro PLC series, featuring eight analog output channels. This module supports current and voltage outputs, with specific ranges of 0 to 10 volts and 0 to 20 milliamps.
Complementary
| Note | Conversion time 5 ms Measurement resolution 1.28 mV +/- 10 V 2.56 µA 0...20 mA 2.56 µA 4...20 mA |
|---|---|
| Electrical Connection | 1 SUB-D 25 connector |
| Measurement error | 0.14 % of full scale +/- 10 V 25 °C 0.21 % of full scale 0...20 mA 25 °C 0.21 % of full scale 4...20 mA 25 °C 0.28 % of full scale +/- 10 V 0...60 °C 0.52 % of full scale 0...20 mA 0...60 °C 0.52 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels | Common point |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Protection Type | N/A |
| Short-circuit protection | Overload protection |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA < 600 Ohm 4...20 mA > 1000 Ohm +/- 10 V Maximum load inductance 300 µH Maximum load capacitance 0.1 µF |
| Marking | CE |
| Current consumption | 200 mA 5 V DC 300 mA 24 V DC |
| Module format | Standard Terminals description PLC n°1 (16)OUT_ANA_CUR#1 (13)IN_ANA_STD# (24)OUT_ANA_VOLT#7 (8)OUT_ANA_CUR#4 (20)OUT_ANA_COM#4 (1)OUT_ANA_VOLT#0 (17)OUT_ANA_COM#2 (4)OUT_ANA_VOLT#2 (9)OUT_ANA_COM#5 (11)OUT_ANA_CUR#6 (19)OUT_ANA_CUR#3 PW_NEG# (25)OUT_ANA_CUR#7 (3)OUT_ANA_COM#1 (12)OUT_ANA_COM#7 (5)OUT_ANA_CUR#2 (6)OUT_ANA_COM#3 (15)OUT_ANA_VOLT#1 (18)OUT_ANA_VOLT#3 (22)OUT_ANA_CUR#5 (10)OUT_ANA_VOLT#6 PW_POS# (14)OUT_ANA_COM#0 (23)OUT_ANA_COM#6 (2)OUT_ANA_CUR#0 (7)OUT_ANA_VOLT#4 (21)OUT_ANA_VOLT#5 |
| Net Weight | 1.01 lb(US) (0.46 kg) |
Environment
| Standards | 93/68/EEC |
|---|---|
| CSA C22.2 No 213 Class I Division 2 Group A | N/A |
| CSA C22.2 No 142 | 73/23/EEC |
| CSA C22.2 No 213 Class I Division 2 Group B | 89/336/EEC |
| CSA C22.2 No 213 Class I Division 2 Group D | UL 508 IEC 61131-2 92/31/EEC |
| CSA C22.2 No 213 Class I Division 2 Group C | N/A |
| Product Certifications | BV RINA DNV LR ABS RMRS GL |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110876369 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 16.4 oz (465.0 g) |
Description
| Note | The TSXASY800, manufactured by Schneider Electric, is a component from the TSX Micro PLCs line designed for intricate process control. This module accommodates eight analog output channels, which can output either voltage or current signals. Its output voltage range extends from 0 to 10 volts, and the range for current output is established from 0 to 20 milliamps. Resolution for the signals generated by this module is set at a precise 12 bits, ensuring an accurate representation of the desired output variables. Additionally, it boasts an impressive accuracy of ±0.1% of full scale, effectively minimizing deviations from expected performance. For current outputs, a minimum load impedance of 500 ohms is recommended. This requirement guarantees that the system operates optimally without unwanted signal degradation. The module’s compact dimensions of 125 x 100 x 40 mm make it suitable for space-constrained installations. When considering environmental tolerances, the TSXASY800 performs within a 5 to 95% humidity range without condensation. In terms of temperature, it operates efficiently between 0 and 60°C and can withstand storage temperatures as low as -40°C and as high as 85°C. The TSXASY800 requires a 24 V DC supply and consumes 5 watts during operation. For enhanced safety, this module features an isolation rating of 500 volts between channels and ground, reducing the risk of electrical interference. The response time per channel is quick, clocking in at a mere 1 millisecond, thus ensuring timely output changes in most control applications. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
