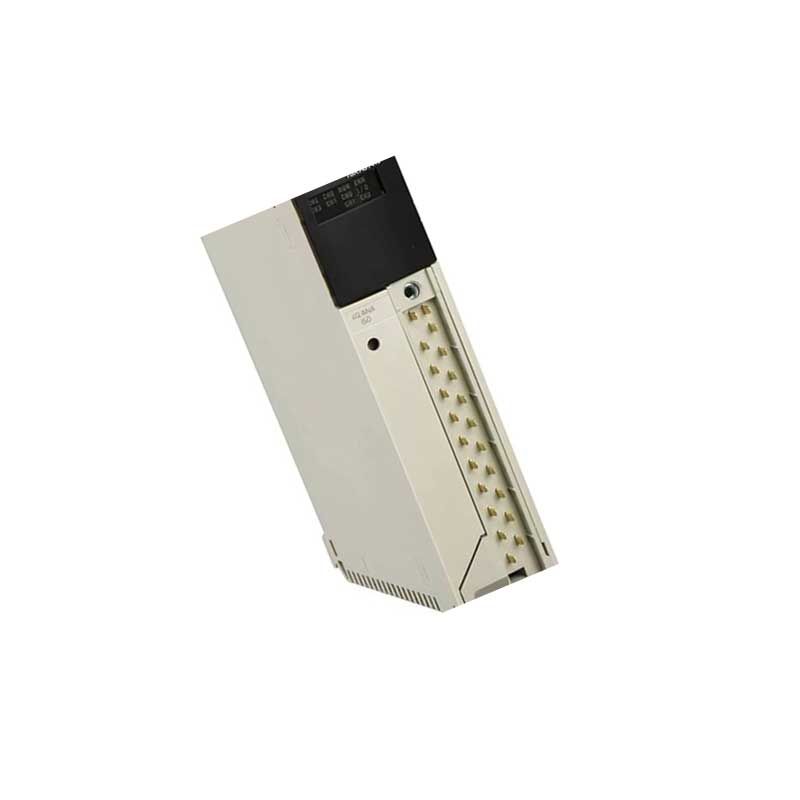

TSXASY410
Schneider Electric
Overview
The TSXASY410 is an Analog output module in the Modicon Premium Automation platform range from Schneider Electric. It provides 4 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog output module, the TSXASY410 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include 4 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXASY410, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXASY410?
The TSXASY410 is an analog output module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Analog output module.
What are the key technical ratings of the TSXASY410?
Its published highlights include 4 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXASY410 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXASY410 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXASY410?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXASY410 from Schneider Electric is designed as part of the TSX Micro PLCs series. This unit, weighing 200 grams, is built to handle various industrial automation tasks efficiently with a compact size of 125 x 100 x 40 mm.
Complementary
| Note | Conversion time 2.5 ms Measurement resolution 10.25 µA 0...20 mA 10.25 µA 4...20 mA 5.12 mV +/- 10 V |
|---|---|
| Electrical Connection | Screw terminal block |
| Measurement error | 0.45 % of full scale +/- 10 V 25 °C 0.52 % of full scale 0...20 mA 25 °C 0.52 % of full scale 4...20 mA 25 °C 0.75 % of full scale +/- 10 V 0...60 °C 0.98 % of full scale 0...20 mA 0...60 °C 0.98 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels | 1500 Vrms |
| Isolation between channels and bus | 1500 Vrms |
| Isolation between channels and ground | 500 V |
| Protection Type | Overload protection |
| Short-circuit protection | N/A |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA < 600 Ohm 4...20 mA > 1000 Ohm +/- 10 V Maximum load inductance 300 µH Maximum load capacitance 0.1 µF |
| Marking | CE |
| Current consumption | 900 mA 5 V DC |
| Module format | Standard Terminals description PLC n°1 (14)OUT_ANA_SHIELD# (19)OUT_ANA_SHIELD# (18)OUT_ANA_CUR#3 (1)OUT_ANA_VOLT#0 (5)OUT_ANA_SHIELD# (16)OUT_ANA_VOLT#3 (15)OUT_ANA_SHIELD# (11)OUT_ANA_VOLT#2 (12)OUT_ANA_COM#2 (20)OUT_ANA_SHIELD# (6)OUT_ANA_VOLT#1 (7)OUT_ANA_COM#1 (2)OUT_ANA_COM#0 (13)OUT_ANA_CUR#2 (4)OUT_ANA_SHIELD# (8)OUT_ANA_CUR#1 (9)OUT_ANA_SHIELD# (3)OUT_ANA_CUR#0 (17)OUT_ANA_COM#3 (10)OUT_ANA_SHIELD# |
| Net Weight | 0.77 lb(US) (0.35 kg) |
Environment
| Standards | N/A |
|---|---|
| CSA C22.2 No 213 Class I Division 2 Group B | N/A |
| CSA C22.2 No 213 Class I Division 2 Group C | N/A |
| CSA C22.2 No 142 | 92/31/EEC 89/336/EEC |
| CSA C22.2 No 213 Class I Division 2 Group A | 93/68/EEC IEC 61131-2 73/23/EEC |
| CSA C22.2 No 213 Class I Division 2 Group D | UL 508 |
| Product Certifications | GL ABS RINA DNV RMRS LR BV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110748031 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 16.0 oz (453.0 g) |
Description
| Note | The TSXASY410 module from Schneider Electric fits into the TSX Micro PLCs range. It measures 125 mm in width, 100 mm in height, and 40 mm in depth. At just 200 grams, this unit is lightweight yet durable, designed for operational stability in diverse environments. This component can function effectively in settings with a humidity level of 5% to 95%, free from condensation. It can withstand storage temperatures down to -40°C and operates from 0°C to 60°C during use. Powering the device requires a 24 V DC supply, ensuring efficient operation with a low power consumption of only 3 W. The TSXASY410 boasts a rapid response time of 1 millisecond per channel, which is suitable for applications that require immediate feedback. It provides four analog output channels, with a minimum load impedance of 2 kΩ for voltage output and a maximum of 500 Ω for current output. Users can expect a current output range of 0 to 20 mA and a voltage output range of 0 to 10 V from this module. Designed for precision, it maintains an accuracy of ±0.2% of full scale coupled with a resolution of 12 bits. The flexibility in output type allows it to cater to various applications, whether voltage or current output is needed. Overall, the TSXASY410 is designed for high-performance tasks in automation, ensuring measurement reliability and precision. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
