TSXAEY800
Schneider Electric
Overview

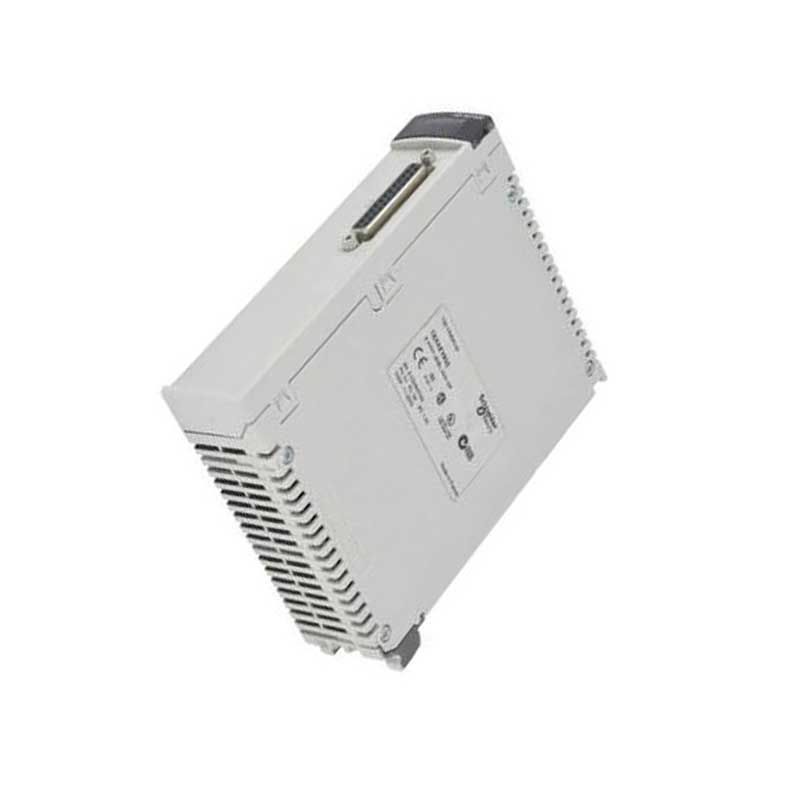

The TSXAEY800 is an Analog input module in the Modicon Premium Automation platform range from Schneider Electric. It provides 8 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog input module, the TSXAEY800 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 8 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXAEY800, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXAEY800?
The TSXAEY800 is an analog input module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Analog input module.
What are the key technical ratings of the TSXAEY800?
Its published highlights include 8 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXAEY800 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXAEY800 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXAEY800?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXAEY800 model from Schneider Electric is a reliable analog input module designed for use within the TSX Micro PLCs series. It can handle various input types while ensuring effective performance and protection across different applications.
Complementary
| Nominal read cycle time | 27 ms Fast read cycle time 3 ms + 3 ms x number of channels used |
|---|---|
| Measurement error | 0.15 % of full scale 0...5 V 25 °C 0.15 % of full scale 1...5 V 25 °C 0.19 % of full scale +/- 10 V 25 °C 0.19 % of full scale 0...10 V 25 °C 0.22 % of full scale +/- 10 V 0...60 °C 0.22 % of full scale 0...10 V 0...60 °C 0.22 % of full scale 0...5 V 0...60 °C 0.22 % of full scale 1...5 V 0...60 °C 0.25 % of full scale 0...20 mA 25 °C 0.25 % of full scale 4...20 mA 25 °C 0.41 % of full scale 0...20 mA 0...60 °C 0.41 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Isolation between channels | Common point Common mode between channels None |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm |
| Electrical connection | 1 connector SUB-D 25 Overcurrent -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 270 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.68 lb(US) (0.31 kg) |
Environment
| Standards | IEC 1131 |
|---|---|
| Product Certifications | DNV RINA GL BV LR RMRS ABS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | US1PC2222558 |
|---|---|
| Discount Schedule | PC22 GTIN 3389110747638 |
| Returnability | No |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 7.087 in (18.000 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package weight(Lbs) | 15.697 oz (445.000 g) |
Description
| Note | Schneider Electric's TSXAEY800 is an efficient analog input module intended for integration with TSX Micro PLCs. This unit is rated IP20 for its protection level, making it suitable for indoor use. It accommodates up to eight high-level inputs, facilitating significant flexibility in application. The module supports multiple input types, including both current (0-20 mA, 4-20 mA) and voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V), providing a comprehensive solution for diverse measurement needs. The current draw for this device is specified at 270 mA when powered at 5 V DC. For added reliability, the TSXAEY800 includes input overvoltage protection, rated at -15 to +15 V for state 0 and -30 to +30 V for state 1. The module delivers exceptional isolation performance, with ratings of 1000 Vrms between channels and the bus, as well as between channels and ground. This guards against interference and ensures accurate readings. With a quick read cycle time of 3 ms, plus an additional 3 ms for each utilized channel, the overall nominal read cycle time reaches 27 ms. The module features 12-bit analog-to-digital conversion, ensuring your input data is precise. Operational conditions can range from 0 to 60 °C, while its storage tolerances extend from -25 to 70 °C, permitting versatility in varied environments. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
