TSXAEY414
Schneider Electric
Overview

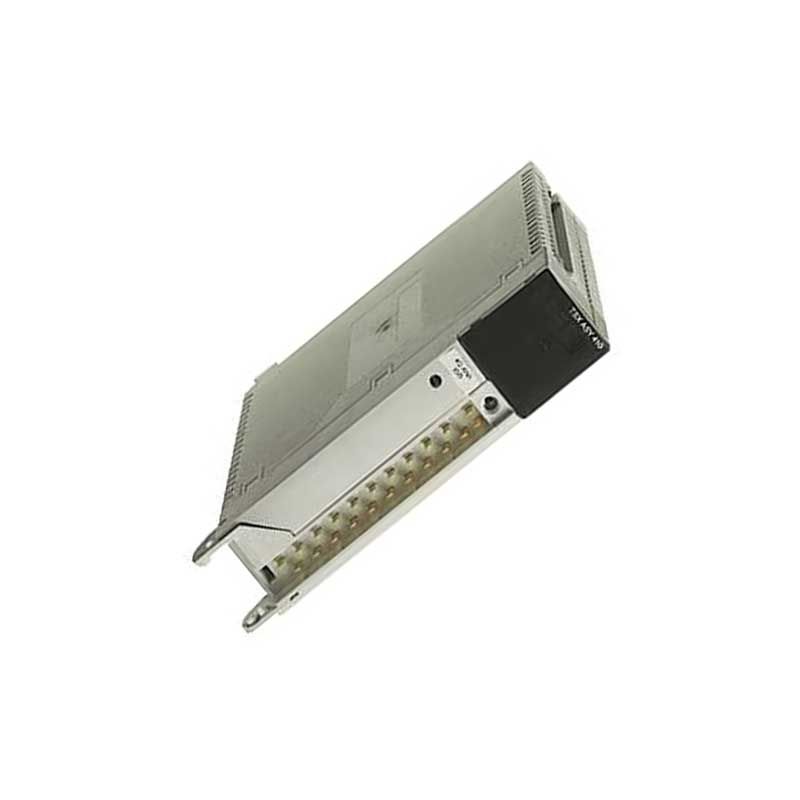

The TSXAEY414 is an Analog input module in the Modicon Premium Automation platform range from Schneider Electric. It provides 4 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog input module, the TSXAEY414 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 4 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10 to 95% without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXAEY414, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXAEY414?
The TSXAEY414 is an analog input module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Analog input module.
What are the key technical ratings of the TSXAEY414?
Its published highlights include 4 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXAEY414 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXAEY414 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXAEY414?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXAEY414 from Schneider Electric is a TSX Micro PLC equipped for diverse input types. It supports a range of measurements and features comprehensive voltage isolation, ensuring high operational integrity.
Description
| Note | The Schneider Electric TSXAEY414 module is part of the TSX Micro PLCs series, designed to perform well in a variety of measurement applications. It manages common mode voltages reaching 415 V AC or 200 V DC across channels and achieves significant isolation with 2830 Vrms between channels and bus. This assistance provides operational safety in various environments. In terms of performance metrics, the measurement error fluctuates based on the selected input type. For instance, at 25°C, the error can achieve accuracy within 0.13% for a 0-400 Ohm measurement. Input options include a wide array of types: current inputs from 4-20 mA, voltage inputs covering +/- 10 V, 0-10 V, 0-5 V, and 1-5 V, as well as various thermocouple types such as B, J, K, and others. There are also options for resistive inputs and temperature probes, including Pt 100 and Pt 1000. The module performs a nominal read cycle time of 550 ms and employs a 16-bit conversion for more precise analog/digital transitioning. It features four high-level analog input channels, enabling versatile application use. Additionally, the TSXAEY414 requires operating temperatures between 0 and 60°C and can be stored safely at temperatures as low as -25°C or as high as 70°C. When it comes to environmental performance, it is built to operate under relative humidity levels of 10% to 95%, avoiding condensation. The current consumption for operation is 660 mA at 5 V DC, ensuring efficient energy use. The modular standard format supports easy installation. The device connects through a screw terminal block for simple wiring. For its protection capabilities, it includes input overvoltage protection that accommodates -30 to 30 V during state 1 and -15 to 15 V for state 0, protecting against possible voltage spikes that may compromise functional integrity. |
|---|---|
| Range of Product | Modicon Premium Automation platform Product or Component Type Analog input module Input level Low level |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V Thermocouple thermocouple B Thermocouple thermocouple E Thermocouple thermocouple J Thermocouple thermocouple K Thermocouple thermocouple L Thermocouple thermocouple N Thermocouple thermocouple R Thermocouple thermocouple S Thermocouple thermocouple T Thermocouple thermocouple U Resistor 0...3850 Ohm Resistor 0...400 Ohm Temperature probe Ni 1000 2 wires Temperature probe Ni 1000 4 wires Temperature probe Pt 100 2 wires Temperature probe Pt 100 4 wires Temperature probe Pt 1000 2 wires Temperature probe Pt 1000 4 wires Voltage - 13...63 mV Voltage +/- 5 V Analog/digital conversion 16 bits |
Complementary
| Nominal read cycle time | 550 ms |
|---|---|
| Measurement error | 0.13 % of full scale 0...400 Ohm 25 °C 0.16 % of full scale 0...10 V 25 °C 0.19 % of full scale - 13...63 mV 25 °C 0.22 % of full scale 0...3850 Ohm 25 °C 0.22 % of full scale 0...5 V 25 °C 0.27 % of full scale +/- 10 V 25 °C 0.27 % of full scale +/- 5 V 25 °C 0.27 % of full scale 0...400 Ohm 0...60 °C 0.27 % of full scale 1...5 V 25 °C 0.39 % of full scale 0...10 V 0...60 °C 0.44 % of full scale - 13...63 mV 0...60 °C 0.45 % of full scale 0...5 V 0...60 °C 0.45 % of full scale 4...20 mA 25 °C 0.48 % of full scale 0...3850 Ohm 0...60 °C 0.5 % of full scale +/- 10 V 0...60 °C 0.5 % of full scale +/- 5 V 0...60 °C 0.56 % of full scale 1...5 V 0...60 °C 0.86 % of full scale 4...20 mA 0...60 °C 1.5 °C thermocouple B external 25 °C 1.5 °C thermocouple E external 25 °C 1.5 °C thermocouple T external 25 °C 1.5 °C thermocouple U external 25 °C 1.8 °C thermocouple J external 25 °C 10.5 °C thermocouple K internal 0...60 °C 11 °C thermocouple R internal 0...60 °C 12 °C thermocouple S internal 0...60 °C 2 °C thermocouple L external 25 °C 2 °C thermocouple N external 25 °C 2.3 °C thermocouple K external 25 °C 3.1 °C thermocouple U external 0...60 °C 3.2 °C thermocouple E external 0...60 °C 3.2 °C thermocouple R external 25 °C 3.2 °C thermocouple T external 0...60 °C 3.4 °C thermocouple S external 25 °C 3.5 °C thermocouple B external 0...60 °C 3.5 °C thermocouple B internal 25 °C 3.8 °C thermocouple J external 0...60 °C 4.1 °C thermocouple L external 0...60 °C 4.3 °C thermocouple N external 0...60 °C 4.7 °C thermocouple K external 0...60 °C 5.4 °C thermocouple U internal 25 °C 6 °C thermocouple N internal 25 °C 6 °C thermocouple R internal 25 °C 6.1 °C thermocouple E internal 25 °C 6.6 °C thermocouple S internal 25 °C 6.6 °C thermocouple T internal 25 °C 7.3 °C thermocouple J internal 25 °C 7.3 °C thermocouple U internal 0...60 °C 7.5 °C thermocouple L internal 25 °C 7.7 °C thermocouple R external 0...60 °C 7.8 °C thermocouple K internal 25 °C 8.1 °C thermocouple B internal 0...60 °C 8.1 °C thermocouple E internal 0...60 °C 8.5 °C thermocouple S external 0...60 °C 8.7 °C thermocouple N internal 0...60 °C 8.8 °C thermocouple T internal 0...60 °C 9.5 °C thermocouple J internal 0...60 °C 9.8 °C thermocouple L internal 0...60 °C 1 °C Ni 1000 25 °C 1.2 °C Pt 100 25 °C 2 °C Ni 1000 0...60 °C 2.4 °C Pt 100 0...60 °C 2.5 °C Pt 1000 25 °C 5 °C Pt 1000 0...60 °C |
| Isolation between channels and bus | 1780 Vrms |
| Isolation between channels and ground | 1780 Vrms |
| Isolation between channels | 2830 Vrms Common mode between channels 415 V AC or 200 V DC Common mode between channels and earth 240 V AC or 110 V DC |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm |
| Electrical connection | Screw terminal block Overcurrent -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 660 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.71 lb(US) (0.32 kg) |
Environment
| Standards | DIN 43760 IEC 584 IEC 751 DIN 43710 NFC 42-330 IEC 1131 |
|---|---|
| Product Certifications | DNV BV ABS RMRS RINA GL LR |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110756951 |
| Returnability | No |
| Country of origin | FR |
