TSXAEY1614
Schneider Electric
Overview

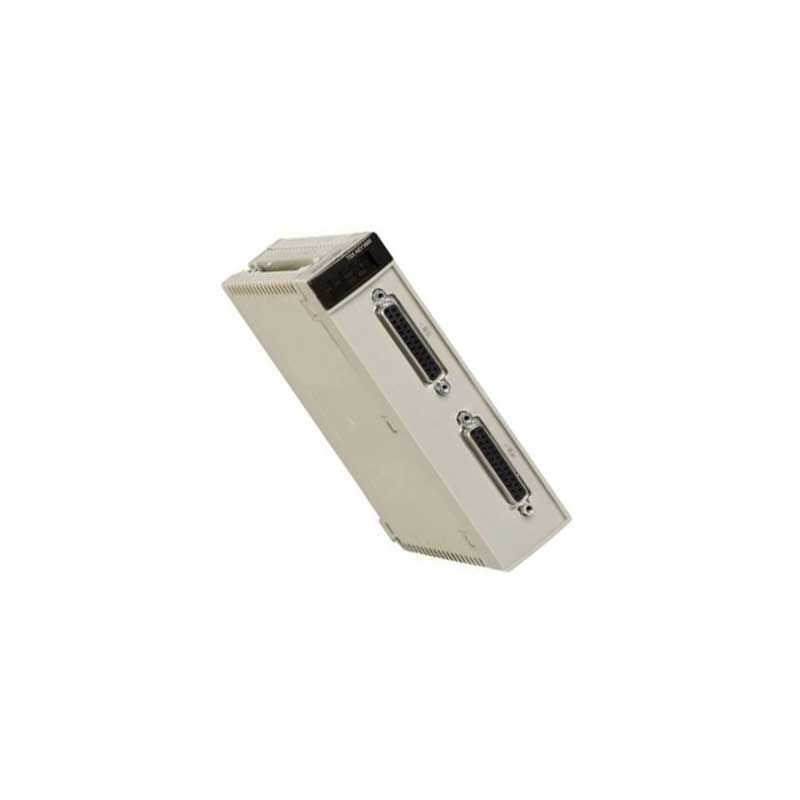

The TSXAEY1614 is an Analog input module in the Modicon Premium Automation platform range from Schneider Electric. It provides 16 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog input module, the TSXAEY1614 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 16 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10 to 95% without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXAEY1614, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXAEY1614?
The TSXAEY1614 is an analog input module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Analog input module.
What are the key technical ratings of the TSXAEY1614?
Its published highlights include 16 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXAEY1614 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXAEY1614 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXAEY1614?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXAEY1614, part of Schneider Electric's TSX Micro PLC series, features 16 analog input channels, allowing for precise thermocouple and voltage measurements. With a conversion resolution of 16 bits, the module effectively monitors a variety of input types, supporting multiple thermocouple standards alongside voltage inputs, ensuring versatile application capability.
Complementary
| Nominal read cycle time | 70 ms per channel |
|---|---|
| Measurement error | 0.8 °C thermocouple E 25 °C 0.9 °C thermocouple J 25 °C 0.9 °C thermocouple L 25 °C 1 °C thermocouple K 25 °C 1 °C thermocouple T 25 °C 1 °C thermocouple U 25 °C 1.1 °C thermocouple N 25 °C 1.2 °C thermocouple E 0...60 °C 1.3 °C thermocouple T 0...60 °C 1.3 °C thermocouple U 0...60 °C 1.4 °C thermocouple J 0...60 °C 1.4 °C thermocouple L 0...60 °C 1.6 °C thermocouple K 0...60 °C 1.7 °C thermocouple N 0...60 °C 2.1 °C thermocouple R 25 °C 2.2 °C thermocouple S 25 °C 2.4 °C thermocouple R 0...60 °C 2.5 °C thermocouple B 25 °C 3.7 °C thermocouple S 0...60 °C 4 °C thermocouple B 0...60 °C |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms Common mode between channels 250 V AC or 280 V AC Common mode between channels and earth 250 V DC |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm |
| Electrical connection | 2 connectors SUB-D 25 Overcurrent -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 300 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.77 lb(US) (0.35 kg) |
Environment
| Standards | NFC 42-330 IEC 1131 DIN 43710 IEC 751 DIN 43760 IEC 584 |
|---|---|
| Product Certifications | DNV RMRS LR ABS RINA BV GL |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110876321 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.2 in (5.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package weight(Lbs) | 15.8 oz (447.0 g) |
Description
| Note | The Schneider Electric TSXAEY1614 is a sophisticated analog input module belonging to the TSX Micro PLCs series. This unit is equipped with 16 high-level input channels, delivering high-resolution measurements with a capability of 16-bit analog-to-digital conversion. The input types supported include various thermocouples such as B, E, J, K, L, N, R, S, T, and U, in addition to voltage measurements of +/- 80 mV, making it versatile for different industrial applications. Operational efficiency is enhanced with a nominal read cycle time of 70 ms for each channel, allowing for timely data retrieval. Measurement error tolerance varies between different thermocouple types; for example, thermocouple E has an error of 0.8°C at 25°C, ensuring accuracy based on the type of sensor utilized. The module features robust isolation at 1000 Vrms, effectively separating both between channels and the bus, as well as between channels and the ground. The TSXAEY1614 also provides protection against common mode voltages, managing up to 250 V AC or 280 V AC between channels, and 250 V DC relative to the earth connection. Electrical connections are established through two SUB-D 25 connectors, which allow for straightforward wiring. Input overvoltage protection ranges from -15 to 15 V at state 0 and -30 to 30 V when in state 1, enhancing operational safety. In terms of power consumption, this module requires 300 mA at a 5 V DC supply. It exhibits a standard module format, weighing 0.35 kg, making it suitable for various installations. Operating temperature specifications range from 0 to 60°C, while storage temperatures can fall between -25 to 70°C. Moreover, the device supports a relative humidity range of 10 to 95%, provided condensation is absent during operation. This combination of reliable performance characteristics makes the TSXAEY1614 a valuable asset in diverse automation systems. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
