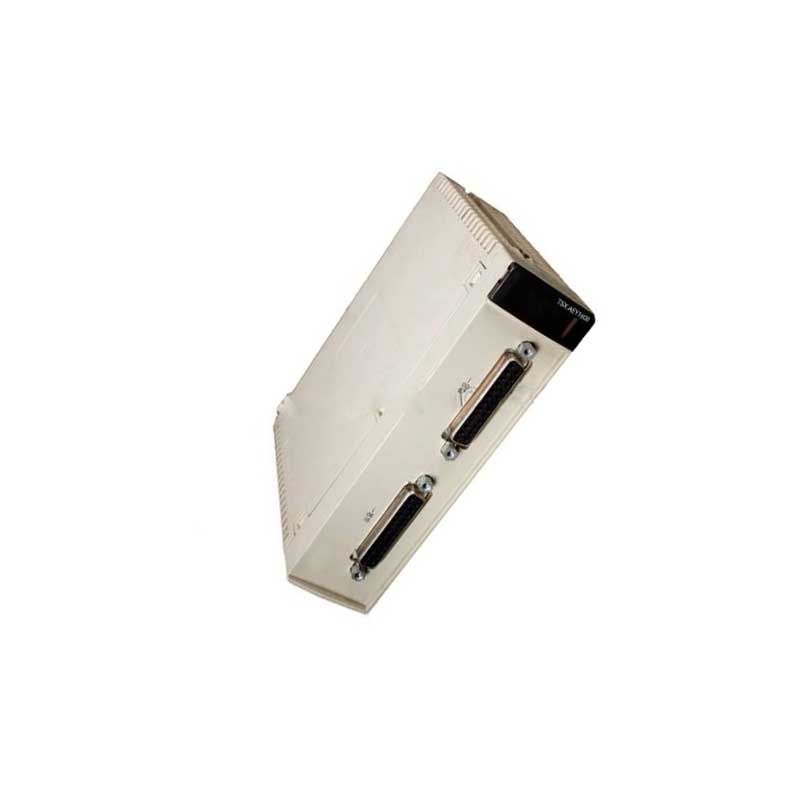

TSXAEY1600
Schneider Electric
Overview
The TSXAEY1600 is an Analog input module in the Modicon Premium Automation platform range from Schneider Electric. It provides 16 channels and is built for signal interfacing within Modicon Premium / TSX systems.
Application & Technical Notes
As an analog input module, the TSXAEY1600 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 16 channels, an operating temperature range of 32…140 °F (0…60 °C). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -13…158 °F (-25…70 °C). Avoid condensation — the rated humidity is 10 to 95% without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSXAEY1600, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon Premium / TSX rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSXAEY1600?
The TSXAEY1600 is an analog input module in the Modicon Premium Automation platform range from Schneider Electric. It is described by the manufacturer as: Analog input module.
What are the key technical ratings of the TSXAEY1600?
Its published highlights include 16 channels, operating temperature 32…140 °F (0…60 °C). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSXAEY1600 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSXAEY1600 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSXAEY1600?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSXAEY1600 from Schneider Electric is a standard TSX Micro PLCs series module. This model can operate efficiently across a temperature range from 0 to 60°C and handle storage temperatures from -25 to 70°C. Relative humidity for optimal operation lies between 10% and 95% without condensation.
Complementary
| Nominal read cycle time | 51 ms Fast read cycle time 3 ms + 3 ms x number of channels used |
|---|---|
| Measurement error | 0.1 % of full scale +/- 10 V 25 °C 0.1 % of full scale 0...10 V 25 °C 0.1 % of full scale 0...5 V 25 °C 0.1 % of full scale 1...5 V 25 °C 0.13 % of full scale +/- 10 V 0...60 °C 0.13 % of full scale 0...10 V 0...60 °C 0.13 % of full scale 0...5 V 0...60 °C 0.13 % of full scale 1...5 V 0...60 °C 0.16 % of full scale 0...20 mA 25 °C 0.16 % of full scale 4...20 mA 25 °C 0.32 % of full scale 0...20 mA 0...60 °C 0.32 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Isolation between channels | Common point Common mode between channels None |
| Input overvoltage protection | -15…15 V at state 0 250 kOhm -30…30 V at state 1 250 kOhm |
| Electrical connection | 2 connectors SUB-D 25 Overcurrent -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 270 mA 5 V DC |
| Module format | Standard |
| Net Weight | 0.75 lb(US) (0.34 kg) |
Environment
| Standards | IEC 1131 |
|---|---|
| Product Certifications | BV GL LR DNV RINA ABS RMRS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation 5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Ordering and shipping details
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
|---|---|
| Discount Schedule | PC22 GTIN 3389110726114 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 7.087 in (18.000 cm) |
| Package 1 Length | 10.236 in (26.000 cm) |
| Package weight(Lbs) | 15.767 oz (447.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 13.935 lb(US) (6.321 kg) |
Description
| Note | The Schneider Electric TSXAEY1600 is designed as a robust standard module suited for various industrial applications. Its operating environment can range between 0 and 60°C, while it remains capable of withstanding storage temperatures down to -25°C and up to 70°C. The device efficiently operates within a relative humidity range of 10% to 95%, guaranteeing stable performance without condensation. Weighing 0.34 kg, the module requires a current supply of 270 mA at a voltage of 5 V DC. Two SUB-D 25 connectors facilitate the necessary electrical connections. Input overvoltage protection enhances its functionality with limits of -15 to 15 volts at state 0 and -30 to 30 volts at state 1. This provides additional security against potential surges. Isolation measures safeguard operations, as the TSXAEY1600 maintains 1000 Vrms isolation between channels and both the bus and the ground. The device ensures high accuracy for various voltage ranges, featuring a measurement error of merely 0.1% of full scale when operating at 25°C. The fast read cycle time is recorded at 3 milliseconds plus 3 ms for each additional channel in use, while its nominal read cycle time is 51 milliseconds. Among its processing capabilities, this module supports 16 high-level analog input channels utilizing 12-bit analog/digital conversion. It accommodates multiple input types, including current inputs (0-20 mA, or 4-20 mA) and voltage inputs (±10 V, 0-10 V, 0-5 V, and 1-5 V). Overall, the TSXAEY1600 effectively meets the demands of complex automation tasks while ensuring high performance and reliability. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
