TSX3722001
Schneider Electric
Overview

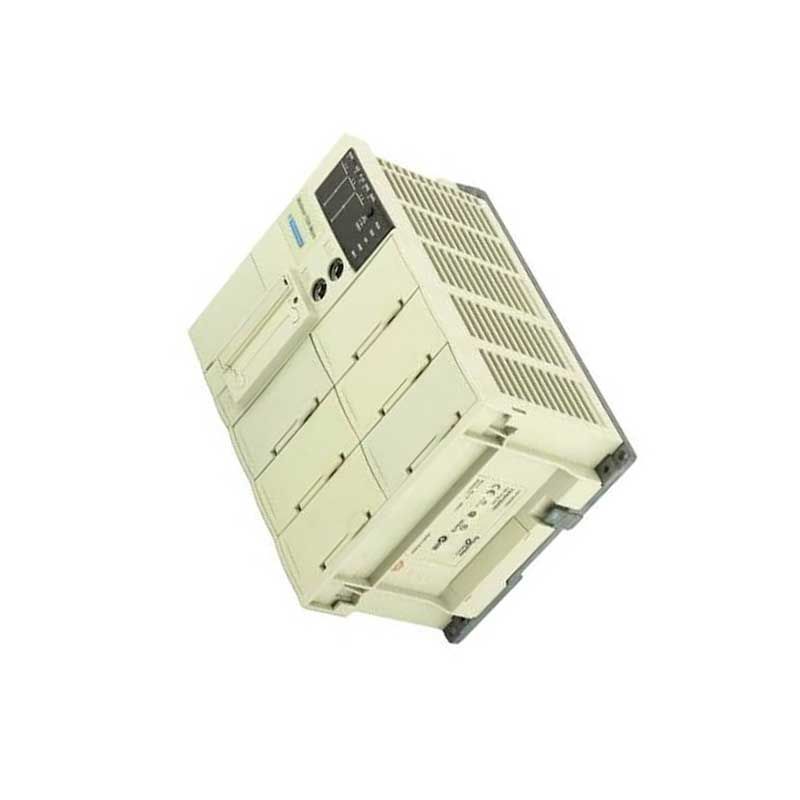

The TSX3722001 is a Modular base controller in the Modicon TSX Micro automation platform range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a modular base controller, the TSX3722001 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include an operating temperature range of 0…60 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…60 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25…70 °C. Avoid condensation — the rated humidity is 10…95 % without condensation for operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSX3722001, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSX3722001?
The TSX3722001 is a modular base controller in the Modicon TSX Micro automation platform range from Schneider Electric. It is described by the manufacturer as: Modular base controller.
What are the key technical ratings of the TSX3722001?
Its published highlights include operating temperature 0…60 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSX3722001 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSX3722001 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSX3722001?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric TSX3722001 is a modular base controller from the TSX Micro PLCs series. It operates effectively with a primary voltage range of 100-240 V AC and delivers reliable performance in various applications.
Complementary
| Number of slots | 3 |
|---|---|
| Analogue input type | 0...10 V 8 |
| Analogue output type | 0...10 V 1 Counting input type Discrete incremental counter 1 10 Hz Incremental 1 10 Hz |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s Realtime clock With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card Execution time for 1 Kinstruction 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 1 fast task 16 event tasks 1 master task |
| System overhead | 2.3 ms for master task |
| Protection type | Overload protection Short-circuit Network frequency 50...60 Hz Total useful secondary power 24 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
Environment
| Ambient air temperature for operation | 0…60 °C |
|---|---|
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation 5…95 % without condensation for operation |
| Operating altitude | 0...2000 m |
| Width | 341.4 mm |
| Height | 151 mm |
| Depth | 152 mm |
| Net weight | 1.75 kg |
Description
| Note | The TSX3722001 from Schneider Electric serves as a modular base controller within the TSX Micro PLCs line. This unit is equipped to handle a primary voltage range of 100-240 V AC, with tolerance for input voltages anywhere between 90 and 264 V AC. For data handling, it incorporates 20 Kwords of internal RAM, and connecting a PCMCIA card raises its capability for program and data storage to 128 Kwords. Input draws a minimal 2 mA with a maximum operational capacity of less than 60 A. It offers overload protection and short-circuit safeguards. Additionally, this controller manages output currents at 0.5 A. Communication interfaces include one serial link utilizing Uni-Telway at 19.2 kbit/s, alongside support for Modbus RTU at the same speed. A built-in real-time clock ensures time-sensitive operations are managed accurately. Object area sizes max out at 256 %Mi for input, 1 %MWi for internal words, and 128 %KWi for constant storage. The system architecture is structured to facilitate one fast task, a single master task, and accommodates 16 event tasks. System overhead for the master task equates to 2.3 milliseconds, ensuring efficient processing. Overall, the TSX3722001 is designed to provide reliable performance in industrial automation while addressing immunity to disturbances and ensuring consistent operation. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
