TSX3710101
Schneider Electric
Overview

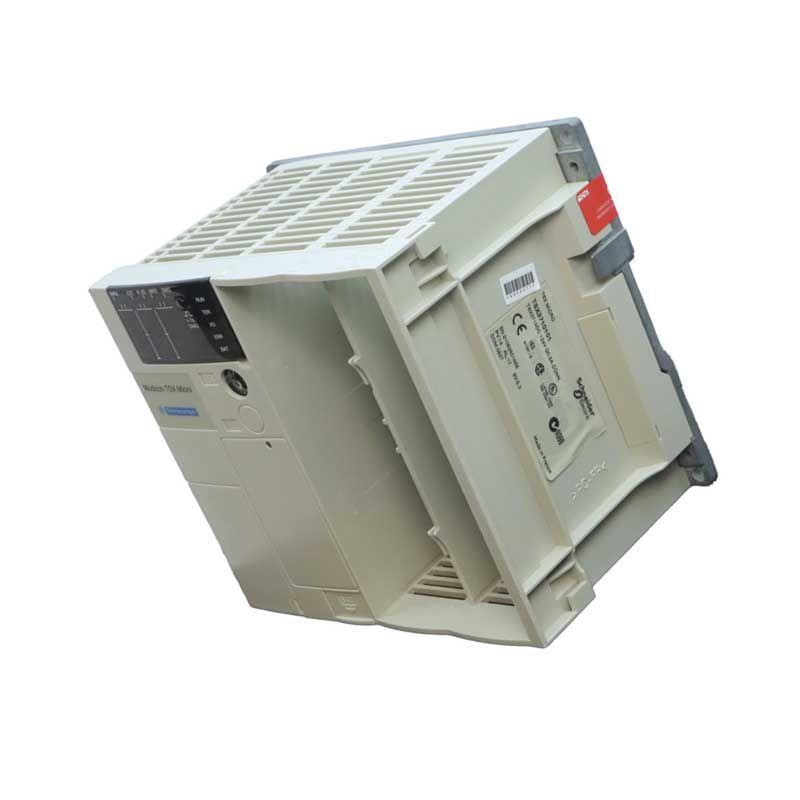

The TSX3710101 is a TSX Micro PLCs in the TSX Micro PLCs range from Schneider Electric. It is engineered for industrial automation duties within the Modicon Premium / TSX ecosystem.
Application & Technical Notes
As a tsx micro plcs, the TSX3710101 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is Range 10% to 95% without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSX3710101, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your Modicon Premium / TSX installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSX3710101?
The TSX3710101 is a tsx micro plcs in the TSX Micro PLCs range from Schneider Electric. It is described by the manufacturer as: TSX Micro PLCs.
What are the key technical ratings of the TSX3710101?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TSX3710101 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSX3710101 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSX3710101?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSX3710101 from Schneider Electric is a micro PLC engineered for versatile automation solutions. It operates within a 100-240 V AC voltage range and supports input currents from 2 mA up to 60 A, adapting to various project demands.
Description
| Note | The TSX3710101 micro PLC series from Schneider Electric is designed to handle a variety of automation tasks efficiently. It is rated for a wide input voltage of 100-240 V AC. This model accommodates input currents from a low 2 mA to a maximum of 60 A, providing flexibility for different applications. Operating temperature is rated between 32 and 140 °F (0 and 60 °C), making this PLC suitable for diverse environments. The unit functions effectively at a frequency of 50/60 Hz and includes two slots for modular expansion. With a maximum output capacity of 0.5 A, it ensures reliable command over devices in integrated systems. The TSX3710101 also features eight analog input slots with a defined voltage range of 0 to 10 V, along with a single analog output slot that supports the same voltage range. Its communication needs are addressed with one serial link via Uni-Telway, rated at 19.2 kbit/s, and a Modbus RTU interface, also at 19.2 kbit/s. Memory capabilities include 15 Kwords of flash memory alongside 20 Kwords of internal RAM, which can be expanded to 128 Kwords through a PCMCIA card. Execution times vary depending on the operation type, ranging from 0.13 µs for Boolean operations to 4.5 µs for arithmetic REAL floating operations. The application's structure supports one fast task, one master task, and sixteen event tasks, allowing for efficient management of processes. This micro PLC operates effectively in conditions featuring humidity levels from 10% to 95%, provided there is no condensation. The physical dimensions of the unit measure 13.44 inches in length, 5.94 inches in width, and 5.98 inches in height, allowing for easy integration into existing systems. |
|---|---|
| Category | 22556-TSX MICRO, PL7 MICRO & ACCESS |
| Discount Schedule | PC14 GTIN 3389110761566 |
| Returnability | No |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.1 in (15.5 cm) |
| Package 1 Width | 6.5 in (16.5 cm) |
| Package 1 Length | 7.008 in (17.8 cm) |
| Package weight(Lbs) | 3.137 lb(US) (1.423 kg) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
