TSX1702028
Schneider Electric
Overview

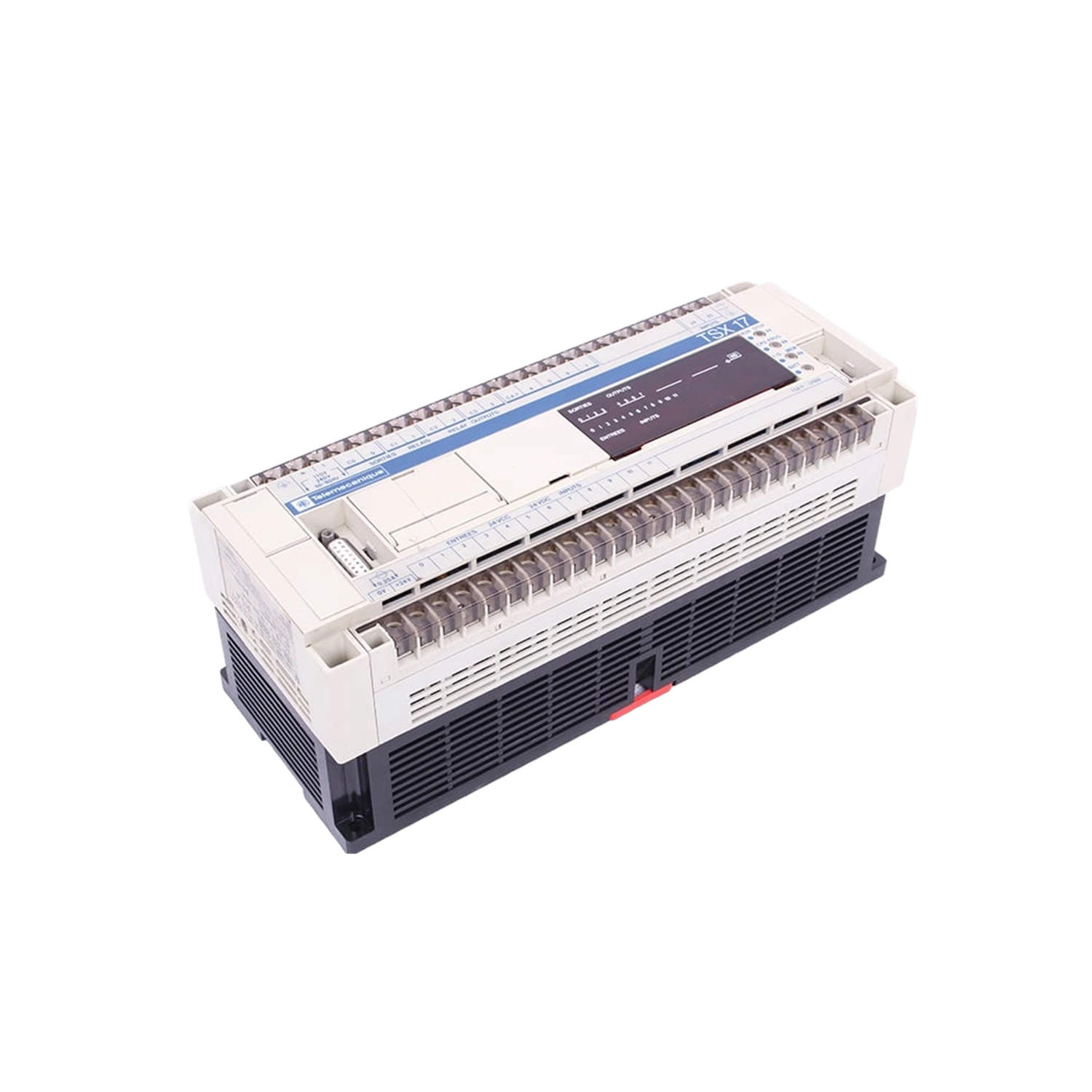

The TSX1702028 is a Programmable Controller in the Modicon range from Schneider Electric. It executes control logic for Modicon Premium / TSX architectures and operates from a 110 to 240 Volts AC supply.
Application & Technical Notes
As a programmable controller, the TSX1702028 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 110 to 240 Volts AC rating, an operating temperature range of 5 to 55°C (in a non-condensing environment). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (5 to 55°C (in a non-condensing environment)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25 to 70°C (in a non-condensing environment). Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSX1702028, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSX1702028?
The TSX1702028 is a programmable controller in the Modicon range from Schneider Electric. It is described by the manufacturer as: Programmable Controller.
What are the key technical ratings of the TSX1702028?
Its published highlights include 110 to 240 Volts AC, operating temperature 5 to 55°C (in a non-condensing environment). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSX1702028 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSX1702028 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSX1702028?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric TSX1702028 is a versatile programmable controller designed to operate within a power supply voltage range of 110 to 240 Volts AC. With multiple inputs and outputs, it includes 24 total connections that accommodate 24 Volts DC input signals and relay outputs, providing essential functionality for automation tasks.
Description
| Note | The TSX1702028 model from Schneider Electric is classified as a programmable controller, notable for its adaptability in various industrial applications. Rated for a power supply voltage of 110 to 240 Volts AC, it allows for significant flexibility in different power situations. This module is equipped with 24 input/output points, with each input being rated for 24 Volts DC. The outputs are structured as relay outputs, offering reliable switching capabilities for connected devices. This controller is fully equipped to provide clear operational feedback via five LED status indicators, facilitating quick assessments of its function. The device operates effectively under a supply frequency of 50 to 60 Hertz, accommodating a frequency limit spanning from 47 to 63 Hertz. The controller can handle voltage fluctuations in the range of 96 to 264 Volts AC, ensuring stable performance in a variety of electrical environments. The environmental specifications are suitable for standard industrial settings, with an operational temperature range of 5 to 55 degrees Celsius, provided that conditions remain non-condensing. When stored, the module can withstand temperatures from -25 to 70 degrees Celsius without sustaining damage. Furthermore, it operates effectively within a humidity range of 30% to 95% relative humidity, also without condensation. Weighing in at 2.6 pounds (1.17 kilograms), the TSX1702028 is manageable for installation while delivering robust performance. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
