TSX07211622
Schneider Electric
Overview

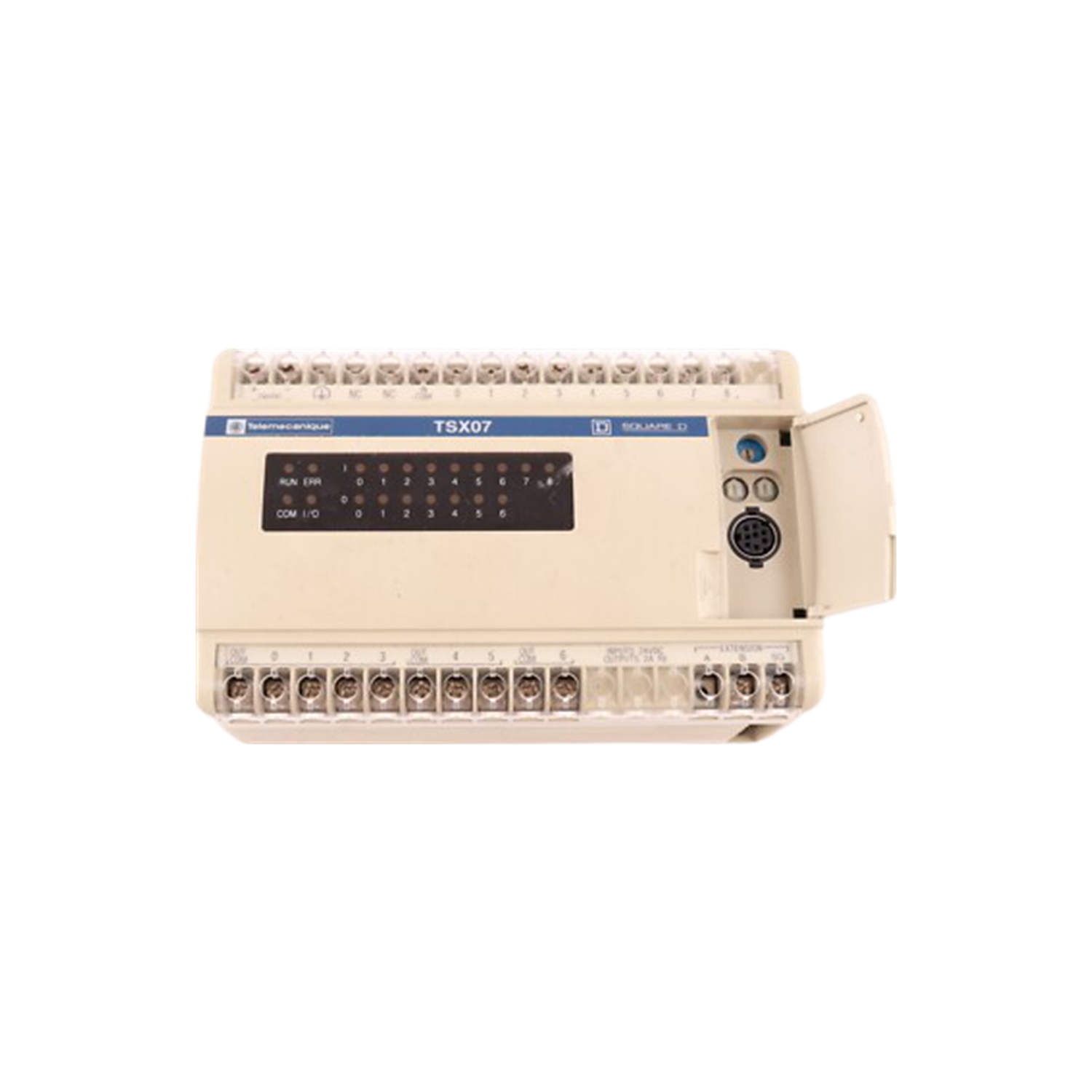

The TSX07211622 is a Programmable Logic Controller in the TSX Micro PLCs range from Schneider Electric. It executes control logic for Modicon Premium / TSX architectures and operates from a 24 VDC (nominal) supply.
Application & Technical Notes
As a programmable logic controller, the TSX07211622 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon Premium / TSX equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 24 VDC (nominal) rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TSX07211622, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon Premium / TSX architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TSX07211622?
The TSX07211622 is a programmable logic controller in the TSX Micro PLCs range from Schneider Electric. It is described by the manufacturer as: Programmable Logic Controller.
What are the key technical ratings of the TSX07211622?
Its published highlights include 24 VDC (nominal). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TSX07211622 mounted or installed?
Installation follows the standard Modicon Premium / TSX mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TSX07211622 compatible with my controller?
It is part of the Modicon Premium / TSX family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TSX07211622?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The TSX07211622 by Schneider Electric represents a programmable logic controller designed for versatile industrial applications. Operating with a nominal voltage of 24 VDC, this controller supports dual-rated output voltage for both AC and DC usage.
Description
| Note | The Schneider Electric TSX07211622 is a programmable logic controller designed for efficiency in a range of applications, including material handling and textile machinery. It functions at a nominal power supply voltage of 24 VDC, ensuring reliable operation across various industrial setups. Each channel is capable of handling an input current of 13 mA, supporting both sinking and sourcing configurations. This controller is designed to provide robust output with a capacity of 2 A per channel, suitable for both resistive and inductive loads. It features a dual-rated output voltage range of 240 VAC or 30 VDC, making it versatile for different types of applications. The output is based on relay switching, utilizing electromechanical contacts for reliable activation of external devices. In terms of physical design, the TSX07211622 has a compact brick-style housing that allows for simple installation on fixed DIN rails. This design choice facilitates easy integration into existing systems. The input voltage operates within a tolerance of 24 VDC ±10%, ensuring stable functionality under varying conditions. The output contact configuration is recognized as form-C (SPDT), providing flexibility in how devices are connected and controlled. |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
