TM5SDO4T
Schneider Electric
Overview

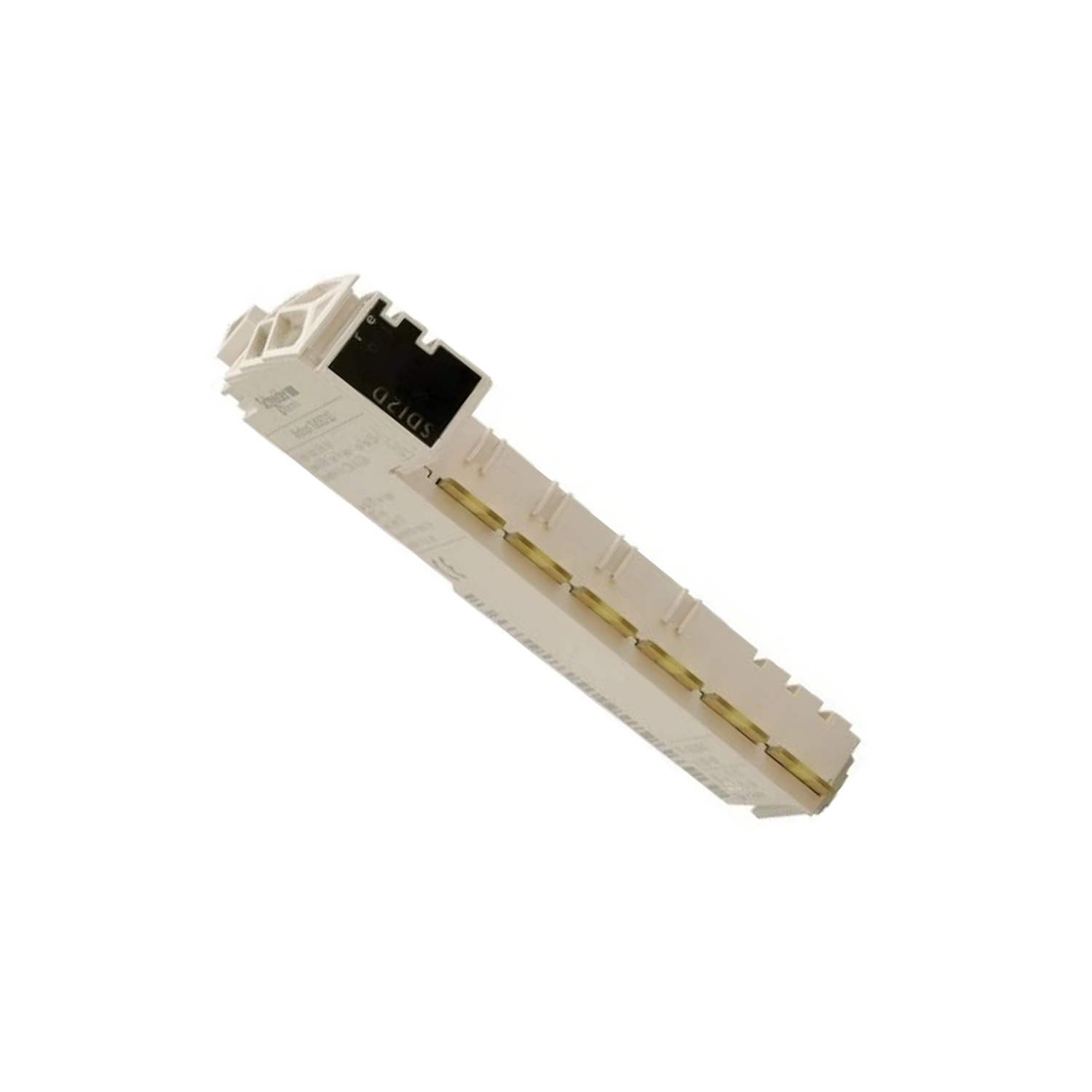

The TM5SDO4T is a Discrete output module in the Modicon TM5 range from Schneider Electric. It is engineered for industrial automation duties within the Modicon TM logic controller / I/O ecosystem.
Application & Technical Notes
As a discrete output module, the TM5SDO4T is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It drives actuators, relays, valves and indicators from controller commands, acting as the actuation layer between logic and the machine.
Key published characteristics include a 24 V DC rating, an operating temperature range of -10…55 °C without derating (horizontal installation). These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-10…55 °C without derating (horizontal installation)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…70 °C. Avoid condensation — the rated humidity is 5…95 % without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM5SDO4T, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM5SDO4T?
The TM5SDO4T is a discrete output module in the Modicon TM5 range from Schneider Electric. It is described by the manufacturer as: Discrete output module.
What are the key technical ratings of the TM5SDO4T?
Its published highlights include 24 V DC, operating temperature -10…55 °C without derating (horizontal installation). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM5SDO4T mounted or installed?
Installation follows the standard Modicon TM logic controller / I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TM5SDO4T compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM5SDO4T?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
discrete output module, Modicon TM5, 4 DO,
Main
| Range of product Modicon TM5 | Product or component type Discrete output module Discrete output number 4 |
|---|---|
| Discrete output type Transistor | N/A |
Complementary
| Note | Range compatibility Modicon LMC058 PacDrive LMC motion controller |
|---|---|
| Modicon M258 | Product compatibility PacDrive LMC Pro 2 PacDrive LMC Pro PacDrive LMC Eco |
| Logic controller | Motion controller Output voltage 24 V DC Output voltage limits 20.4...28.8 V Discrete output logic Source Current per channel 0.5 A Maximum current per output common 2 A |
| Colour White | Peak output current 12 A Switching frequency <= 500 Hz resistive load Response time <= 300 µs from state 0 to state 1 for output <= 300 µs from state 1 to state 0 for output Maximum leakage current 5 ΜA when switched off Protection type Reverse polarity protection |
| Short-circuit protection | Overload protection Isolation 500 Vrms AC insulation between channel and bus No insulation between channels Maximum voltage drop <0.3 V at 500 mA for output <2 V at 500 mA for sensor supply Maximum supply current for sensors 500 MA Current consumption 20 mA at 24 V DC input/output 32 mA at 5 V DC bus Maximum power dissipation in W 0.86 W Local signalling 1 LED green for power supply 1 LED red for power supply 4 LEDs yellow for output status Electrical connection 3 wires |
| Marking CE | Product weight 0.025 Kg |
Environment
| Note | Standards IEC 61131-2 |
|---|---|
| CSA C22.2 No 213 | UL 508 |
| CSA C22.2 No 142 | N/A |
| Product certifications CSA | GOST-R CULus |
| C-Tick | Ambient air temperature for operation -10…55 °C without derating (horizontal installation) -10…60 °C with derating factor (horizontal installation) -10…50 °C (vertical installation) Ambient air temperature for storage -40…70 °C Relative humidity 5…95 % without condensation IP degree of protection IP20 conforming to IEC 61131-2 Pollution degree 2 conforming to IEC 60664 |
| Operating altitude 0...2000 m | Storage altitude 0…3000 M Vibration resistance 1 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on DIN rail |
| Shock resistance 15 gn for 11 ms | Electromagnetic compatibility Electrostatic discharge immunity test, 4 kV on contact conforming- to EN/IEC 61000-4-2 Electrostatic discharge immunity test, 8 kV in air conforming to EN/IEC 61000-4-2 Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming- to EN/IEC 61000-4-3 Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming- to EN/IEC 61000-4-3 Electrical fast transient/burst immunity test, 1 kV I/O conforming- to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test, 1 kV shielded cable conforming- to EN/IEC 61000-4-4 Electrical fast transient/burst immunity test, 2 kV power lines conforming- to EN/IEC 61000-4-4 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming- to EN/IEC 61000-4-5 1.2/50 µs shock waves immunity test, 1 kV common mode conforming- to EN/IEC 61000-4-5 Conducted RF disturbances conforming to EN/IEC 61000-4-6 Conducted and radiated emissions conforming to CISPR 11 |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 2.000 Cm Package 1 Width 6.000 Cm Package 1 Length 10.500 Cm Package 1 Weight 38.000 G |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
