TM5SDI4D
Schneider Electric
Overview

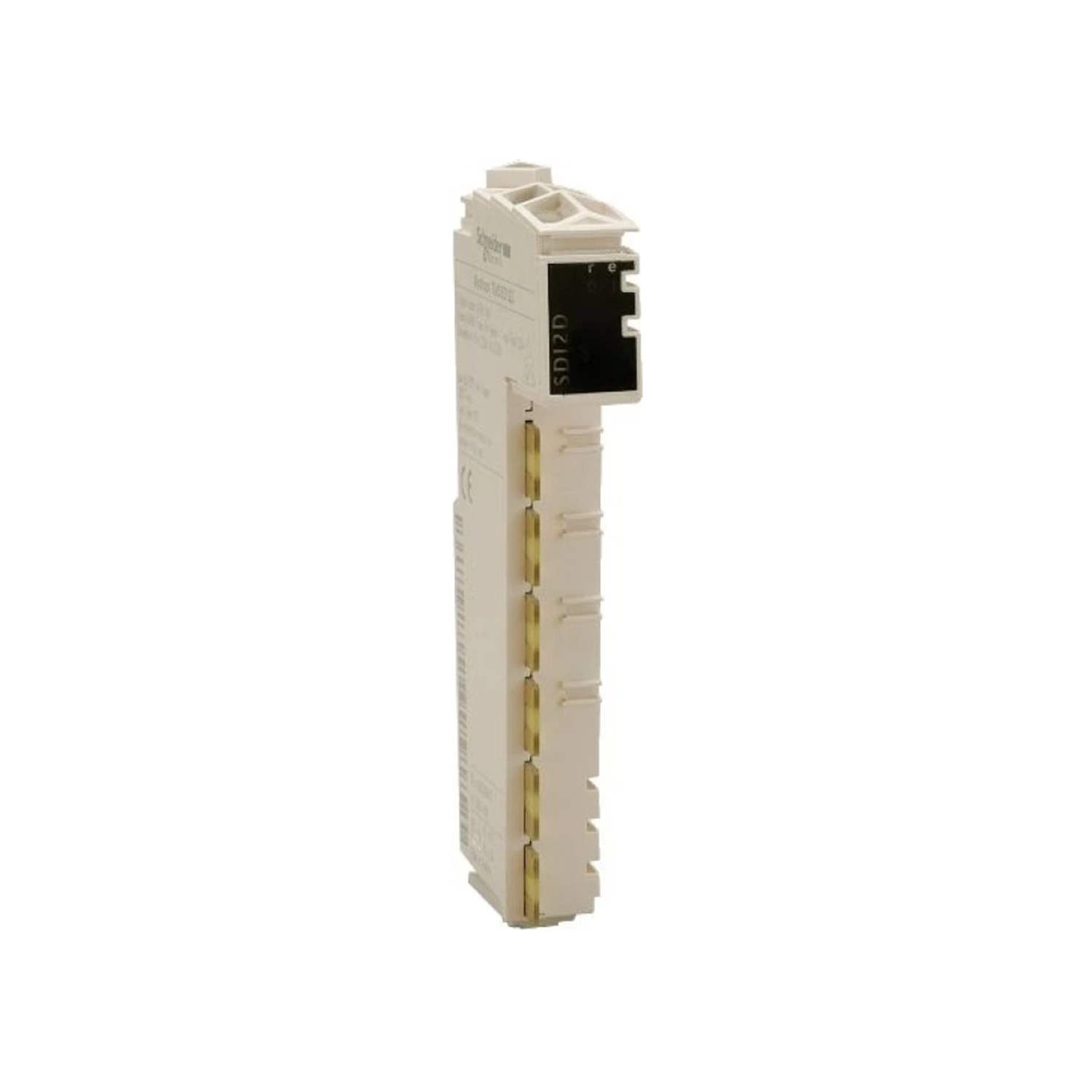

The TM5SDI4D is a distributed I/O module in the Modicon TM logic controller / I/O range from Schneider Electric. Digital Input Module, 4 channels, 24 Vdc sink.
Application & Technical Notes
As a modicon tm logic controller / i/o device, the TM5SDI4D is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It localises I/O close to the field devices, reducing wiring length and bringing intelligence to the periphery of the installation.
Key published characteristics include 24 vdc, sink (type 1 per iec 61131-2) signal handling, a 24 Vdc (via TM5 bus) rating, an operating temperature range of 0...+55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0...+55 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25...+70 °C. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM5SDI4D, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM5SDI4D?
The TM5SDI4D is a modicon tm logic controller / i/o device in the Modicon TM logic controller / I/O range from Schneider Electric. It belongs to the Modicon TM logic controller / I/O automation family.
What are the key technical ratings of the TM5SDI4D?
Its published highlights include 24 Vdc (via TM5 bus), operating temperature 0...+55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM5SDI4D mounted or installed?
Installation follows the standard Modicon TM logic controller / I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TM5SDI4D compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM5SDI4D?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Digital Input Module, 4 channels, 24 Vdc sink
I/O Specifications
| Module type | Digital input (sink) |
|---|---|
| Channels | 4 |
| Signal type | 24 Vdc, sink (Type 1 per IEC 61131-2) |
| Range | 24 Vdc (nominal), 19.2-28.8 Vdc |
| Input current | 3.75 mA per channel (at 24 Vdc) |
| Resolution | N/A |
| Accuracy | N/A |
| Isolation | No isolation between channels; 500 Vrms AC between channel and bus |
| Diagnostics | ModuleOK, DcOk, NetworkOk; short-circuit and overload protection |
| Response time | ≤3 ms (configurable input filter) |
Electrical
| Supply voltage | 24 Vdc (via TM5 bus) |
|---|---|
| Power consumption | 0.55 W |
| Bus current | 20 mA at 5 V DC (TM5 bus); 15 mA at 24 V DC (all inputs on) |
Environmental
| Operating temperature | 0...+55 °C |
|---|---|
| Storage temperature | -25...+70 °C |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 99 × 12.5 × 75 mm |
|---|---|
| Weight | 0.025 kg |
Compatibility
| Compatible platforms | Modicon M241, M251, M258, LMC058 |
|---|
Status
| Lifecycle | Active (Last verified: 2026-09) |
|---|
Lifecycle
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
