TM5ACBM11
Schneider Electric
Overview
The TM5ACBM11 is a Remote transmitter module in the Modicon TM5 range from Schneider Electric. It is engineered for industrial automation duties within the Modicon TM logic controller / I/O ecosystem.
Application & Technical Notes
As a remote transmitter module, the TM5ACBM11 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It localises I/O close to the field devices, reducing wiring length and bringing intelligence to the periphery of the installation.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM5ACBM11, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM5ACBM11?
The TM5ACBM11 is a remote transmitter module in the Modicon TM5 range from Schneider Electric. It is described by the manufacturer as: Remote transmitter module.
What are the key technical ratings of the TM5ACBM11?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TM5ACBM11 mounted or installed?
Installation follows the standard Modicon TM logic controller / I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TM5ACBM11 compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM5ACBM11?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications

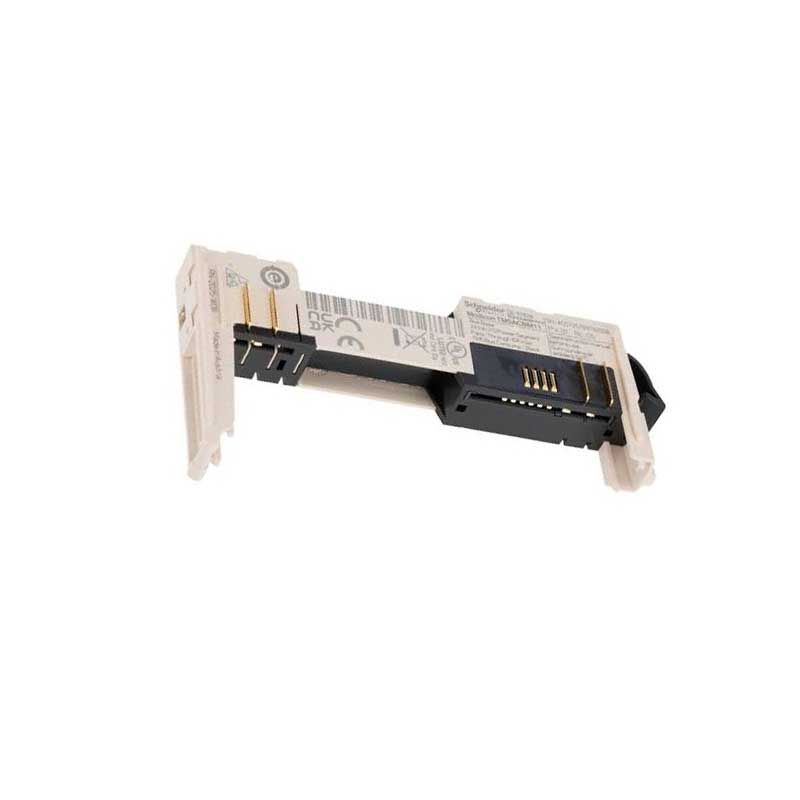

bus base, Modicon TM5, 24V DC, white, 1
Main
| Range of product Modicon TM5 | Accessory / separate part type Bus base Accessory / separate part category Communication accessories Product compatibility Remote transmitter module Counter module 24 V DC slice discrete modules Common distribution module Analog module Sale per indivisible quantity 1 |
|---|
Complementary
| Note | Range compatibility Modicon LMC058 |
|---|---|
| Modicon M258 | N/A |
| Colour White | [Us] rated supply voltage 24 V DC Product weight 0.02 Kg |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 1.700 Cm Package 1 Width 5.400 Cm Package 1 Length 10.700 Cm Package 1 Weight 27.000 G |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
