TM3TI4
Schneider Electric
Overview

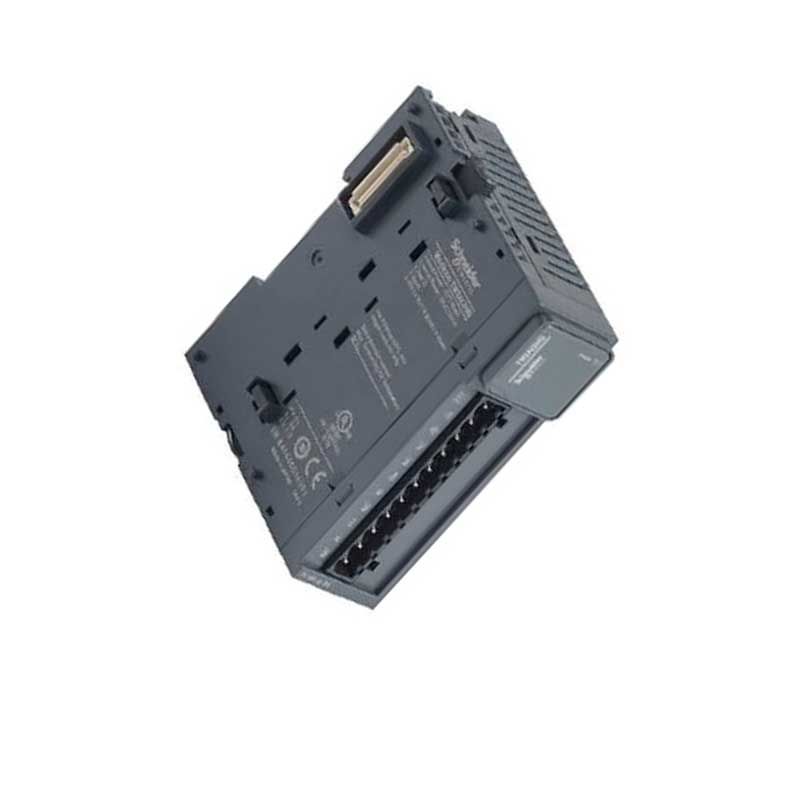

The TM3TI4 is an Analog input module in the Modicon TM3 range from Schneider Electric. It provides 4 channels and is built for signal interfacing within Modicon TM logic controller / I/O systems.
Application & Technical Notes
As an analog input module, the TM3TI4 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It converts field signals (sensors, switches, transmitters) into the digital or analogue values the controller processes, forming the acquisition layer of the automation scheme.
Key published characteristics include 4 channels, current 4...20 ma signal handling, a limits 20.4…28.8 V rating, top hat type th35-15 rail conforming to iec 60715 mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Avoid condensation — the rated humidity is 10…95 %, without condensation (in operation); store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM3TI4, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM3TI4?
The TM3TI4 is an analog input module in the Modicon TM3 range from Schneider Electric. It is described by the manufacturer as: Analog input module.
What are the key technical ratings of the TM3TI4?
Its published highlights include 4 channels, limits 20.4…28.8 V. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM3TI4 mounted or installed?
It uses Top hat type TH35-15 rail conforming to IEC 60715. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the TM3TI4 compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM3TI4?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Modicon TM3 - 4 analog /
Main
| Range of product Modicon TM3 | Product or component type Analog input module Range compatibility Modicon M221 Modicon M241 Modicon M251 Modicon M262 Analogue input number 4 Analogue input type current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V thermocouple - 200...1000 °C with thermocouple J thermocouple - 200...1300 °C with thermocouple K thermocouple 0...1760 °C with thermocouple R thermocouple 0...1760 °C with thermocouple S thermocouple 0...1820 °C with thermocouple B thermocouple - 200...400 °C with thermocouple T thermocouple - 200...1300 °C with thermocouple N thermocouple - 200...800 °C with thermocouple E thermocouple 0...2315 °C with thermocouple C Ni 100/Ni 1000 temperature probe - 60...180 °C Pt 100 temperature probe - 200...850 °C Pt 1000 temperature probe - 200...600 °C |
|---|
Complementary
| Note | Analogue input resolution 16 bits 15 bits + sign Permissible continuous overload 13 V, analogue input type: voltage 40 mA, analogue input type: current Input impedance <= 50 Ohm current >= 1 MOhm voltage >= 1 MOhm thermocouple >= 1 MOhm temperature probe LSB value 2.44 mV 0...10 Vvoltage 4.88 mV - 10...10 Vvoltage 4.88 µA 0...20 mAcurrent 3.91 µA 4...20 mAcurrent 0.1 °Ctemperature probe 0.1 °Cthermocouple Conversion time 100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple 100 ms + 100 ms per channel + 1 controller cycle time for analogue input temperature probe 10 ms + 10 ms per channel + 1 controller cycle time for analogue input voltage/ current Sampling duration 10 ms, analogue input type: voltage/current 100 ms, analogue input type: voltage/current 100 ms, analogue input type: thermocouple 100 ms, analogue input type: temperature probe Absolute accuracy error +/- 0.2 % of full scale at 25 °C for analogue input voltage/current +/- 0.2 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C Temperature drift +/- 0.01 %FS/°C Repeat accuracy +/-0.5 %FS Non-linearity +/- 0.2 %FS Cross talk <= 1 LSB [Us] rated supply voltage 24 V DC Supply voltage limits 20.4…28.8 V Type of cable Twisted shielded pairs cable <30 m for input circuit Current consumption 45 mA at 5 V DC via bus connector 50 mA at 5 V DC via bus connector 35 mA at 24 V DC via external supply 40 mA at 24 V DC via external supply Local signalling 1 LED (green) for PWR Electrical connection 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs Insulation Between input and supply at 1500 V AC Between input and internal logic at 500 V AC |
|---|---|
| Marking CE | Surge withstand 1 kV power supply common mode conforming to IEC 61000-4-5 0.5 kV power supply differential mode conforming to IEC 61000-4-5 1 kV input common mode conforming to IEC 61000-4-5 Mounting support Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height 90 mm | Depth 70 mm Width 23.6 mm Net weight 0.11 kg |
Environment
| Note | Standards IEC 61131-2 Product certifications CE UKCA RCM EAC cULus cULus HazLoc Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 Resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 Resistance to magnetic fields 30 A/m conforming to IEC 61000-4-8 Resistance to fast transients 1 kV (I/O) conforming to IEC 61000-4-4 Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to |
|---|---|
| Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 Immunity to microbreaks 10 ms |
| Ambient air temperature for | operation -10…55 °C horizontal installation -10…35 °C vertical installation |
| Ambient air temperature for | storage -25…70 °C Relative humidity 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection IP20 | pollution degree 2 |
| Operating altitude 0...2000 m | Storage altitude 0…3000 m Vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail |
| Shock resistance 15 gn for 11 ms | N/A |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 7.500 cm Package 1 Width 10.500 cm Package 1 Length 12.500 cm Package 1 Weight 215.000 g |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
