TM3DM24R
Schneider Electric
Overview

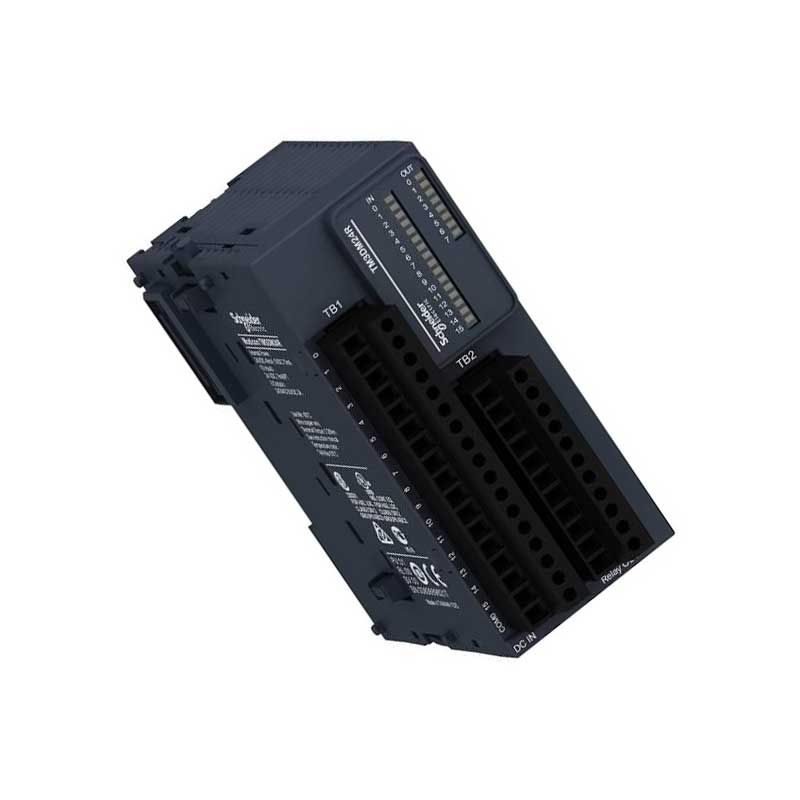

The TM3DM24R is a Discrete I/O module in the Modicon TM3 range from Schneider Electric. It is engineered for industrial automation duties within the Modicon TM logic controller / I/O ecosystem.
Application & Technical Notes
As a discrete i/o module, the TM3DM24R is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It localises I/O close to the field devices, reducing wiring length and bringing intelligence to the periphery of the installation.
Key published characteristics include an operating temperature range of -10...55 °C for horizontal installation, top hat type th35-15 rail conforming to iec 60715 mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-10...55 °C for horizontal installation); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25...70 °C. Avoid condensation — the rated humidity is 10...95 % without condensation in operation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM3DM24R, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM3DM24R?
The TM3DM24R is a discrete i/o module in the Modicon TM3 range from Schneider Electric. It is described by the manufacturer as: Discrete I/O module.
What are the key technical ratings of the TM3DM24R?
Its published highlights include operating temperature -10...55 °C for horizontal installation. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM3DM24R mounted or installed?
It uses Top hat type TH35-15 rail conforming to IEC 60715. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the TM3DM24R compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM3DM24R?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
module TM3 - 24 IO relays
Main
| Range of product Modicon TM3 | Product or component type Discrete I/O module |
|---|---|
| Range compatibility Modicon M241 | Modicon M221 Modicon M251 Discrete input number 16 input conforming to IEC 61131-2 Type 1 Discrete input logic Sink or source (positive/negative) |
| Discrete input voltage 24 V | Discrete input current 7 mA for input Discrete output type Relay normally open Discrete output number 8 Discrete output logic Positive or negative Discrete output voltage 24 V DC for relay output 240 V AC for relay output Discrete output current 2000 mA for relay output |
Complementary
| Note | Discrete I/O number 24 Current consumption 5 mA at 5 V DC via bus connector at state off 0 mA at 24 V DC via bus connector at state on 0 mA at 24 V DC via bus connector at state off 65 mA at 5 V DC via bus connector at state on Discrete input voltage type DC Voltage state1 guaranteed 15...28.8 V for input Current state 1 guaranteed >= 2.5 mA for input Voltage state 0 guaranteed 0...5 V for input Current state 0 guaranteed <= 1 mA for input Input impedance 3.4 kOhm Response time 4 ms for turn-on 4 ms for turn-off Current per output common 7 A Mechanical durability 20000000 cycles Minimum load 10 mA at 5 V DC for relay output Local signalling Green for I/O state Electrical connection Removable screw terminal block pitch 3.81 mm with 17 terminal(s) of 1.5 mm² connection capacity for inputs Removable screw terminal block pitch 3.81 mm with 11 terminal(s) of 1.5 mm² connection capacity for outputs Cable length <= 30 m unshielded cable for regular input Insulation Non-insulated between inputs 500 V AC between output and internal logic Non-insulated between outputs 500 V AC between input and internal logic 1500 V AC between input groups and output groups 750 V AC between open contact |
|---|---|
| Marking CE | Mounting support Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | Plate or panel with fixing kit |
| Height 90 mm | Depth 84.6 mm Width 42.9 mm |
Environment
| Note | Standards EN/IEC 61010-2-201 EN/IEC 61131-2 Product certifications C-Tick cULus Resistance to electrostatic discharge 4 kV (on contact) conforming to EN/IEC 61000-4-2 8 kV (in air) conforming to EN/IEC 61000-4-2 Resistance to electromagnetic fields 10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 Resistance to magnetic fields 30 A/m at 50...60 Hz conforming to EN/IEC 61000-4-8 Resistance to fast transients 2 kV for relay output conforming to EN/IEC 61000-4-4 1 kV for I/O conforming to EN/IEC 61000-4-4 Surge withstand 1 kV for input in common mode conforming to EN/IEC 61000-4-5 2 kV for output in common mode conforming to EN/IEC 61000-4-5 Resistance to conducted disturbances, induced by radio frequency fields 10 Vrms at 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 Vrms at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) Electromagnetic emission Radiated emissions, test level: 40 dBμV/m QP with class A, condition of test: 10 m (radio frequency: 30...230 MHz) conforming to EN/IEC 55011 Radiated emissions, test level: 47 dBμV/m QP with class A, condition of test: 10 m (radio frequency: 230 MHz...1 GHz) conforming to EN/IEC 55011 Ambient air temperature for operation -10...55 °C for horizontal installation -10...35 °C for vertical installation |
|---|---|
| Ambient air temperature for storage -25...70 °C | Relative humidity 10...95 % without condensation in operation 10...95 % without condensation in storage |
| IP degree of protection IP20 with protective cover in place | Pollution degree 2 |
| Operating altitude 0...2000 m | Storage altitude 0...3000 m Vibration resistance 3.5 mm (vibration frequency: 5...8.4 Hz) on DIN rail 3 gn (vibration frequency: 8.4...150 Hz) on DIN rail 3.5 mm (vibration frequency: 5...8.4 Hz) on panel 3 gn (vibration frequency: 8.4...150 Hz) on panel Shock resistance 15 gn (test wave duration:11 ms) |
Offer Sustainability
| Sustainable offer status Green Premium product | RoHS (date code: YYWW) Compliant - since 1348 - Schneider Electric declaration of conformity |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
