TM3AI8
Schneider Electric
Overview

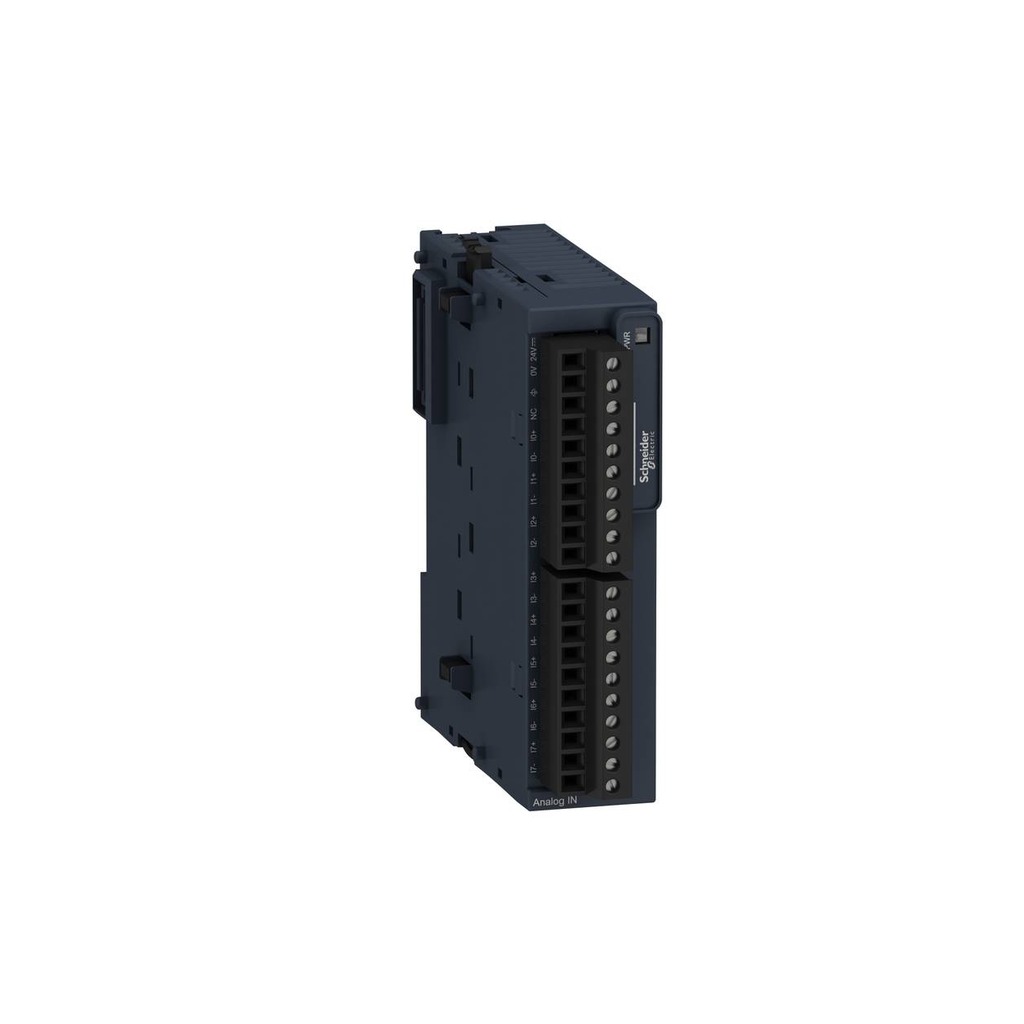

The TM3AI8 is a distributed I/O module in the Modicon TM logic controller / I/O range from Schneider Electric. Analog Input Module, 8 channels, 12-bit.
Application & Technical Notes
As a modicon tm logic controller / i/o device, the TM3AI8 is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It localises I/O close to the field devices, reducing wiring length and bringing intelligence to the periphery of the installation.
Key published characteristics include a 24 Vdc (via TM3 bus) rating, an operating temperature range of 0...+55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0...+55 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25...+70 °C. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM3AI8, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM3AI8?
The TM3AI8 is a modicon tm logic controller / i/o device in the Modicon TM logic controller / I/O range from Schneider Electric. It belongs to the Modicon TM logic controller / I/O automation family.
What are the key technical ratings of the TM3AI8?
Its published highlights include 24 Vdc (via TM3 bus), operating temperature 0...+55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM3AI8 mounted or installed?
Installation follows the standard Modicon TM logic controller / I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TM3AI8 compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM3AI8?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Analog Input Module, 8 channels, 12-bit
I/O Specifications
| Module type | Analog input (voltage/current configurable per channel) |
|---|---|
| Channels | 8 |
| Signal type | 0-10 Vdc, ±10 Vdc, 0-20 mA, 4-20 mA (software configurable per channel) |
| Range | 0-10 V / ±10 V / 0-20 mA / 4-20 mA |
| Resolution | 12 bits (11 bits + sign for bipolar) |
| Accuracy | ±0.1% of full scale at 25 °C (±1% FS over temperature) |
| Isolation | 1500 V AC between input and supply; 500 V AC between input and internal logic |
| Diagnostics | Channel status, module status, bus status |
| Response time | Conversion: 1 ms + 1 ms per channel + 1 controller cycle time; sampling 1 ms per channel |
| Wiring | Removable screw terminal block, 3.81 mm pitch |
Electrical
| Supply voltage | 24 Vdc (via TM3 bus) |
|---|---|
| Power consumption | Not available |
| Bus current | 50 mA at 5 V DC (full load); 40 mA at 24 V DC |
Environmental
| Operating temperature | 0...+55 °C |
|---|---|
| Storage temperature | -25...+70 °C |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 90 × 23.6 × 70 mm |
|---|---|
| Weight | 0.115 kg |
Compatibility
| Compatible platforms | Modicon M221, M241, M251, M262 |
|---|
Status
| Lifecycle | Active (Last verified: 2026-09) |
|---|
Lifecycle
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
