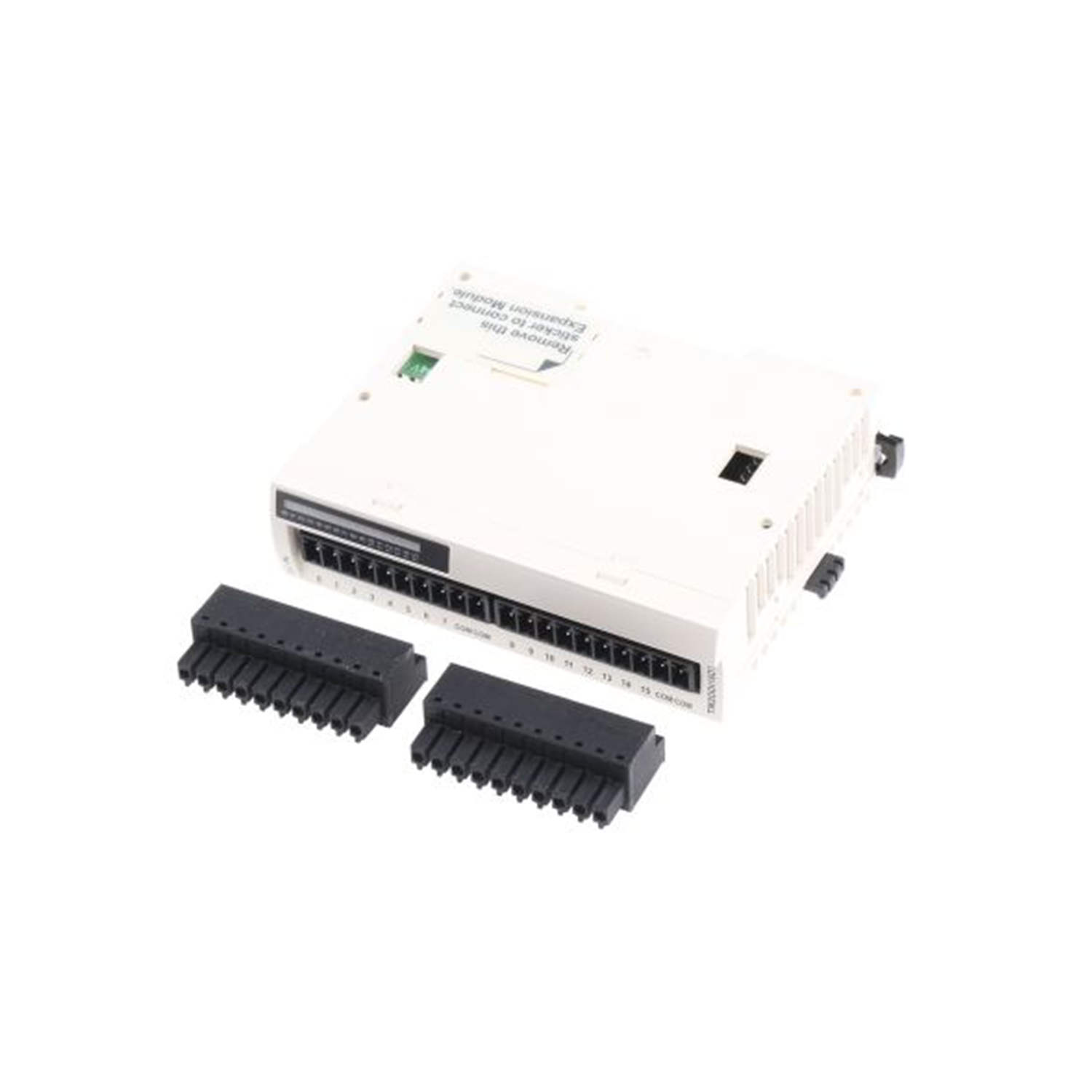

TM2DDI16DT
Schneider Electric
Overview
The TM2DDI16DT is an I/O expansion module in the Modicon M238 logic controller range from Schneider Electric. It is engineered for industrial automation duties within the Modicon TM logic controller / I/O ecosystem.
Application & Technical Notes
As an i/o expansion module, the TM2DDI16DT is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include 35 mm symmetrical din rail mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM2DDI16DT, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon TM logic controller / I/O architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM2DDI16DT?
The TM2DDI16DT is an i/o expansion module in the Modicon M238 logic controller range from Schneider Electric. It is described by the manufacturer as: I/O expansion module.
What are the key technical ratings of the TM2DDI16DT?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TM2DDI16DT mounted or installed?
It uses 35 mm symmetrical DIN rail. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the TM2DDI16DT compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM2DDI16DT?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
TM2DDI16DT Digital Input Module
Main
| Range of product | Modicon M238 logic controller Product or component type I/O expansion module Discrete input number 16 |
|---|---|
| Discrete input voltage | 24 V Discrete input voltage type DC |
Complementary
| Note | Range compatibility Twido Advantys OTB |
|---|---|
| Input voltage limits | 20.4...28.8 V Discrete input logic Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm Number of common point 1 |
| Response time | 4 ms at state 0 4 ms at state 1 |
| Isolation between channels | None Isolation between channels and internal logic 500 V for 1 minute |
| Current consumption | 40 mA at 5 V DC at state 1 for all input |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block Mounting support 35 mm symmetrical DIN rail |
| Product weight | 0.065 kg |
Environment
| Depth | 84.6 mm |
|---|---|
| Height | 90 mm |
| Width | 23.5 mm |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.4 cm |
| Package 1 Width | 10.6 cm |
| Package 1 Length | 12.8 cm |
| Package 1 Weight | 196.0 g |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
