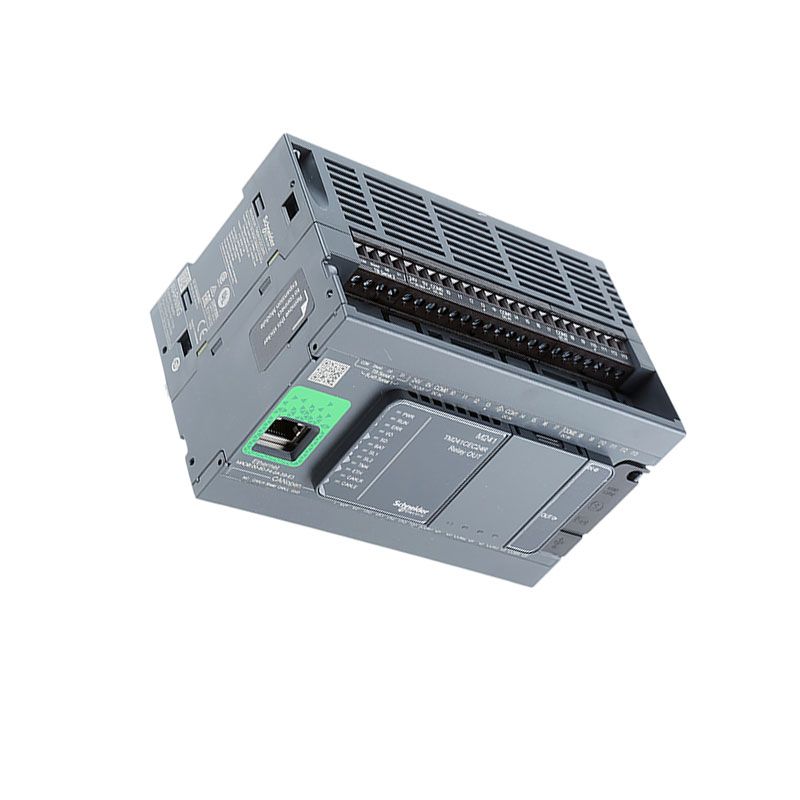

TM241CEC24R
Schneider Electric
Overview
The TM241CEC24R is a Logic controller in the Modicon M241 range from Schneider Electric. It executes control logic for Modicon TM logic controller / I/O architectures and operates from a limits 85…264 V supply.
Application & Technical Notes
As a logic controller, the TM241CEC24R is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a limits 85…264 V rating, an operating temperature range of -10…50 °C (vertical installation), top hat type th35-15 rail conforming to iec 60715 mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-10…50 °C (vertical installation)); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25…70 °C. Avoid condensation — the rated humidity is 10…95 %, without condensation (in operation); store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM241CEC24R, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon TM logic controller / I/O architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM241CEC24R?
The TM241CEC24R is a logic controller in the Modicon M241 range from Schneider Electric. It is described by the manufacturer as: Logic controller.
What are the key technical ratings of the TM241CEC24R?
Its published highlights include limits 85…264 V, operating temperature -10…50 °C (vertical installation). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM241CEC24R mounted or installed?
It uses Top hat type TH35-15 rail conforming to IEC 60715. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the TM241CEC24R compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM241CEC24R?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Schneider Electric TM241CEC24R
Main
| Note | Range of product Modicon M241 |
|---|---|
| Product or component | type |
| Logic controller | [Us] rated supply voltage 100...240 V AC Discrete input number 14, discrete input 8 fast input conforming to IEC 61131-2 Type 1 |
| Discrete output type Transistor | Relay Discrete output number 6 relay 4 transistor 4 fast output Discrete output voltage 5...125 V DC for relay output 5...250 V AC for relay output 24 V DC for transistor output Discrete output current 2 A for relay output (Q4...Q9) 0.1 A for fast output (PTO mode) (TR0...TR3) 0.5 A for transistor output (TR0...TR3) |
Complementary
| Note | Discrete I/O number 24 Maximum number of I/O expansion module 7 (local I/O-Architecture) 14 (remote I/O-Architecture) Supply voltage limits 85…264 V Network frequency 50/60 Hz |
|---|---|
| Discrete input logic Sink or source | N/A |
| Discrete input voltage 24 V | Discrete input voltage type DC Voltage state 1 guaranteed >= 15 V for input Voltage state 0 guaranteed <= 5 V for input Discrete input current 5 mA for input Input impedance 4.7 kOhm for input Response time 50 µs turn-on, I0...I13 terminal(s) for input Configurable filtering time 1 µs for fast input Discrete output logic Positive logic (source) Output voltage limits 125 V DC relay output 30 V DC transistor output 277 V AC relay output Maximum output frequency 1 KHz for transistor output 20 KHz for fast output (PWM mode) 100 kHz for fast output (PLS mode) Accuracy +/- 0.1 % at 0.02…0.1 kHz for fast output +/- 1 % at 0.1…1 kHz for fast output Protection type Short-circuit protection for transistor output Short-circuit and overload protection with automatic reset for transistor output Reverse polarity protection for transistor output Without protection for relay output Reset time 10 Ms automatic reset output 12 s automatic reset fast output Memory capacity 64 MB for system memory RAM Data backed up 128 MB built-in flash memory for backup of user programs Data storage equipment <= 16 GB SD card (optional) Battery type BR2032 lithium non-rechargeable, battery life: 4 year(s) Backup time 2 years at 25 °C Execution time for 1 KInstruction 0.3 Ms for event and periodic task 0.7 ms for other instruction Application structure 4 cyclic master tasks 8 external event tasks 8 event tasks 3 cyclic master tasks + 1 freewheeling task Realtime clock With Clock drift <= 60 s/month at 25 °C Positioning functions PTO function 4 channel(s) (positioning frequency: 100 kHz) Counting input number 4 fast input (HSC mode) at 200 kHz 14 standard input at 1 kHz Control signal type A/B at 100 kHz for fast input (HSC mode) Pulse/Direction at 200 kHz for fast input (HSC mode) Single phase at 200 kHz for fast input (HSC mode) Integrated connection type Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface Non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface USB port with mini B USB 2.0 connector Ethernet with RJ45 connector CANopen J1939 with male SUB-D 9 connector Supply (serial 1)serial link supply: 5 V, <200 mA Transmission rate 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 480 Mbit/s for bus length of 3 m for USB 10/100 Mbit/s for Ethernet 1000 kbit/s for bus length of 20 m for CANopen 800 kbit/s for bus length of 40 m for CANopen 500 kbit/s for bus length of 100 m for CANopen 250 kbit/s for bus length of 250 m for CANopen 125 kbit/s for bus length of 500 m for CANopen 50 kbit/s for bus length of 1000 m for CANopen 20 kbit/s for bus length of 2500 m for CANopen Communication port protocol Non isolated serial link: Modbus master/slave Port Ethernet 10BASE-T/100BASE-TX - 1 port(s) copper cable Ethernet services SNMP client/server Modbus TCP slave device Modbus TCP server Modbus TCP client IEC VAR ACCESS FTP client/server SQL client DHCP client Ethernet/IP adapter Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client Local signalling 1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state 1 LED (green) for Ethernet port activity 1 LED (green) for CANopen run 1 LED (green) for CANopen error Electrical connection Removable screw terminal blockfor inputs and outputs (pitch 5.08 mm) Removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm) Maximum cable distance between devices Unshielded cable: <50 m for input Shielded cable: <10 m for fast input Unshielded cable: <50 m for output Shielded cable: <3 m for fast output Insulation Between supply and internal logic at 500 V AC Non-insulated between supply and ground |
| Marking CE | Sensor power supply 24 V DC at 400 mA supplied by the controller Surge withstand 2 KV power lines (AC) common mode conforming to EN/IEC 61000-4-5 2 KV relay output common mode conforming to EN/IEC 61000-4-5 1 KV shielded cable common mode conforming to EN/IEC 61000-4-5 1 KV power lines (AC) differential mode conforming to EN/IEC 61000-4-5 1 KV relay output differential mode conforming to EN/IEC 61000-4-5 1 KV input common mode conforming to EN/IEC 61000-4-5 1 kV transistor output common mode conforming to EN/IEC 61000-4-5 Web services Web server Maximum number of connections 16 Ethernet/IP device 8 Modbus server CANopen feature profile DR 303-1 DS 301 V4.02 Number of slave 63 CANopen: Mounting support Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | Plate or panel with fixing kit |
| Height 90 mm | Depth 95 mm Width 150 mm Net weight 0.53 kg |
Environment
| Note | Standards ANSI/ISA 12-12-01 |
|---|---|
| CSA C22.2 No 142 | N/A |
| CSA C22.2 No 213 | EN/IEC 61131-2:2007 |
| Marine specification (LR, ABS, DNV, GL) | UL 508 Product certifications RCM CULus CE UKCA DNV-GL ABS LR Resistance to electrostatic discharge 8 KV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 Resistance to electromagnetic fields 10 V/M 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/M 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 Resistance to fast transients 2 KV (power lines) conforming to EN/IEC 61000-4-4 2 KV (relay output) conforming to EN/IEC 61000-4-4 1 KV (Ethernet line) conforming to EN/IEC 61000-4-4 1 KV (serial link) conforming to EN/IEC 61000-4-4 1 KV (input) conforming to EN/IEC 61000-4-4 1 kV (transistor output) conforming to EN/IEC 61000-4-4 Resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to |
| Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10… 150 kHz conforming to EN/IEC 55011 Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines) at 0.15…0.5 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines) at 0.5…300 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150… 1500 kHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 Immunity to microbreaks 10 ms Ambient air temperature for operation -10…50 °C (vertical installation) -10…55 °C (horizontal installation) |
| Ambient air temperature for storage -25…70 °C | Relative humidity 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection IP20 with protective cover in place | Pollution degree 2 |
| Operating altitude 0...2000 m | Storage altitude 0…3000 m Vibration resistance 3.5 mm at 5…8.4 Hz on symmetrical rail 3 gn at 8.4…150 Hz on symmetrical rail 3.5 mm at 5…8.4 Hz on panel mounting 3 gn at 8.4…150 Hz on panel mounting |
| Shock resistance 15 gn for 11 ms | N/A |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 11.335 cm Package 1 Width 13.188 cm Package 1 Length 18.727 cm Package 1 Weight 780.0 g |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
