TM218LDA40DR2HN
Schneider Electric
Overview

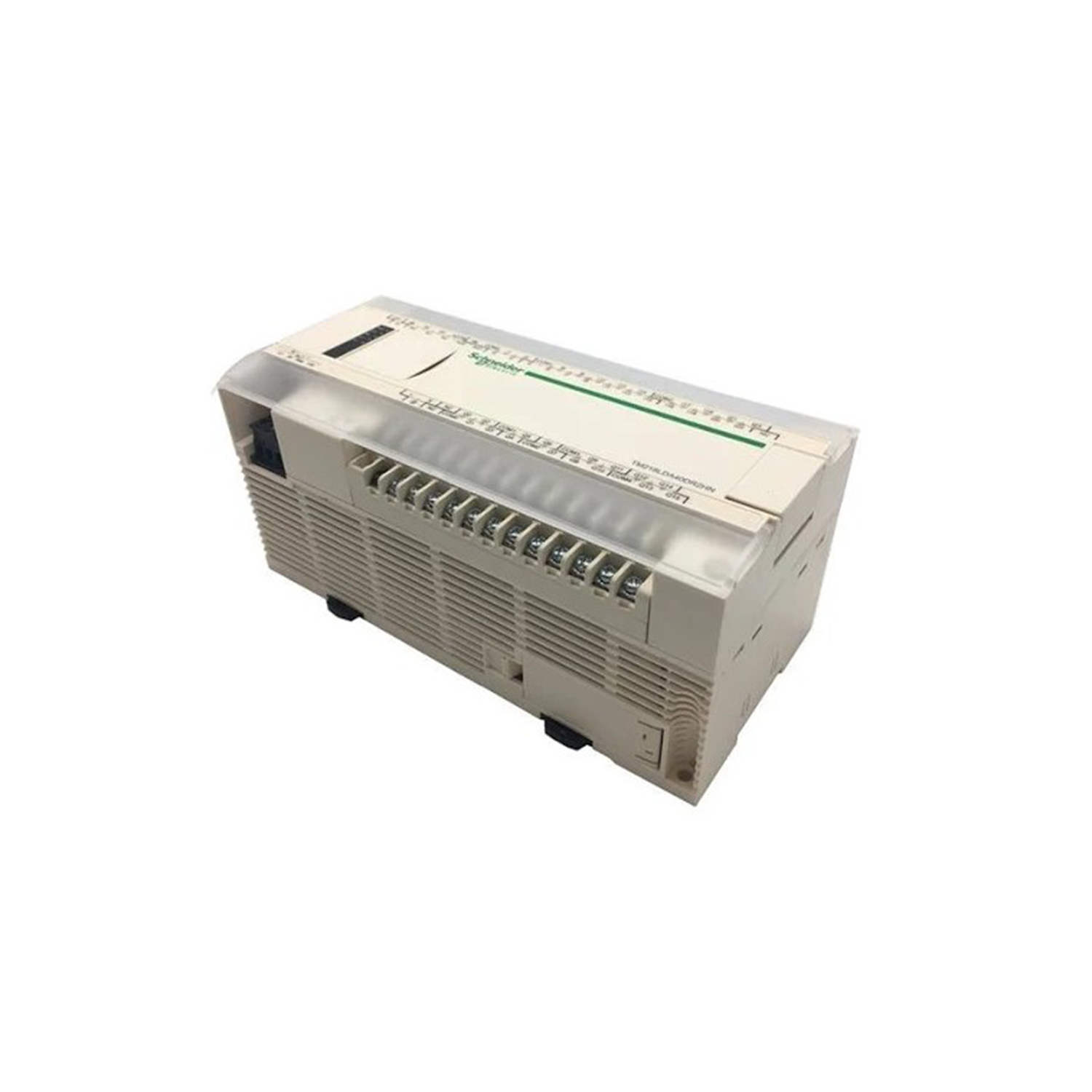

The TM218LDA40DR2HN is a distributed I/O module in the Modicon TM logic controller / I/O range from Schneider Electric. Compact Logic Controller, 40 I/O, relay outputs, 2 analog outputs, Ethernet, 100-240 VAC.
Application & Technical Notes
As a modicon tm logic controller / i/o device, the TM218LDA40DR2HN is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It localises I/O close to the field devices, reducing wiring length and bringing intelligence to the periphery of the installation.
Key published characteristics include a 100...240 V AC (50/60 Hz) rating, an operating temperature range of 0...+55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0...+55 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25...+70 °C. Avoid condensation — the rated humidity is 10...95% (non-condensing); store and operate the module in a dry, pollution-degree-appropriate enclosure. Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM218LDA40DR2HN, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Modicon TM logic controller / I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM218LDA40DR2HN?
The TM218LDA40DR2HN is a modicon tm logic controller / i/o device in the Modicon TM logic controller / I/O range from Schneider Electric. It belongs to the Modicon TM logic controller / I/O automation family.
What are the key technical ratings of the TM218LDA40DR2HN?
Its published highlights include 100...240 V AC (50/60 Hz), operating temperature 0...+55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM218LDA40DR2HN mounted or installed?
Installation follows the standard Modicon TM logic controller / I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TM218LDA40DR2HN compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM218LDA40DR2HN?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Compact Logic Controller, 40 I/O, relay outputs, 2 analog outputs, Ethernet, 100-240 VAC
Hardware
| Processor | Not available |
|---|---|
| Clock speed | Not available |
| Program memory | 1 MB Flash (program and data backup) |
| Data memory | 1 MB RAM (application execution) |
| Programming software | SoMachine / EcoStruxure Machine Expert |
| Scan speed | 1 Kinst per 2 ms (70% boolean + 30% arithmetic, typical) |
I/O Capacity
| Digital inputs | 24 (20 regular 24 Vdc + 4 fast HSC 10 kHz) |
|---|---|
| Digital outputs | 16 (relay, 2 A per point) |
| Analog inputs | None |
| Analog outputs | 2 (0-10 Vdc) |
| High-speed counters | 2 × 10 kHz |
| Pulse outputs | Not available |
| Expansion modules (max) | Up to 7 TM2 expansion modules; max 248 I/O |
Communication
| Built-in ports | 1× Ethernet RJ45, 2× RS-485 (terminal block), 1× mini USB-B (programming) |
|---|---|
| Protocols | Modbus TCP (Ethernet), Modbus RTU/ASCII (RS-485), proprietary programming protocol (USB) |
| Communication expansion | Communication cartridge slot (TMCOM series) for optional Modbus/CANopen/Profibus expansion |
Electrical
| Supply voltage | 100...240 V AC (50/60 Hz) |
|---|---|
| Power consumption | 34 W |
| Bus current | Not applicable (self-powered compact controller; no backplane bus) |
Environmental
| Operating temperature | 0...+55 °C |
|---|---|
| Storage temperature | -25...+70 °C |
| Relative humidity | 10...95% (non-condensing) |
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 94.5 × 150 × 70 mm |
|---|---|
| Weight | 0.69 kg |
Status
| Lifecycle | Discontinued; Replacement: Modicon M221 (Last verified: 2026-09) |
|---|
Lifecycle
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
