TM218LDA24DRN
Schneider Electric
Overview

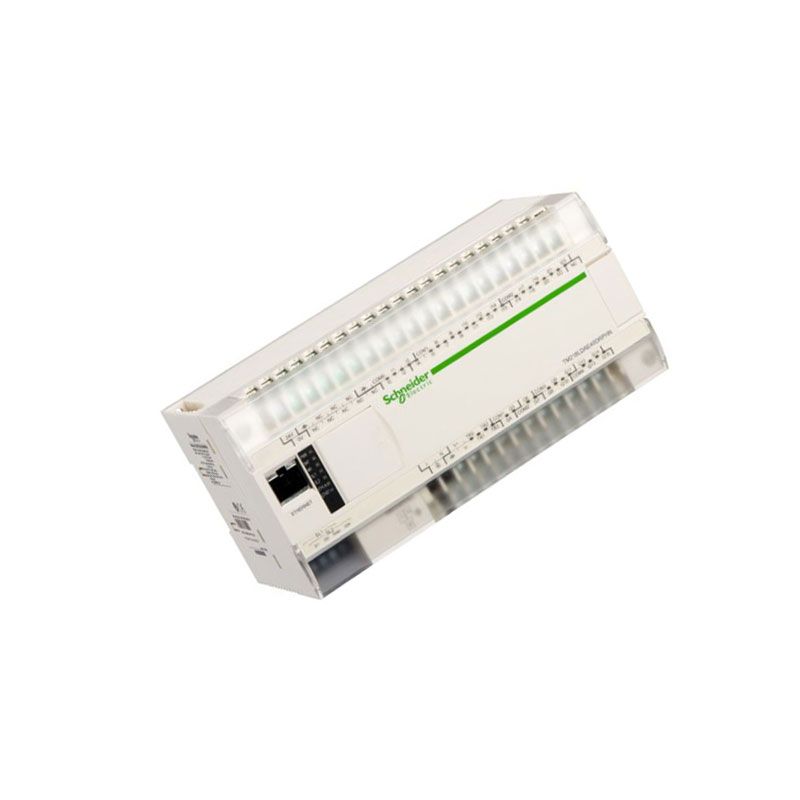

The TM218LDA24DRN is a Logic controller in the Modicon M218 range from Schneider Electric. It executes control logic for Modicon TM logic controller / I/O architectures and operates from a limits 85…264 V supply.
Application & Technical Notes
As a logic controller, the TM218LDA24DRN is intended for deployment in panel-based control cabinets and machine enclosures where Modicon TM logic controller / I/O equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a limits 85…264 V rating, an operating temperature range of 0…55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (0…55 °C); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -25…70 °C. Avoid condensation — the rated humidity is 95 %, without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TM218LDA24DRN, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your Modicon TM logic controller / I/O architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TM218LDA24DRN?
The TM218LDA24DRN is a logic controller in the Modicon M218 range from Schneider Electric. It is described by the manufacturer as: Logic controller.
What are the key technical ratings of the TM218LDA24DRN?
Its published highlights include limits 85…264 V, operating temperature 0…55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TM218LDA24DRN mounted or installed?
Installation follows the standard Modicon TM logic controller / I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TM218LDA24DRN compatible with my controller?
It is part of the Modicon TM logic controller / I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TM218LDA24DRN?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
TM218LDA24DRHN
Main
| Note | Range of product Modicon M218 |
|---|---|
| Product or component | type |
| Logic controller | N/A |
Complementary
| Note | [Us] rated supply voltage 100...240 V AC Discrete I/O number 24 Discrete input number 14 voltage inputs Discrete output number 10 relay output |
|---|---|
| Discrete input voltage 24 V | Discrete input voltage type DC Discrete output type Relay Power consumption in W 25 W at 100...240 V AC Analogue input number 14 Power supply input current 250 mA at 22...27 V Supply voltage limits 85…264 V Input impedance 4700 Ohm for standard input 2800 Ohm for high speed input Response time 2 ms turn-on, turn-off Output voltage limits 19.2...28.8 V DC 19.2...28.8 V Maximum voltage drop <1.5 V Maximum cable distance between devices Shielded cable: <5 m |
Environment
| IP degree of protection IP20 | Product certifications CE |
|---|---|
| Shock resistance 15 gn for 11 ms | Vibration resistance 3.5 mm at 5…150 Hz Relative humidity 95 %, without condensation Ambient air temperature for operation 0…55 °C |
| Ambient air temperature for storage -25…70 °C | Pollution degree 2 |
| Operating altitude 0...2000 m | Storage altitude 0…3000 m |
Packing Units
| Unit Type of Package 1 PCE | Number of Units in Package 1 1 Package 1 Height 12.8 cm Package 1 Width 9.5 cm Package 1 Length 18.2 cm Package 1 Weight 716.0 g |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
