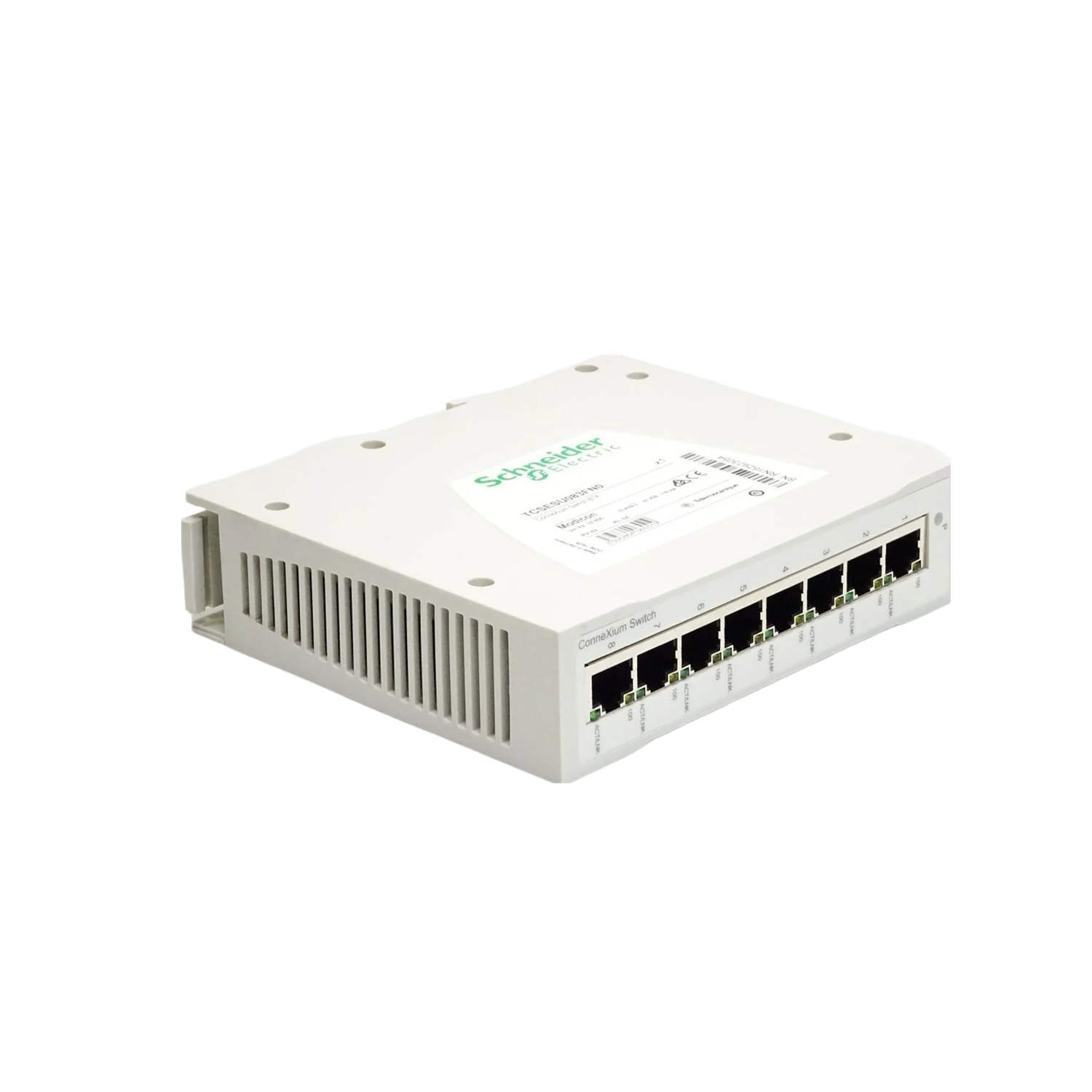

TCSESU083FN0
Schneider Electric
Overview
The TCSESU083FN0 is an Ethernet TCP/IP unmanaged switch in the the Schneider Electric automation portfolio range from Schneider Electric. It extends the Schneider Electric automation portfolio connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet tcp/ip unmanaged switch, the TCSESU083FN0 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include a 9.6-32V DC (SELV) rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TCSESU083FN0, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the the Schneider Electric automation portfolio network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TCSESU083FN0?
The TCSESU083FN0 is an ethernet tcp/ip unmanaged switch in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Ethernet TCP/IP unmanaged switch.
What are the key technical ratings of the TCSESU083FN0?
Its published highlights include 9.6-32V DC (SELV). Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TCSESU083FN0 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TCSESU083FN0 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TCSESU083FN0?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
ConneXium Unmanaged Ethernet Switch, 8-port copper
Network Specifications
| Product type | Ethernet TCP/IP unmanaged switch |
|---|---|
| Managed/Unmanaged | Unmanaged |
| Ports | 8 x shielded RJ45 10/100BASE-TX copper |
| Protocol support | Ethernet TCP/IP |
| Concept | Transparent Ready |
| Max cascade | Unlimited |
| Switching capacity | 1.6 Gbps |
| MAC table size | 8K entries |
| Jumbo frame | 9216 bytes |
Electrical
| Supply voltage | 9.6-32V DC (SELV) |
|---|---|
| Power consumption | 4.1 W |
Environmental
| Operating temperature | Not available |
|---|---|
| Protection rating | IP20 |
Physical
| Dimensions (H×W×D) | 35 × 138 × 121 mm |
|---|---|
| Weight | 0.246 kg |
| Mounting | 35 mm symmetrical DIN rail |
Lifecycle
| Lifecycle | Active (in production, ConneXium range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
