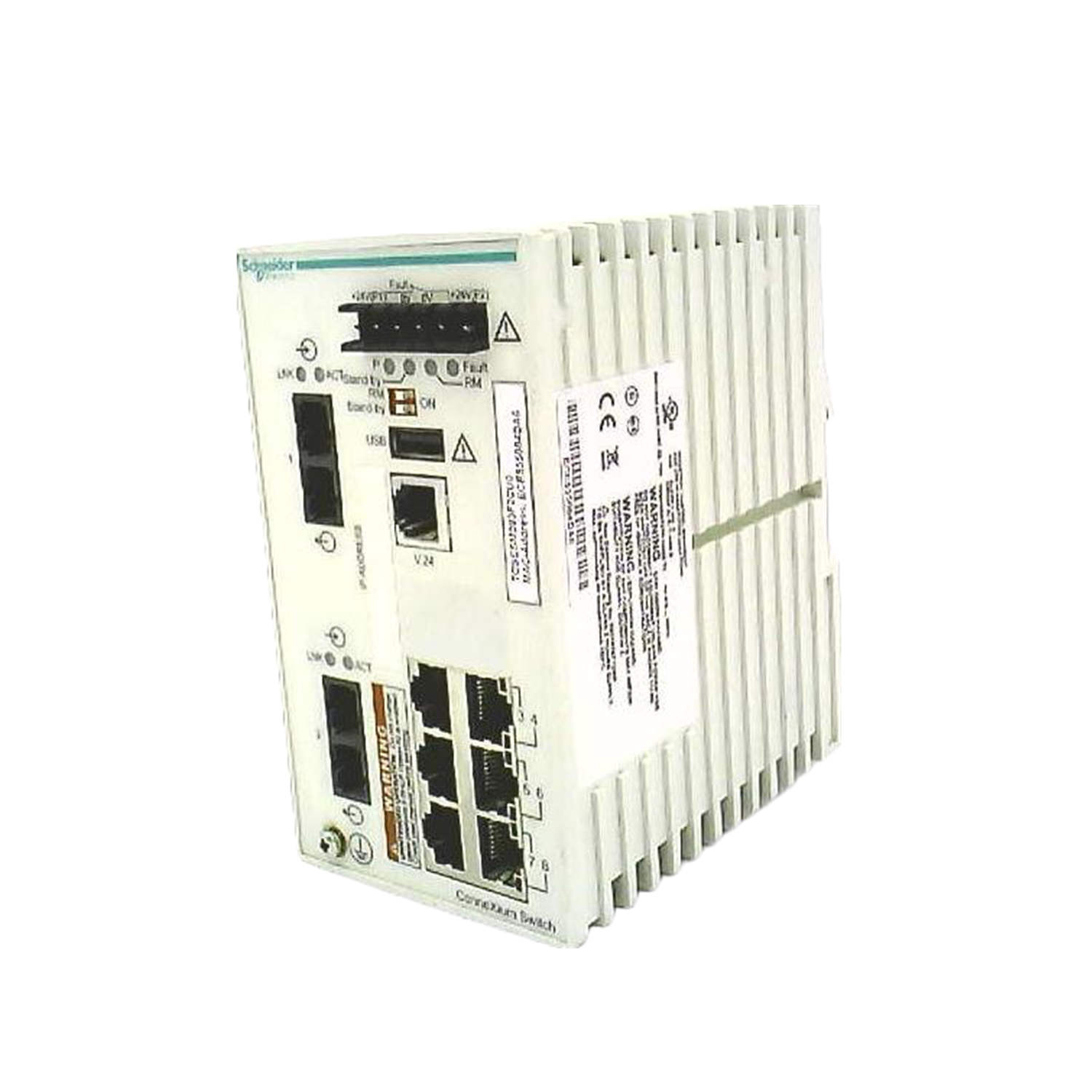

TCSESM083F2CU0
Schneider Electric
Overview
The TCSESM083F2CU0 is an Ethernet TCP/IP managed switch in the the Schneider Electric automation portfolio range from Schneider Electric. It extends the Schneider Electric automation portfolio connectivity through its onboard communication interface.
Application & Technical Notes
As an ethernet tcp/ip managed switch, the TCSESM083F2CU0 is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include a 9.6-32V DC / 18-30V AC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TCSESM083F2CU0, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the the Schneider Electric automation portfolio network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TCSESM083F2CU0?
The TCSESM083F2CU0 is an ethernet tcp/ip managed switch in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Ethernet TCP/IP managed switch.
What are the key technical ratings of the TCSESM083F2CU0?
Its published highlights include 9.6-32V DC / 18-30V AC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TCSESM083F2CU0 mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TCSESM083F2CU0 compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TCSESM083F2CU0?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
ConneXium Managed Ethernet Switch, 6 copper + 2 multimode fiber
Network Specifications
| Product type | Ethernet TCP/IP managed switch |
|---|---|
| Managed/Unmanaged | Managed |
| Ports | 6 x RJ45 10/100BASE-TX copper + 2 x 100BASE-FX multimode fiber (SC duplex) |
| Protocol support | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, LLDP, Telnet, SNTP, MRP |
| Fiber distance | 4 km (62.5/125 µm), 5 km (50/125 µm) |
| Redundancy | HiPER ring, RSTP |
| Max ring nodes | 50 |
| Concept | Transparent Ready |
| Switching capacity | 5.6 Gbps |
| MAC table size | 8K entries |
| Jumbo frame | 9216 bytes |
Electrical
| Supply voltage | 9.6-32V DC / 18-30V AC |
|---|
Environmental
| Operating temperature | Not available |
|---|---|
| Protection rating | IP20 |
Physical
| Mounting | 35 mm symmetrical DIN rail |
|---|
Lifecycle
| Lifecycle | Active (in production, ConneXium range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
