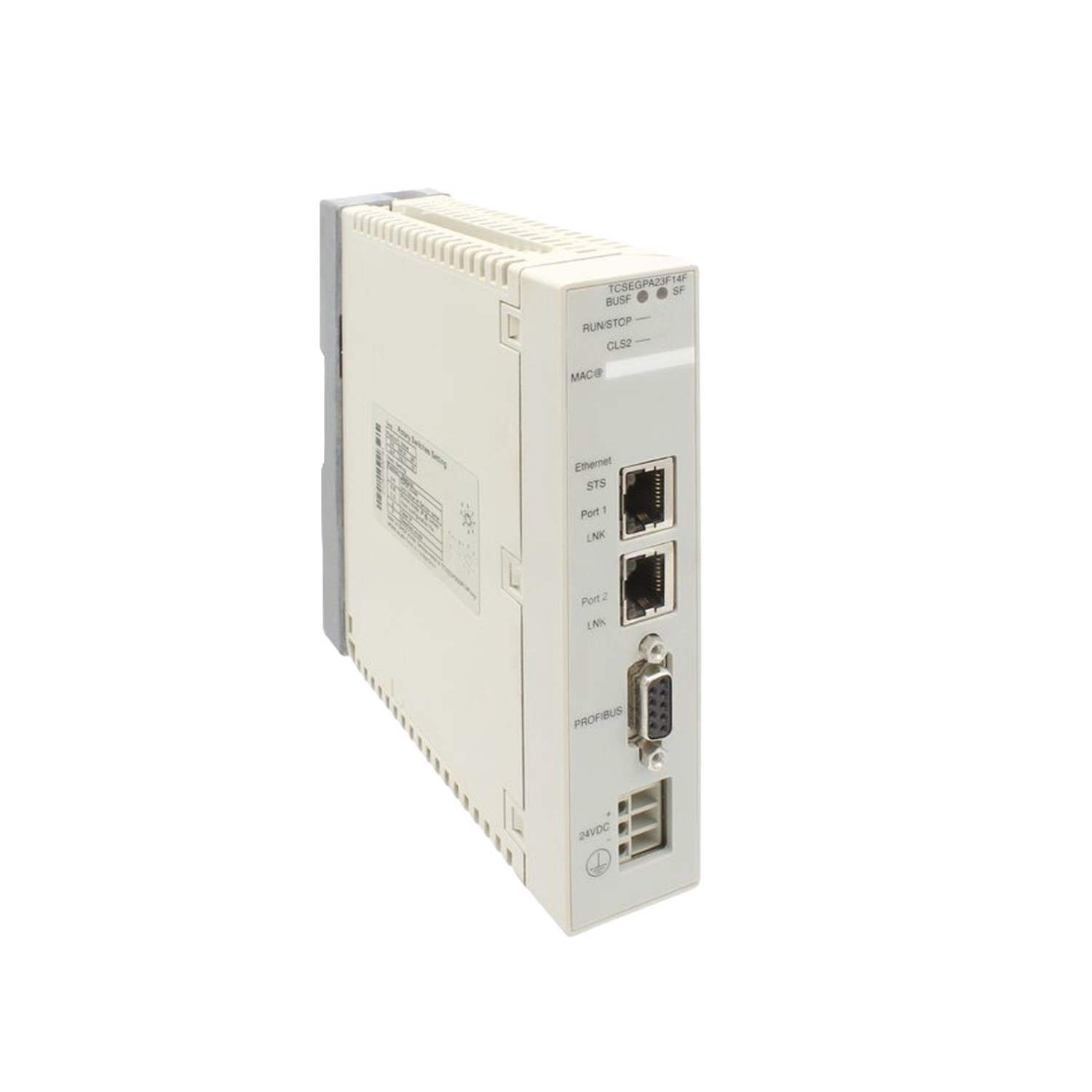

TCSEGPA23F14F
Schneider Electric
Overview
The TCSEGPA23F14F is a Communication gateway (Profibus DP V1 remote master / PRM) in the the Schneider Electric automation portfolio range from Schneider Electric. It extends the Schneider Electric automation portfolio connectivity through its onboard communication interface.
Application & Technical Notes
As a communication gateway (profibus dp v1 remote master / prm), the TCSEGPA23F14F is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include a 24V DC rating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TCSEGPA23F14F, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the the Schneider Electric automation portfolio network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TCSEGPA23F14F?
The TCSEGPA23F14F is a communication gateway (profibus dp v1 remote master / prm) in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Communication gateway (Profibus DP V1 remote master / PRM).
What are the key technical ratings of the TCSEGPA23F14F?
Its published highlights include 24V DC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the TCSEGPA23F14F mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TCSEGPA23F14F compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TCSEGPA23F14F?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Profibus DP V1 Remote Master / PRM Communication Gateway
Network Specifications
| Product type | Communication gateway (Profibus DP V1 remote master / PRM) |
|---|---|
| Ports | 2 x RJ45 Ethernet (Modbus TCP) + 1 x SUB-D9 (Profibus DP V1) |
| Protocol support | Modbus TCP (slave) to Profibus DP V0/V1 (master) |
| Transmission rate | Profibus 9.6 kbit/s-12 Mbit/s; Modbus TCP 10/100 Mbps |
| Configuration | FDT/DTM technology |
Electrical
| Supply voltage | 24V DC |
|---|---|
| Current consumption | 300 mA at 24V DC |
| Module format | Standard (for Modicon M340/Premium/Quantum) |
Lifecycle
| Lifecycle | Active (in production, ConneXium range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
