TCSEGDB23F24FA
Schneider Electric
Overview

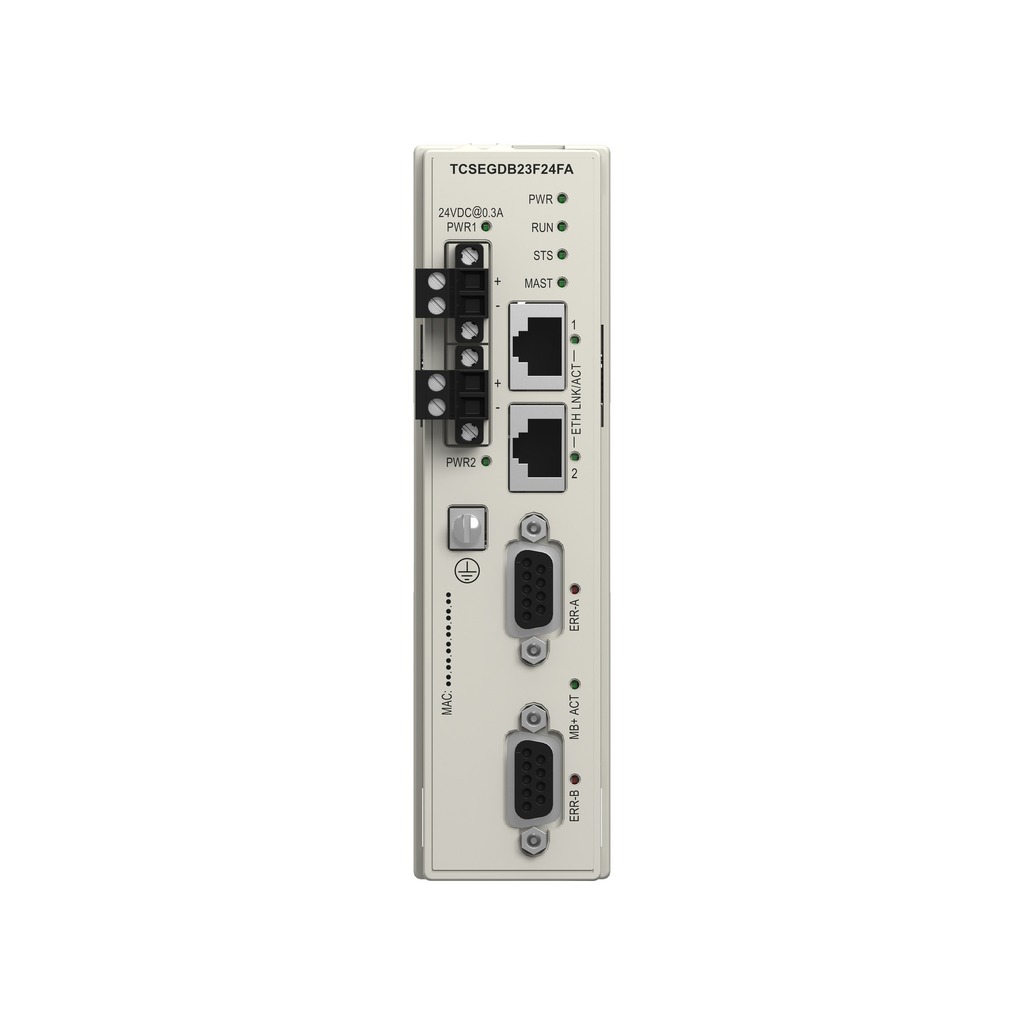

The TCSEGDB23F24FA is a Modbus Plus proxy module (communication gateway) in the the Schneider Electric automation portfolio range from Schneider Electric. It extends the Schneider Electric automation portfolio connectivity through its onboard communication interface.
Application & Technical Notes
As a modbus plus proxy module (communication gateway), the TCSEGDB23F24FA is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the TCSEGDB23F24FA, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the the Schneider Electric automation portfolio network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the TCSEGDB23F24FA?
The TCSEGDB23F24FA is a modbus plus proxy module (communication gateway) in the the Schneider Electric automation portfolio range from Schneider Electric. It is described by the manufacturer as: Modbus Plus proxy module (communication gateway).
What are the key technical ratings of the TCSEGDB23F24FA?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the TCSEGDB23F24FA mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the TCSEGDB23F24FA compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the TCSEGDB23F24FA?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Modbus Plus Proxy Module / Communication Gateway
Network Specifications
| Product type | Modbus Plus proxy module (communication gateway) |
|---|---|
| Ports | 2 x RJ45 Ethernet TCP/IP (Modbus TCP) + 2 x SUB-D9 (Modbus Plus) |
| Protocol support | Ethernet Modbus TCP to Modbus Plus |
| Number of slaves | Up to 128 |
| Communication services | Modbus TCP messaging, Modbus Plus messaging, FDR, SNMP, Global Data, Peer cop dialogue |
| Platform | Modicon M340 automation platform |
Electrical
| Current consumption | 300 mA at 24V DC external |
|---|---|
| Module format | N/A |
Lifecycle
| Lifecycle | Active (in production, ConneXium range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
