STBXBA1000
Schneider Electric
Overview

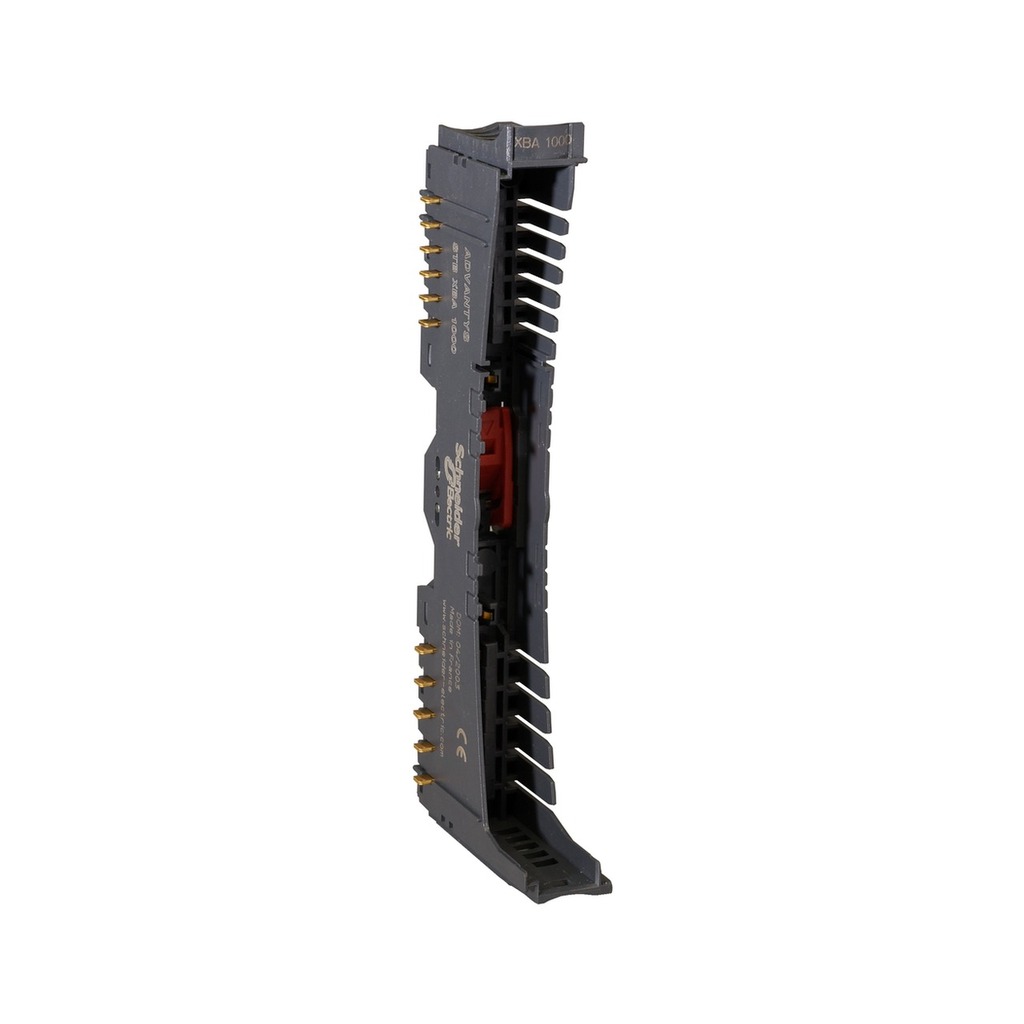

The STBXBA1000 is a distributed I/O module in the Advantys STB distributed I/O range from Schneider Electric. I/O base (standard) for STB digital I/O modules.
Application & Technical Notes
As an advantys stb distributed i/o device, the STBXBA1000 is intended for deployment in panel-based control cabinets and machine enclosures where Advantys STB distributed I/O equipment is installed. It localises I/O close to the field devices, reducing wiring length and bringing intelligence to the periphery of the installation.
Specific electrical and mechanical ratings depend on the exact configuration and suffix of the part; the original datasheet should be consulted for the definitive specification.
Maintenance & Diagnostics
Verify field wiring, shielding and grounding at installation; check terminal torque and confirm signal types match the configured range. Periodically inspect for loose terminations, induced noise and channel-level diagnostics reported by the controller. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the STBXBA1000, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the module matches your Advantys STB distributed I/O rack, the required channel count, signal type and voltage, and the firmware/configuration of the controller. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the STBXBA1000?
The STBXBA1000 is an advantys stb distributed i/o device in the Advantys STB distributed I/O range from Schneider Electric. It belongs to the Advantys STB distributed I/O automation family.
What are the key technical ratings of the STBXBA1000?
The definitive ratings depend on the exact configuration; consult the original datasheet or the source PDF linked on this page for the complete table.
How is the STBXBA1000 mounted or installed?
Installation follows the standard Advantys STB distributed I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the STBXBA1000 compatible with my controller?
It is part of the Advantys STB distributed I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the STBXBA1000?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
I/O base (standard) for STB digital I/O modules
Physical
| Module type | I/O base (standard) |
|---|---|
| Description | Mounting base for STB DDI/DDO digital I/O modules |
| Base width | 13.9 mm |
| Weight | 0.024 kg |
| Compatible modules | STBDDI, STBDDO series |
Environmental
| Operating temperature | Not available |
|---|---|
| Storage temperature | Not available |
| Protection rating | IP20 |
Lifecycle
| Lifecycle | Discontinued (superseded by Modicon X80 range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
