STBNIP2212
Schneider Electric
Overview

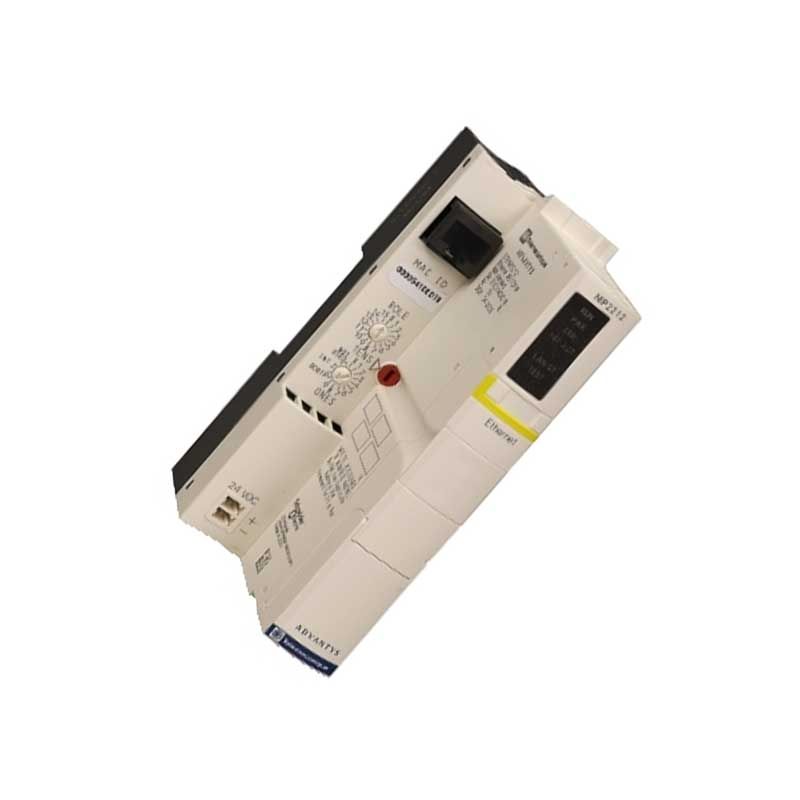

The STBNIP2212 is a Standard Network Interface Module in the Modicon STB distributed I/O solution range from Schneider Electric. It extends Advantys STB distributed I/O connectivity through its onboard communication interface.
Application & Technical Notes
As a standard network interface module, the STBNIP2212 is intended for deployment in panel-based control cabinets and machine enclosures where Advantys STB distributed I/O equipment is installed. It bridges the controller to higher-level networks, HMIs, SCADA and peer devices, carrying configuration, process data and diagnostics.
Key published characteristics include a 24 V DC rating, an operating temperature range of 32…140 °F (0…60 °C) without derating. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (32…140 °F (0…60 °C) without derating); do not exceed it during commissioning or in enclosed panels without airflow. For storage and transit, keep the unit within -40…185 °F (-40…85 °C). Avoid condensation — the rated humidity is 95 % 140 °F (60 °C) without condensation; store and operate the module in a dry, pollution-degree-appropriate enclosure. Confirm network addressing, baud/rate and topology match the rest of the system; keep firmware consistent across the cell. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the STBNIP2212, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Match the protocol, connector and topology to the rest of the Advantys STB distributed I/O network and to the peer devices already installed. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the STBNIP2212?
The STBNIP2212 is a standard network interface module in the Modicon STB distributed I/O solution range from Schneider Electric. It is described by the manufacturer as: Standard Network Interface Module.
What are the key technical ratings of the STBNIP2212?
Its published highlights include 24 V DC, operating temperature 32…140 °F (0…60 °C) without derating. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the STBNIP2212 mounted or installed?
Installation follows the standard Advantys STB distributed I/O mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the STBNIP2212 compatible with my controller?
It is part of the Advantys STB distributed I/O family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the STBNIP2212?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The Schneider Electric STBNIP2212 is a dedicated network interface module designed for communications over Modbus TCP/IP. It operates at an input voltage of 24 V DC and has a current draw of 100 mA, providing the necessary power requirements for efficient operation.
Complementary
| Communication Service | N/A |
|---|---|
| SNMP agent | Modbus TCP/IP messaging Embedded web (configuration,diagnostics and access to variable) BootP/DHCP protocol Power supply type SELV |
| Height | 5.05 in (128.3 mm) |
| Width | 1.6 in (40.5 mm) |
| Depth | 2.8 in (70 mm) |
| Net Weight | 0.29 lb(US) (0.13 kg) |
Environment
| IP Degree of Protection | IP20 |
|---|---|
| Marking | CE |
| Product certifications | CSA UL FM Class 1 Division 2 ATEX Cat 3G |
| C-tick | N/A |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) without derating -13…158 °F (-25…70 °C) with derating factor |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 95 % 140 °F (60 °C) without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | 3 gn 58…150 Hz) on 35 mm DIN rail 5 gn 58…150 Hz) on 35 mm DIN rail +/-0.35 mm 10…58 Hz) |
| Shock resistance | 30 gn 11 msIEC 88 reference 2-27 |
Ordering and shipping details
| Category | US1PC3218215 |
|---|---|
| Discount Schedule | PC32 GTIN 3595862055116 |
| Returnability | Yes |
| Country of origin | FR |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.732 in (4.400 cm) |
| Package 1 Width | 2.874 in (7.300 cm) |
| Package 1 Length | 5.118 in (13.000 cm) |
| Package weight(Lbs) | 5.750 oz (163.000 g) |
Description
| Note | The STBNIP2212 from Schneider Electric serves as a network interface module, facilitating communication through Modbus TCP/IP protocols. Designed with a 24 V DC input voltage, it consumes a current of 100 mA, ensuring efficient functionality in various applications. This module is intended for indoor use, rated with an IP20 enclosure, which offers protection against solid objects larger than 12 mm but is not suitable for exposure to moisture or dust. This device measures 80 mm in width, 120 mm in height, and 70 mm in depth, making it a compact addition to any control system. Weighing only 0.3 kg, it is lightweight and easy to install. Communication is handled via two RJ45 ports, providing reliable network connections. For operational status monitoring, the STBNIP2212 is equipped with LED indicators that provide real-time information regarding status, power, and potential errors. Power to the module is supplied directly from the bus, streamlining installation and connectivity. This module complies with both CE and UL standards, ensuring it meets essential safety and quality guidelines. The temperature range for reliable operation ranges from 0 °C to 60 °C, allowing it to function effectively in a variety of controlled indoor environments. |
|---|
