SR3B261JD
Schneider Electric
Overview

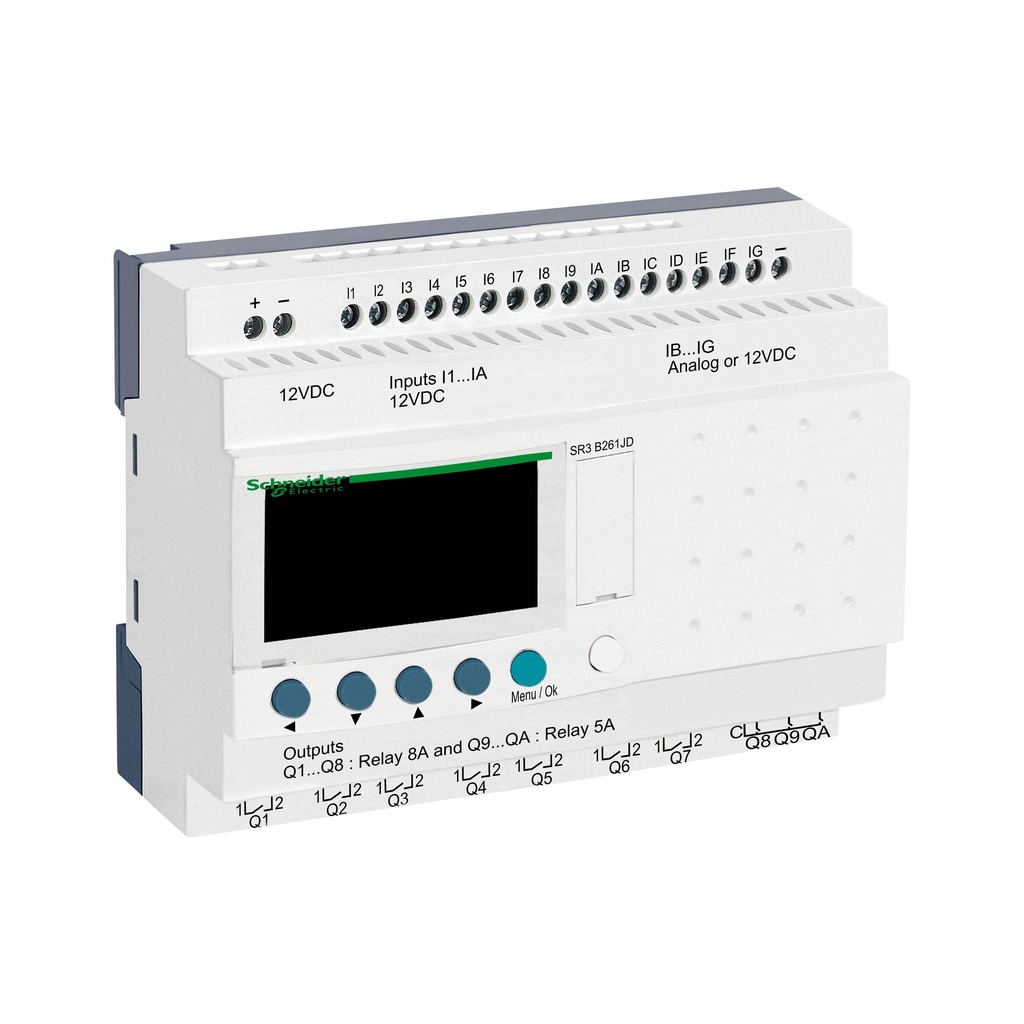

The SR3B261JD is an automation component in the the Schneider Electric automation portfolio range from Schneider Electric. Zelio Logic Modular Smart Relay, 26 I/O, 12V DC.
Application & Technical Notes
As a the schneider electric automation portfolio device, the SR3B261JD is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It performs a defined automation function within the control system and is selected to match the installed Schneider Electric platform.
Key published characteristics include a 12V DC (10.4-14.4V) rating, an operating temperature range of -20 to 55 °C. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Respect the published operating temperature window (-20 to 55 °C); do not exceed it during commissioning or in enclosed panels without airflow. Inspect terminals and connectors for corrosion or looseness, and confirm the module seats correctly in its carrier. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the SR3B261JD, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm mechanical and electrical compatibility with your the Schneider Electric automation portfolio installation and the intended function. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the SR3B261JD?
The SR3B261JD is a the schneider electric automation portfolio device in the the Schneider Electric automation portfolio range from Schneider Electric. It belongs to the the Schneider Electric automation portfolio automation family.
What are the key technical ratings of the SR3B261JD?
Its published highlights include 12V DC (10.4-14.4V), operating temperature -20 to 55 °C. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the SR3B261JD mounted or installed?
Installation follows the standard the Schneider Electric automation portfolio mounting practice for this device class; refer to the installation manual for exact dimensions and torque.
Is the SR3B261JD compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the SR3B261JD?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
Zelio Logic Modular Smart Relay, 26 I/O, 12V DC
Electrical Specifications
| Number of I/O points | 26 |
|---|---|
| Digital inputs | 16 (6 configurable as analog inputs, 12V DC, IEC 61131-2 Type 1) |
| Digital outputs | 10 relay |
| Relay output current | 5 A per output |
| Supply voltage | 12V DC (10.4-14.4V) |
| Clock | Integrated real-time clock |
| Display | LCD with navigation buttons |
| Communication | Via extension modules |
| Program memory | 240 lines ladder / 500 blocks FBD |
Environmental
| Operating temperature | -20 to 55 °C |
|---|
Physical
| Mounting | 35 mm DIN rail |
|---|---|
| Dimensions (H×W×D) | 90 × 124.6 × 59.5 mm |
| Weight | 0.30 kg |
| Mechanical life (relay output) | 10,000,000 cycles |
| Electrical life (relay output) | 500,000 cycles (AC-12, 230V 1.5A, IEC 60947-5-1) |
Lifecycle
| Lifecycle | Active (in production, Zelio Logic range) (Last verified: 2026-09) |
|---|
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
