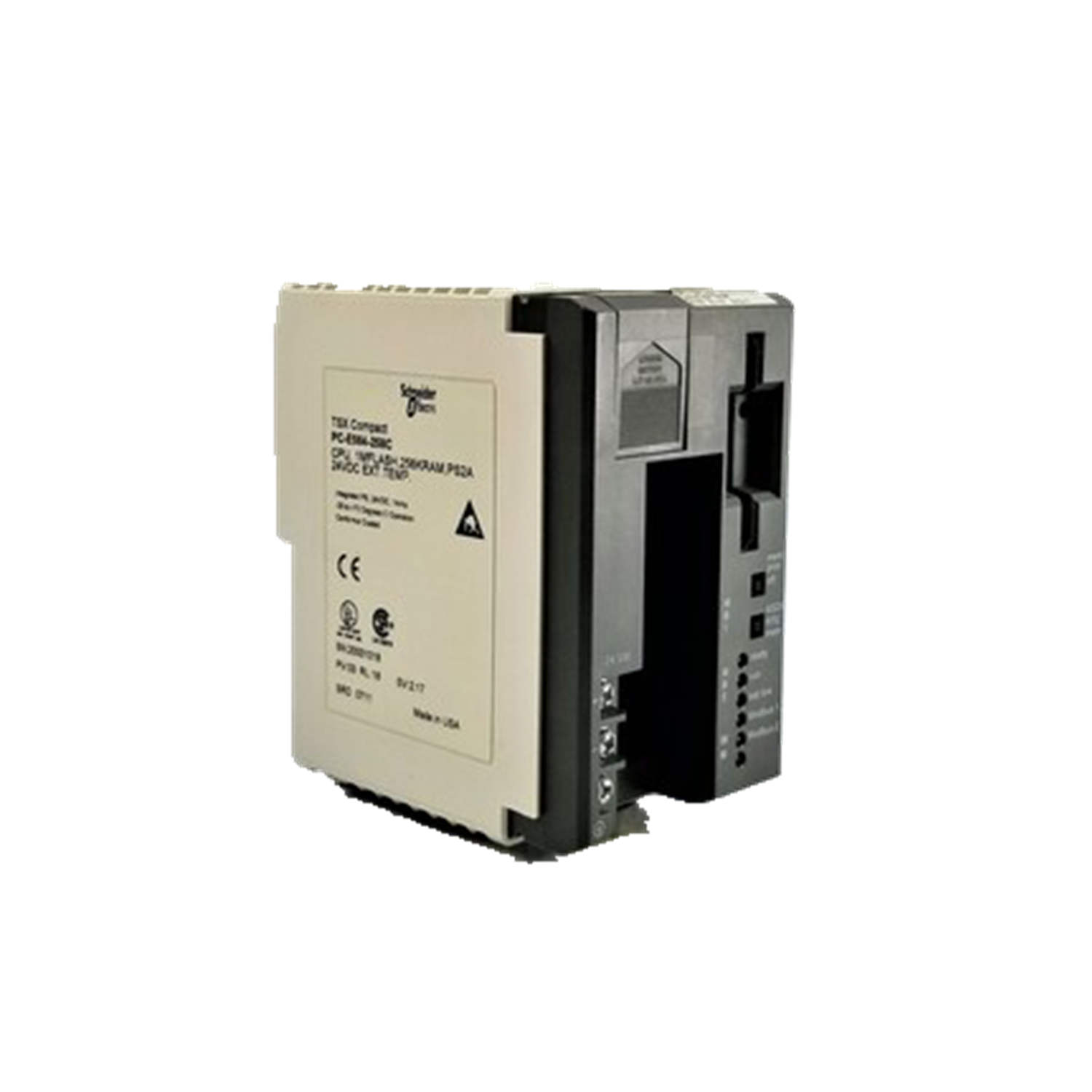

PC-E984-285C
Schneider Electric
Overview
The PC-E984-285C is a Compact Controller in the Modicon range from Schneider Electric. It executes control logic for the Schneider Electric automation portfolio architectures and operates from a 24 VDC supply.
Application & Technical Notes
As a compact controller, the PC-E984-285C is intended for deployment in panel-based control cabinets and machine enclosures where the Schneider Electric automation portfolio equipment is installed. It hosts the application program, executes the control cycle and orchestrates I/O scanning, communication and diagnostics for the station.
Key published characteristics include a 24 VDC rating, din rail mounting. These values should be confirmed against the current manufacturer datasheet before final selection, as options and suffixes vary by configuration.
Maintenance & Diagnostics
Back up the application program and parameter set before any firmware or hardware change; verify the memory/real-time-clock battery where fitted and replace on schedule. Monitor the module health LED and controller diagnostics; plan spares for critical stations to minimise downtime. Always de-energise the circuit and follow lock-out/tag-out before handling; refer to the official instruction bulletin for service procedures.
Sourcing & Procurement
When sourcing the PC-E984-285C, distinguish three supply tiers: (1) genuine Schneider Electric stock from an authorised distributor; (2) compatible equivalents or surplus/NOS (new-old-stock) from third parties; (3) alternative parts offering equivalent function. Genuine supply carries the full warranty and traceability; compatible or alternative items may be cheaper but should be validated for form, fit, firmware and certification before use in a live system. PLCXpert publishes this page as an independent reference and does not sell the part — verify every claim with the manufacturer or your distributor.
Confirm the CPU matches your the Schneider Electric automation portfolio architecture, memory size, firmware revision and any required option/communication modules. Lead times and pricing vary by region and lifecycle status; obtain a current quote from an authorised channel rather than relying on stale listings.
Frequently Asked Questions
What is the PC-E984-285C?
The PC-E984-285C is a compact controller in the Modicon range from Schneider Electric. It is described by the manufacturer as: Compact Controller.
What are the key technical ratings of the PC-E984-285C?
Its published highlights include 24 VDC. Full electrical, mechanical and environmental limits are listed in the manufacturer datasheet and should be confirmed for your exact suffix.
How is the PC-E984-285C mounted or installed?
It uses DIN Rail. Follow the manufacturer mounting and torque guidance and observe clearance, grounding and ventilation requirements.
Is the PC-E984-285C compatible with my controller?
It is part of the the Schneider Electric automation portfolio family. Confirm the specific rack, firmware revision, slot rules and configuration with the controller documentation before purchase, as compatibility depends on the exact system build.
What should I check before buying the PC-E984-285C?
Verify the genuine part number and suffix, confirm it matches your platform and ratings, check the current lifecycle/availability status, and buy from an authorised distributor. PLCXpert provides this reference only and does not sell the component.
Specifications
The PC-E984-285C by Schneider Electric is a compact controller designed for flexible application in various automation environments. It features a logic memory capacity of 32 K and a data memory of 64 K, accommodating diverse control algorithms and data management.
Description
| Note | The Schneider Electric PC-E984-285C is a compact controller designed to serve in various automation control tasks. This unit boasts a logic memory capacity of 32 K, making it suitable for implementing a wide range of control functions. In addition to that, it features 64 K of data memory, facilitating standard data operations for many industrial applications. The controller is designed to work at a clock frequency of 12 MHz, which supports efficient processing speeds. Capable of handling 256 digital I/O, it offers considerable flexibility, making it suitable for applications requiring multiple input and output connections. It operates on a 24 VDC input voltage, which is a standard requirement in many automation systems. Operating under a temperature range of 0°C to 55°C, the PC-E984-285C can function in various environments, maintaining reliability in specified conditions. Communication with other devices is managed through its PROFIBUS-DP interface, which is widely recognized in the industry for reliable data transfer. Designed for DIN rail installation, the weight of the unit is just 0.29 kg, which aids in simplifying the mounting process. Protection against environmental factors is rated at IP20, ensuring that it is safeguarded against solid objects, such as dust, and providing adequate protection against accidental contact. Lastly, it operates effectively in settings with humidity levels from 5% to 95% relative humidity, allowing it to be used in different operational environments. |
|---|---|
| Category | 18131-COMPACT 984 CONTROLLERS |
| Discount Schedule | PC19 GTIN 3595860001542 |
| Returnability | No |
| Country of origin | DE |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.1 in (10.5 cm) |
| Package 1 Width | 7.09 in (18 cm) |
| Package 1 Length | 10.4 in (26.5 cm) |
| Package weight(Lbs) | 29.7 oz (841 g) |
Reproduced from the manufacturer's published data. Values marked "Not available" are absent from the source document.
